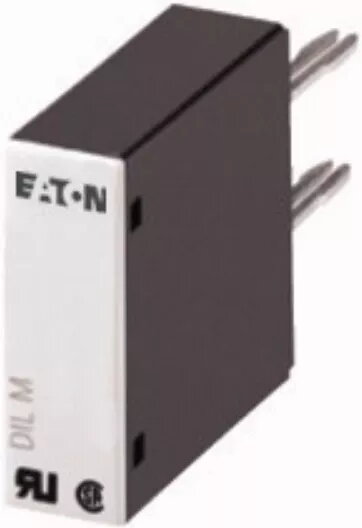

Eaton DILM12-XSPV240 Varistor Suppressor for DILM Contactors, 130-240V AC

The Eaton DILM12-XSPV240 is a high-quality varistor suppressor module engineered specifically for integration with Eaton DILM series contactors. This essential component is designed to manage electrical transients by suppressing voltage spikes that occur during the switching of contactor coils. By stabilizing the electrical environment within industrial control panels, this module helps prevent premature wear and failure of sensitive control equipment, ensuring consistent performance in demanding electrical systems.

Advantages

The primary benefit of the Eaton DILM12-XSPV240 is its ability to significantly extend the operational lifespan of contactor coils by mitigating the damaging effects of back-EMF. Its robust construction allows it to function reliably across a wide temperature range, making it suitable for various industrial environments. The compact design ensures easy installation directly onto the contactor, saving valuable space in control cabinets while providing critical protection against voltage surges that could otherwise disrupt system logic or damage connected electronic components.

Suitable for

• Industrial automation control systems
• Motor control centers
• Switchgear assemblies
• HVAC control panels
• Manufacturing machinery and equipment

When it may not be suitable

This suppressor module is specifically calibrated for use with Eaton DILM series contactors within the specified voltage range of 130-240V AC. It is not compatible with DC-operated contactors or systems operating outside of the defined voltage parameters. Attempting to use this device with incompatible hardware may result in ineffective surge suppression or damage to the module.

Key specifications

• Voltage range: 130-240V AC
• Compatibility: Eaton DILM series contactors
• Operating temperature: -25 to 60 °C
• Protection type: Varistor surge suppression

How to use

Installation of the Eaton DILM12-XSPV240 is straightforward and designed for quick integration. The module should be snapped onto the designated mounting position on the front or side of the compatible DILM contactor. Ensure that the power supply to the control circuit is disconnected before attempting installation to prevent accidental contact with live terminals. Once securely attached, the module functions automatically without the need for additional configuration or maintenance.

What to consider before purchase

• Verify that your contactor model belongs to the Eaton DILM series.
• Confirm that your control circuit voltage falls within the 130-240V AC range.
• Check the available physical space on the contactor for module mounting.
• Ensure the ambient operating temperature of your installation site is within the -25 to 60 °C range.

Usage recommendations

Always ensure that the electrical circuit is de-energized before installing or removing the suppressor module. Regularly inspect the module during routine maintenance cycles to ensure it remains securely seated and free from physical damage or environmental debris.
