Short description

The Eaton 9SX Extended Battery Module is a tower-form UPS with double-conversion topology. It features a sealed lead-acid battery with a capacity of 9 Ah and a voltage of 36 V. Certified by IEC/EN 62040-1, UL 1778, and CE, it ensures reliable power backup. Dimensions: 160 mm width, 387 mm depth, 252 mm height. Ideal for critical applications requiring uninterrupted power supply.

Available for order: 7 pcs.

Warranty: 2 Years

SKU: 1628630

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

23.07.2026 {{selectedOffer.courierDeliveryString}}

From 16.47 € (Weight: 21.40 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Locker LV

23.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

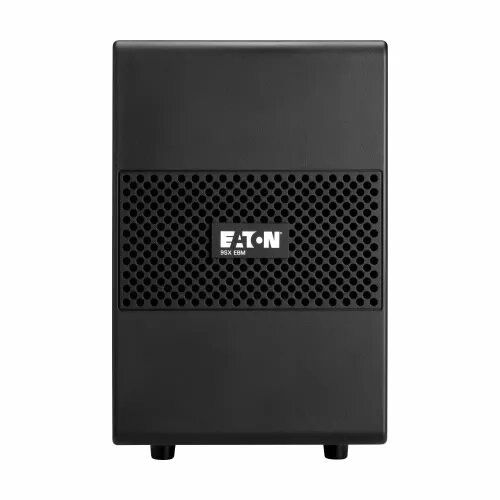

The Extended Battery Module Eaton 9SX provides additional runtime for Eaton 9SX tower UPS systems. It uses a sealed lead-acid (VRLA) battery pack with a nominal voltage of 36 V and a capacity of 9 Ah, housed in a black tower enclosure sized for rack or standalone placement. Certified to IEC/EN 62040-1 and UL 1778 and bearing CE marking, the module is designed to deliver predictable, safe backup power for critical loads and to extend safe shutdown time during mains outages.

Advantages

The Eaton 9SX Extended Battery Module offers reliable sealed lead-acid battery technology that requires minimal maintenance and provides stable performance over its service life. Its compact tower form factor and a moderate weight of 19 kg make it easy to position alongside compatible UPS units. Compliance with international safety and performance standards ensures consistent operation and smoother integration into existing Eaton 9SX installations.

Suitable for

Extending runtime for servers and network equipment
Backup power for telecommunications and small data closets
Protecting point-of-sale systems and critical workstations
Adding extended autonomy to tower UPS configurations in offices or industrial sites

Key specifications

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 9 Ah
Nominal battery voltage: 36 V
Form factor: Tower module for Eaton 9SX systems
Dimensions: 160 mm (W) x 387 mm (D) x 252 mm (H)
Weight: 19 kg
Product colour: Black
Safety and performance: Certified to IEC/EN 62040-1 and UL 1778; CE marked

How to use

Install the Extended Battery Module adjacent to a compatible Eaton 9SX UPS according to the UPS installation guide. Ensure the UPS is powered down or in maintenance mode as described by the manufacturer before connecting the battery module. Connect the module using the specified interconnect cables or mounting accessories that match the Eaton 9SX model; secure all connections and verify correct seating. After connection, power on the UPS and confirm that the UPS management interface recognizes the extended battery module and that runtime calculations update accordingly.

Usage recommendations

Place the battery module in a well-ventilated, temperature-controlled environment away from direct heat sources. Follow manufacturer guidance for initial charging, periodic testing, and end-of-life replacement. Do not attempt to open or service the sealed battery; dispose of or recycle according to local regulations for lead-acid batteries.

Specifications

Battery technology:: Sealed Lead Acid (VRLA)
Weight:: 19 kg
Product colour:: Black

All features

Rack mounting:: No
Manual:: Yes
UPS topology:: Double-conversion (Online)
Rack mount kit:: Yes

Certificates

Certification:: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC

Power

Number of batteries supported:: 6

Operational conditions

Operating temperature (T-T):: 0 - 40

Features

Number of battery cells:: 6
Product colour:: Black
Hot-swap battery:: Yes
Battery voltage:: 36 V
Battery capacity:: 9 Ah

Technical details

Compatible products:: 9SX 1000

Other features

Form factor:: Tower

Battery

Battery technology:: Sealed Lead Acid (VRLA)

Weight & dimensions

Weight:: 19 kg
Height:: 252 mm
Width:: 160 mm
Depth:: 387 mm
