Eaton SRBOLTDOWN SmartRack Bolt-Down Kit for Server Rack Stabilization

The Eaton SRBOLTDOWN SmartRack Bolt-Down Kit is a professional-grade mounting solution engineered to anchor server rack stabilizing brackets or plates directly to the facility floor. Designed for high-density data centers and server rooms, this kit provides a robust foundation for heavy-duty server cabinets, ensuring they remain firmly in place to prevent accidental tipping or shifting. By securing your infrastructure to the concrete floor, this kit enhances the overall safety and structural integrity of your server environment.

Advantages

This bolt-down kit offers exceptional stability for mission-critical equipment by creating a permanent connection between the rack and the floor surface. The use of high-quality components ensures that the installation is durable and capable of withstanding the weight and operational demands of heavy server cabinets. By providing a secure anchor point, the kit significantly reduces the risk of equipment instability, which is essential for maintaining a safe working environment in professional IT facilities.

Suitable for

• Securing server cabinets to concrete floors
• Stabilizing heavy-duty network racks
• Data center infrastructure safety upgrades
• Preventing rack movement in seismic-prone areas

When it may not be suitable

This kit is specifically designed for installation on concrete flooring and is not suitable for use on raised floors, wooden surfaces, or thin floor coverings without appropriate structural reinforcement. It is intended for permanent installations and may not be appropriate for environments where server racks need to be frequently relocated or reconfigured.

Key specifications

• Material: Aluminium
• Compatibility: SmartRack cabinets and racks
• Installation surface: Concrete floor

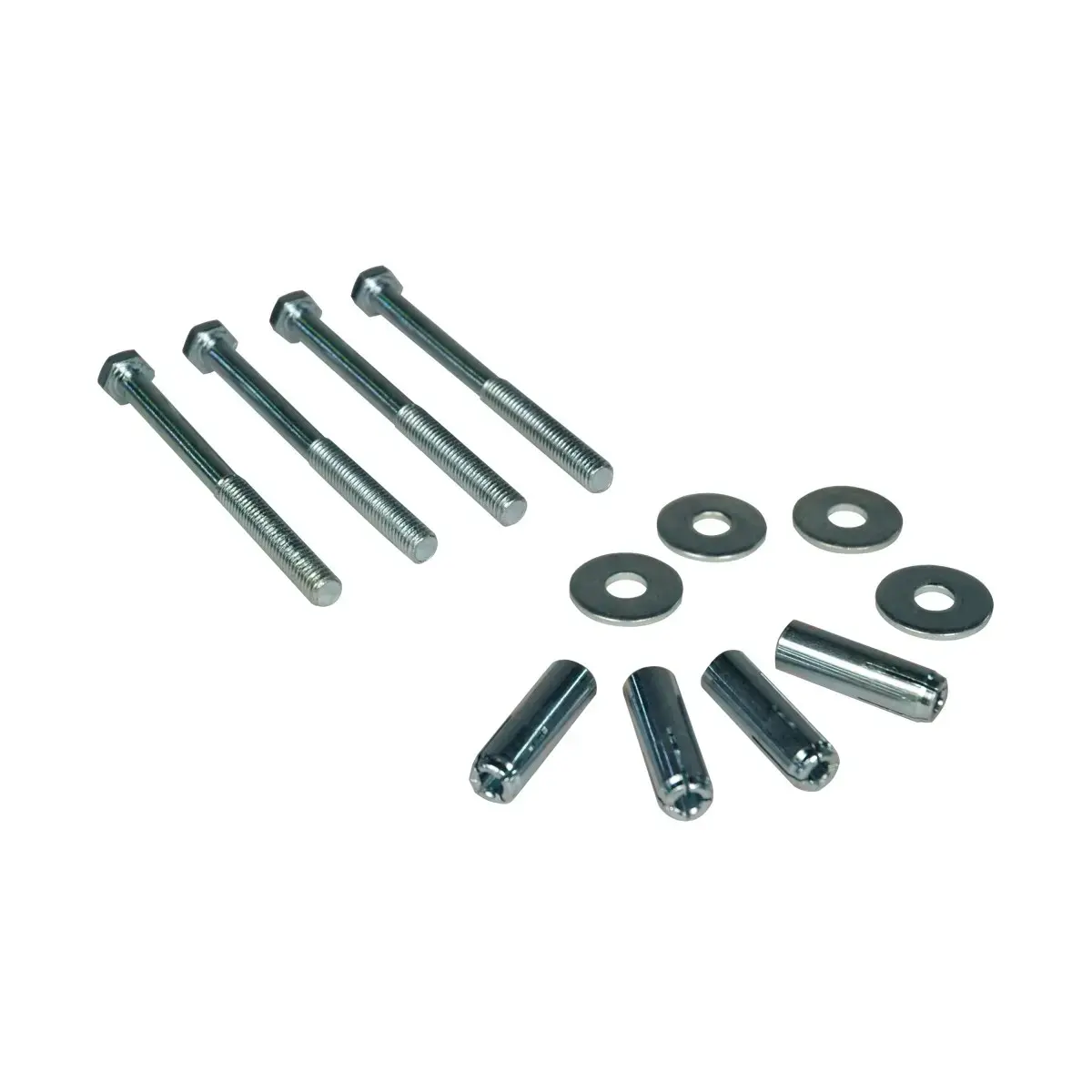

• Included components: 4 concrete inserts, 4 bolts, 4 fender washers

How to use

To install the kit, first mark the desired anchor locations on the concrete floor. Use a 1/2-inch concrete drill to create holes with a depth of 4.5 to 4.75 inches. Once the holes are prepared, clear any debris and tap the concrete anchors into place. Thread the bolt into the anchor partially, then tap the bolt head with a hammer until the anchor is fully seated at the bottom of the hole. Finally, tighten the bolt securely to lock the stabilizing bracket or plate in position.

What to consider before purchase

• Verify that your facility floor is made of solid concrete
• Ensure you have access to a 1/2-inch concrete drill
• Check the base dimensions of your specific server rack model
• Confirm that the installation location does not interfere with under-floor cabling

Usage recommendations

Always wear appropriate personal protective equipment, such as safety glasses and gloves, when drilling into concrete. Ensure that the floor is free of electrical conduits or plumbing lines before beginning the drilling process to avoid damage to facility infrastructure.
