Wall-mount Rack Enclosure Eaton SRW15US — 15U low-profile switch-depth, hinged back, 102.1 kg capacity

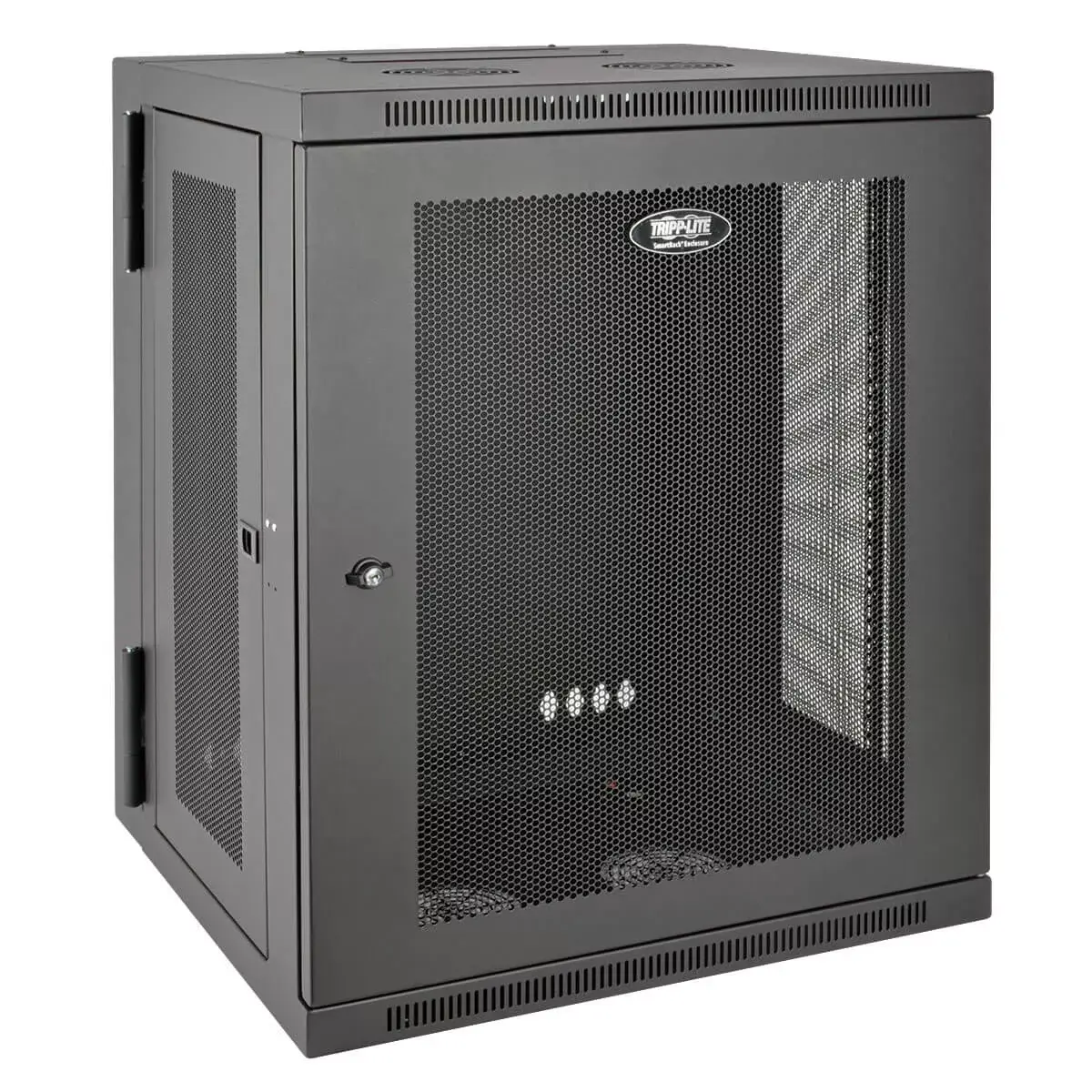

Eaton SRW15US is a 15U low-profile, switch-depth wall-mount rack enclosure designed to house 19-inch EIA-standard network equipment where floor space is limited. Constructed from heavy-duty steel with a black powder-coated finish, the cabinet supports full-sized network switches, patch panels and related IT gear while remaining compact. The cabinet ships fully assembled, features a hinged rear panel for easy access, multiple vented panels for passive airflow and locking doors and side panels for physical security. Built-in top and bottom cable openings and reversible front doors increase installation flexibility.

Advantages

The SRW15US offers a space-saving half-height form factor with switch-depth internal dimensions that accommodate network switches up to the specified depth. A robust hinge mechanism allows the enclosure to swing away from the wall to simplify cabling and maintenance tasks. Vented panels on the front, top, bottom and removable sides enable airflow without active cooling modifications. Lockable doors and side panels provide protection against tampering while numbered rails and a mix of square and 12-24 threaded mounting holes speed up equipment mounting. The unit arrives fully assembled for immediate installation.

Suitable for

• Network wiring closets and telecom cabinets
• Edge installations and branch office network closets
• Retail locations, classrooms and compact server rooms
• Mounting of switches, patch panels and small UPS units

Key specifications

• Form factor: 15U low-profile, wall-mount enclosure
• Compatible rack standard: 19-inch EIA
• Internal depth: designed for switch-depth equipment up to 20.5 inches (adjustable vertical rails)
• Maximum load capacity: 102.1 kg (net equipment load)
• Net weight: 33.1 kg
• Construction: heavy-duty steel with black powder-coated finish

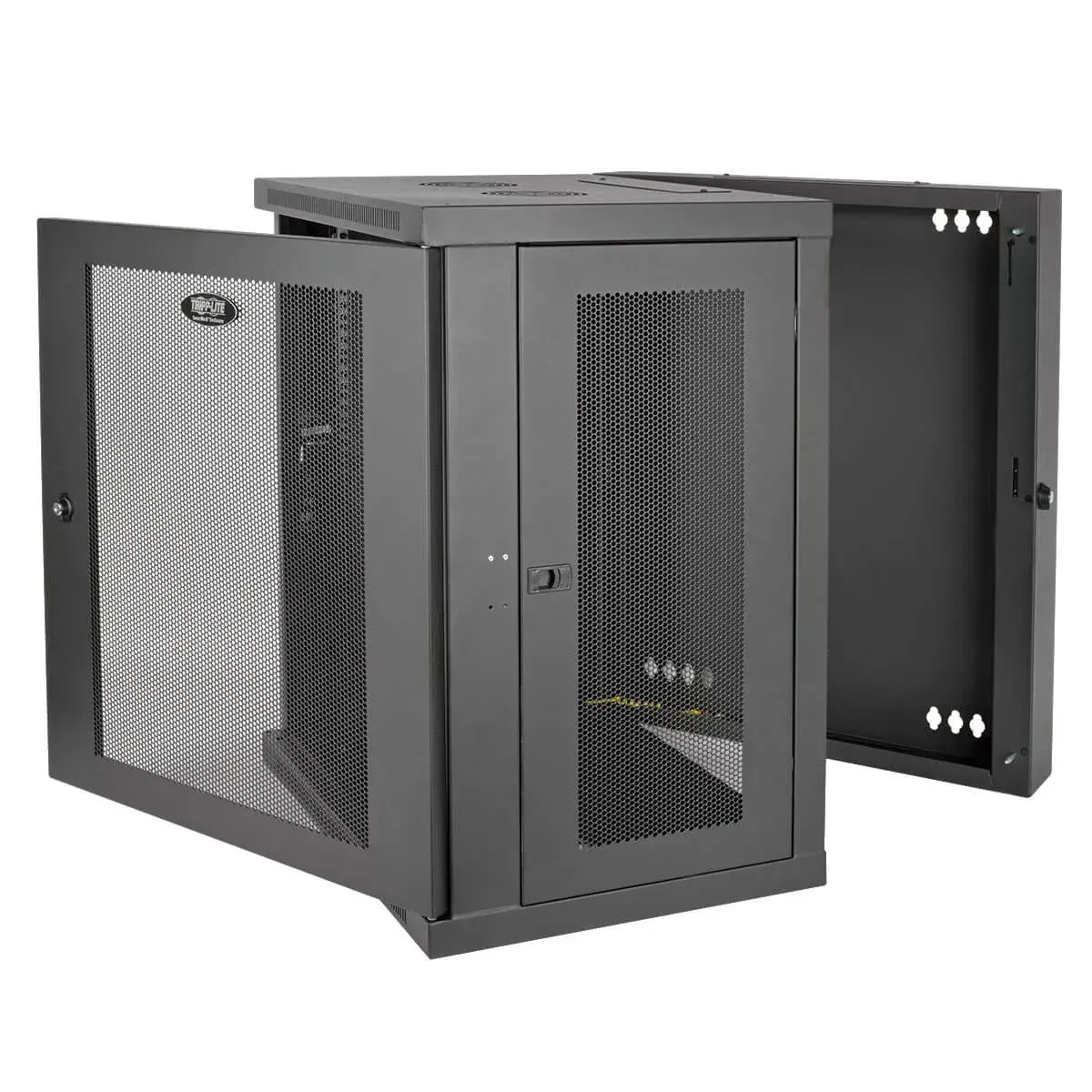

• Access: hinged rear panel that swings away from wall, reversible front door
• Ventilation: vented front, top, bottom and removable side panels
• Cable management: top and bottom cable ports for routed cabling

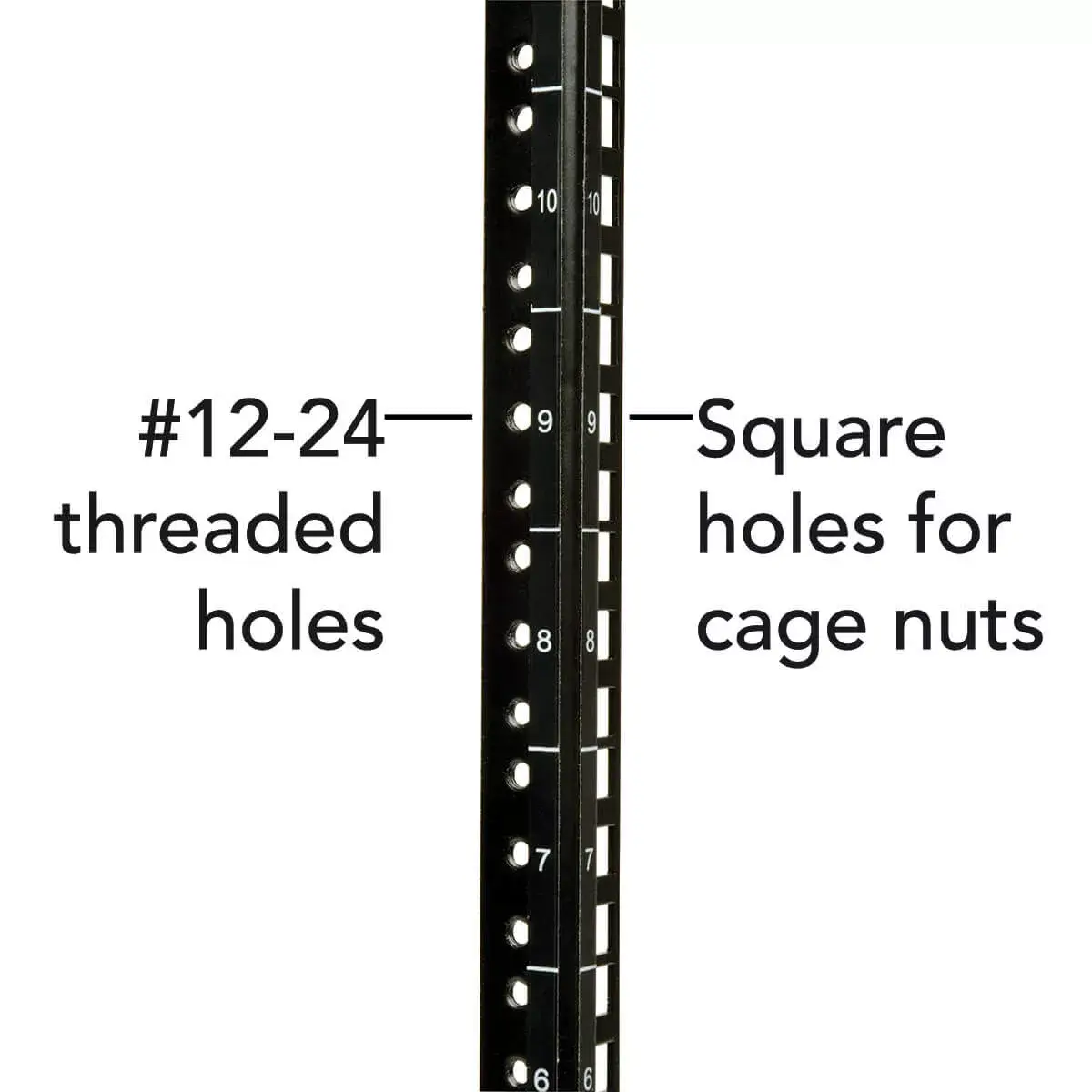

• Mounting options: square and 12-24 threaded mounting holes; numbered rack spaces

How to use

Mount the SRW15US to a suitably rated wall structure using appropriate fasteners and anchors for the wall material. Before installing equipment, adjust the vertical mounting rails in 7/8-inch increments to match the depth of your switch or panel and confirm that the cabinet swing clearance is sufficient for the hinged rear access. Route cables through the top or bottom ports and secure them internally to avoid strain on connectors. Install equipment on the numbered rack spaces using the provided or recommended hardware, and lock the front door and side panels to limit access when required.

Usage recommendations

For reliable operation, install the enclosure in a protected indoor environment with adequate ambient ventilation. Avoid exceeding the specified maximum load capacity and distribute equipment weight evenly across the rails. If active cooling is required, integrate compatible rack-mounted fans or position the cabinet where room airflow supports heat dissipation. Use the reversible door feature and swing clearance during planning to ensure convenient access for maintenance.
