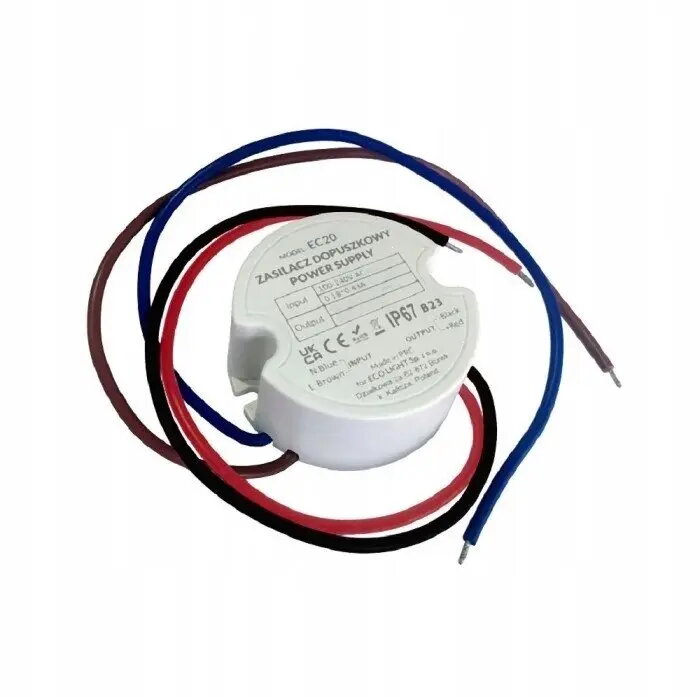

Power supply Eco Light EC20818 24V 0.8A 20W IP67 for junction box Ø60

The Eco Light EC20818 mains power supply delivers a stable 24V DC output at 0.8A (20W) and is designed for installation inside a Ø60 junction box. Housed in a hardened enclosure with an IP67 ingress protection rating, this unit is suitable for outdoor and damp environments where protection against dust and temporary immersion is required. It is intended to power low-voltage LED strips, small LED fixtures and other compact electronic loads that require a regulated 24V source.

Advantages

This power supply combines compact dimensions for junction box mounting with IP67 protection, allowing mounting in exposed or wet locations. The device provides a regulated 24V DC output with sufficient current for small lighting runs, while the sealed enclosure offers increased resistance to dust and moisture. Its straightforward electrical characteristics make it compatible with a wide range of low-voltage LED products and small electronic devices.

Suitable for

• Powering 24V LED strips in outdoor or damp installations where a Ø60 junction box is available
• Supplying small low-voltage fixtures and accent lighting in gardens, façades, balconies or terraces
• Providing a compact 24V source for small electronic loads in protected enclosures

When it may not be suitable

This unit is rated for a maximum continuous output of 0.8A (20W); it is not suitable for larger lighting installations or loads that require higher current or power. It is designed specifically for installation inside a Ø60 junction box—installing it in incompatible enclosures may compromise cooling or sealing. For permanent underwater installations or applications demanding higher ingress protection under pressure, consult a specialist product designed for those conditions.

Key specifications

• Output voltage: 24V DC
• Maximum output current: 0.8A
• Maximum output power: 20W
• Ingress protection: IP67 (suitable for temporary immersion and dust-tight environments)
• Intended mounting: inside a Ø60 junction box
• Enclosure: hardened, sealed housing for damp/outdoor use

How to use

Install the power supply inside a compatible Ø60 junction box following local electrical codes and safety regulations. Ensure the input mains is disconnected before wiring. Connect the mains live, neutral and protective earth conductors to the input terminals according to the wiring diagram supplied by the manufacturer, and connect the 24V DC output to the low-voltage load, observing polarity. Seal cable entry points and secure the junction box to maintain IP67 integrity. After wiring, restore mains power and verify the output voltage and load operation with appropriate measurement tools.

What to consider before purchase

• Confirm the total load current does not exceed 0.8A (20W) including any startup or inrush currents
• Verify that a Ø60 junction box is available and suitable for the intended installation location
• Check that IP67 protection is adequate for the specific outdoor/damp conditions expected
• Ensure wiring, cable glands and installation practice maintain the sealed enclosure to preserve ingress protection

Usage recommendations

Use the Eco Light 24V 0.8A power supply for short runs of 24V LED strip or small fixtures in outdoor or damp locations where a compact, sealed power source is required. Keep the total load below rated limits, install in the proper Ø60 junction box, and follow local installation rules to ensure long-term, reliable operation.
