EFB Elektronik 29417.1 D-Sub 9-pin Connector Housing Grey

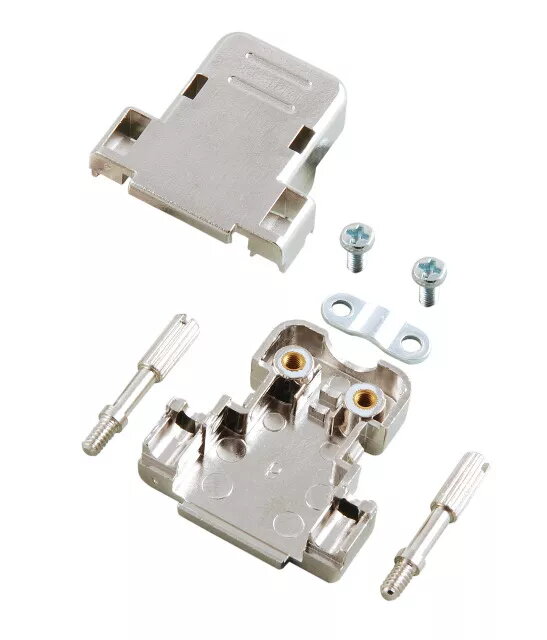

The EFB Elektronik 29417.1 D-Sub 9-pin connector housing is a robust solution designed for the secure termination and protection of 9-pin D-Sub connections. Engineered for durability, this housing provides a reliable enclosure that shields internal wiring from mechanical stress and environmental factors, ensuring consistent signal integrity in various electronic systems.

Advantages

This connector housing stands out due to its high-quality plastic construction, which offers a balance of lightweight design and structural strength. The grey finish provides a professional appearance suitable for industrial and office environments. Its design facilitates easy assembly, allowing for efficient cable management and secure strain relief, which is essential for maintaining long-term connectivity in demanding applications.

Suitable for

• Serial data communication interfaces
• Industrial automation and control systems
• Custom cable assembly projects
• Computer peripheral connections
• Laboratory and testing equipment

When it may not be suitable

This housing is specifically designed for 9-pin D-Sub connectors and will not fit other connector sizes or types. It is also not intended for use in high-vibration or extreme outdoor environments where specialized ruggedized or waterproof enclosures are required.

Key specifications

• Connector type: D-Sub 9-pin
• Housing material: Durable plastic
• Color: Grey
• Cable compatibility: 6 mm outer diameter

How to use

To use the housing, first prepare your cable by stripping the outer insulation to expose the wires. Solder or crimp the wires onto the D-Sub connector pins according to your wiring diagram. Once the connection is secure, place the connector into the housing halves. Align the internal strain relief mechanism with the cable jacket and snap or screw the housing sections together to ensure a tight, protective fit.

What to consider before purchase

• Verify the pin count of your D-Sub connector matches the 9-pin specification.
• Ensure your cable outer diameter is exactly 6 mm for an optimal fit.
• Check if your specific application requires shielded metalized housings or if standard plastic is sufficient.

Usage recommendations

For the best results, ensure that the cable is properly secured within the strain relief clamp to prevent tension on the solder joints. Always test the continuity of your connections before fully closing the housing.
