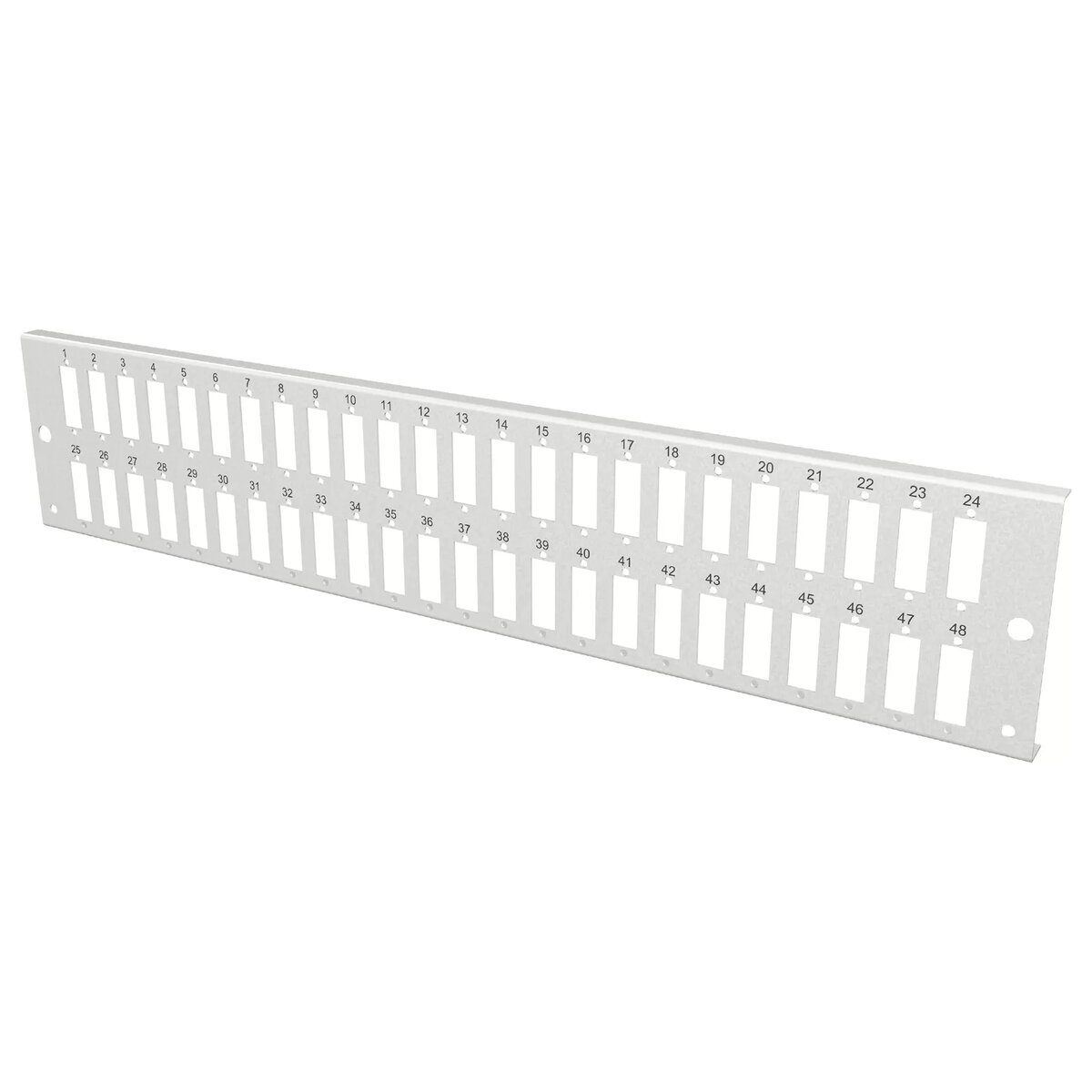

Patch panel accessory EFB Elektronik VSB2HE-FP-48SC-D — 2U rack-mounted, fiber cables, SC‑48

EFB Elektronik VSB2HE-FP-48SC-D is a 2U rack-mounted patch panel accessory designed for fiber cabling systems. It provides a compact and organized solution for terminating and routing fiber optic connections in standard equipment racks. The unit supports 48 SC fiber ports in a 2U form factor, enabling neat cable organization and simplified access for maintenance and changes in structured network installations such as data centers, server rooms and telecom cabinets.

Advantages

The 2U design conserves rack space while accommodating 48 SC ports for high-density fiber installations. Front-access connectors simplify patching and troubleshooting without the need to remove the unit from the rack. The panel facilitates orderly cable routing and strain relief, reducing connector stress and making it easier to maintain signal integrity. Constructed for compatibility with standard rack mounting, it integrates with existing infrastructure and helps streamline fiber management processes.

Suitable for

• Data center fiber distribution and cross-connect
• Server room structured cabling
• Telecommunications closets and equipment racks
• Network access points where SC connectors are used
• Upgrades or expansions of existing fiber backbone

Key specifications

• Form factor: rack-mounted 2U
• Connector type: SC standard simplex/duplex compatibility
• Port count: 48 fiber ports
• Mounting: fits standard 19-inch equipment racks
• Front-access panel for easy patching and maintenance
• Cable management features: integrated routing and strain relief provisions

How to use

Install the patch panel into a standard 19-inch rack occupying 2U of space and secure it with appropriate rack screws. Route incoming fiber runs to the rear of the unit and terminate fibers onto SC adapters or pigtails as required by the installation method. Use the front SC ports for patch cord connections to active equipment or cross-connects. Ensure proper bend radius for all fiber cables and apply strain relief to prevent tension on terminations. Periodically inspect connector cleanliness and cable routing to maintain optimal optical performance.

Usage recommendations

For reliable performance, use compatible SC fiber connectors and maintain minimum bend radius according to fiber type. Keep connector end faces clean and protected when not in use, and document port assignments for easier future maintenance and troubleshooting.
