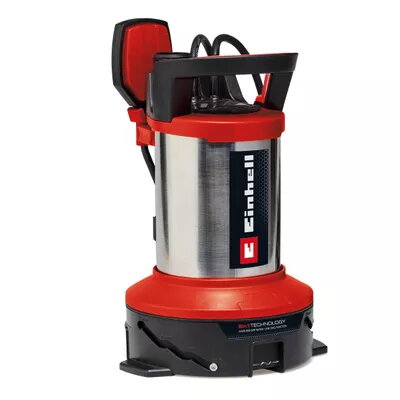

Drainage Pump Einhell GE-DP 7535 N LL ECO 750 W 18500 l/h 0.9 bar

The Einhell Dirty Water Pump GE-DP 7535 N LL ECO 2-in-1 is a versatile submersible pump designed for fast drainage of ponds, excavation pits and flooded basements. With a 750 W motor it delivers up to 18,500 litres per hour to a maximum delivery height of 9 m (0.9 bar). The pump handles clean water and wastewater containing solids up to 35 mm and features ECO-Power technology for improved energy efficiency. A robust stainless-steel housing, high-quality mechanical seal and IPX8 protection ensure suitability for demanding dewatering tasks.

Advantages

The pump offers adjustable flat suction down to a 1 mm residual water level for clear-water operation and selectable suction levels (1 mm, 15 mm, 25 mm, 35 mm) for different particle sizes. An infinitely variable float switch allows continuous operation or predefined switch-on/switch-off levels, and dry-running protection prevents motor damage. Practical details include an ergonomic carrying handle, suspension eyelet for controlled immersion, cable winder for tidy storage, quick connector and universal adapter for 25/32 mm and G1" hoses.

Suitable for

• Draining ponds and garden water features
• Removing water from excavation pits and construction sites
• Pumping out flooded basements and cellars
• Handling clear water with flat suction or wastewater with solids up to 35 mm

Key specifications

• Power: 750 W
• Max flow rate: 18,500 l/h
• Max delivery height: 9 m (0.9 bar)
• Max particle size: 35 mm (in dirty-water mode)
• Flat suction: down to 1 mm (in clear-water mode)
• Protection class: IPX8
• Cable length: 10 m
• Outlet thread: G1 1/2 (33.3 mm) and adapters for 25/32 mm

How to use

Place the pump in the water and use the suspension eyelet to lower it in a controlled manner. Select the required suction level by rotating the pump housing to one of four settings (1 mm, 15 mm, 25 mm, 35 mm). Adjust the float switch cable length to choose continuous operation or set automatic switch-on and switch-off levels. Connect the discharge hose using the quick connector and the universal adapter; the connector can rotate 360° to reduce hose strain. Ensure the pump is submerged at least 10 mm to start and keep the intake free of large debris.

Usage recommendations

Use the clear-water flat suction setting only for clean water and switch to the larger-particle settings when pumping water containing solids. Regularly inspect and clean the intake and mechanical seal to maintain performance and prolong service life.
