Water block EK Water Blocks Vector Strix

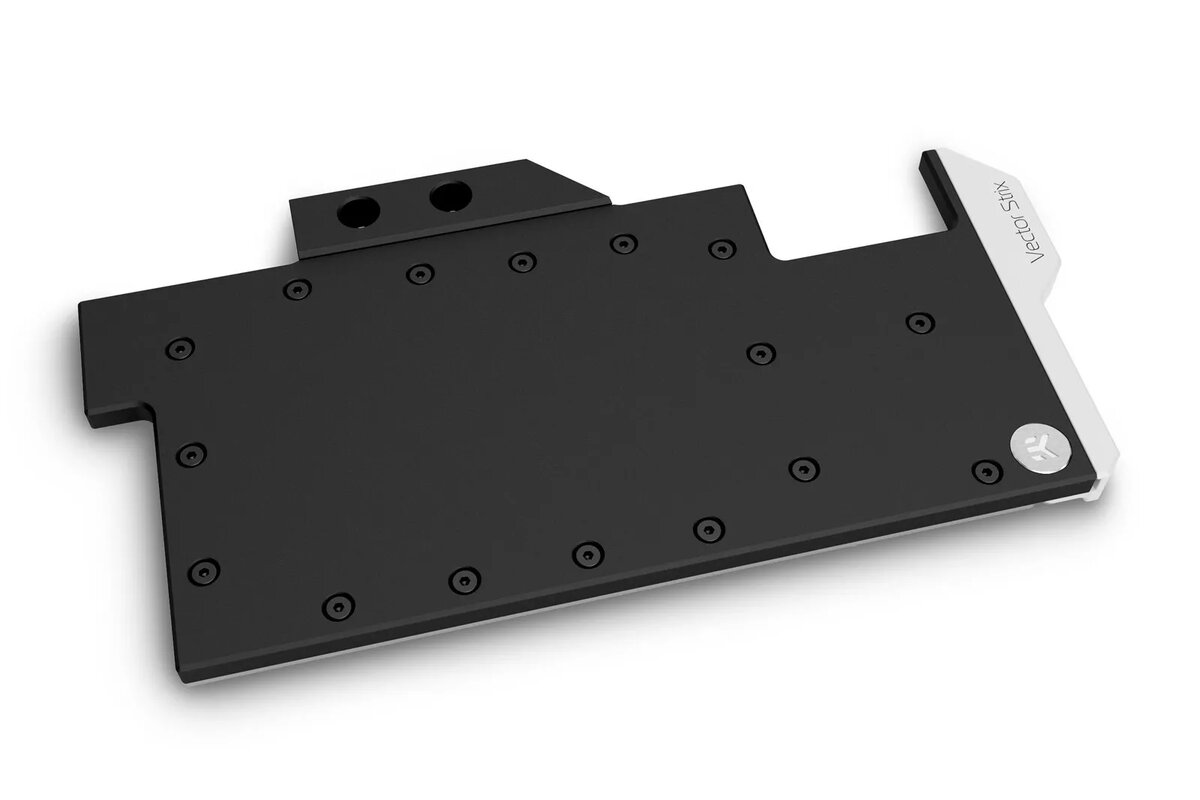

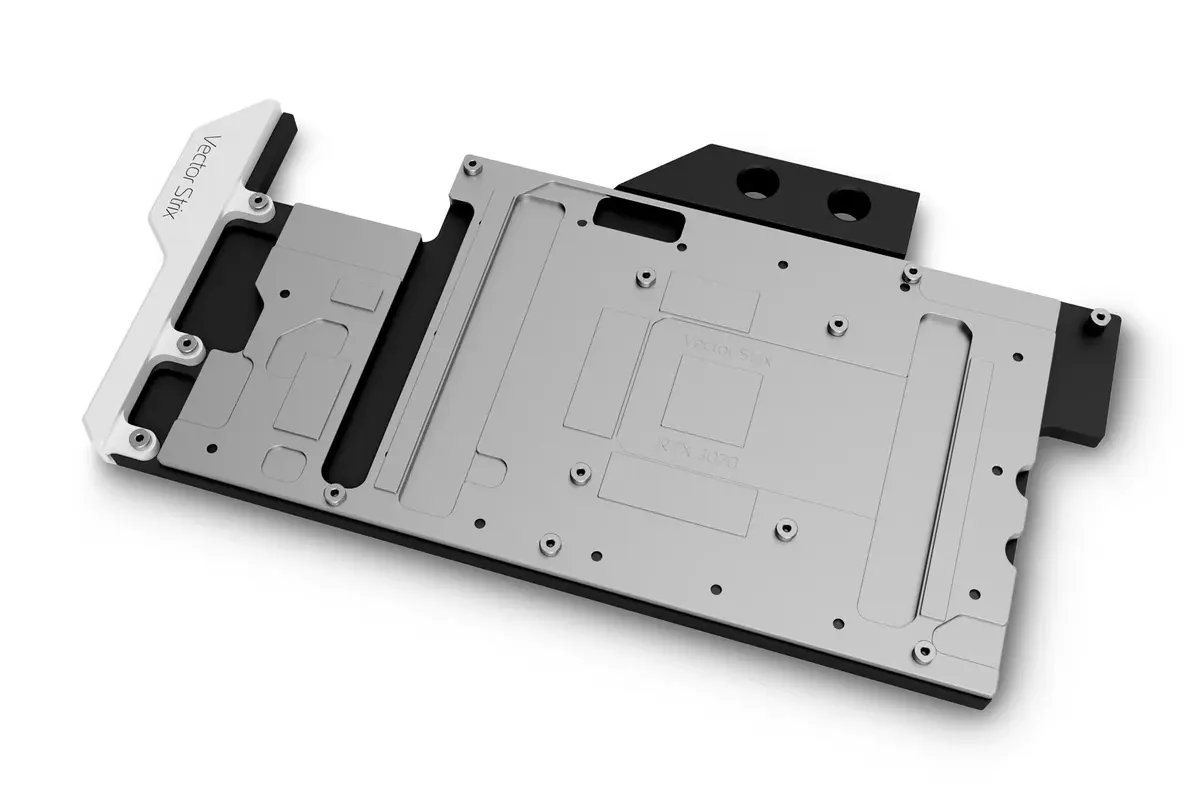

EK-Quantum Vector Strix RTX 3070 D-RGB is a 2nd generation GPU water block from the EK® Quantum Line, made for ASUS® ROG Strix RTX 3070 graphics cards based on NVIDIA® Ampere™ architecture. It actively cools the GPU die, front-mounted VRAM, MOSFETs in the VRM, PWM controller and all chokes. The block uses a CNC-machined nickel-plated copper cold plate and a durable black POM acetal top, with pre-installed brass standoffs and EPDM O-rings for secure, watertight installation. For exact compatibility verification consult the EK Cooling Configurator.

Advantages

The Vector Series employs an Open Split-Flow cooling engine with optimized jet plate and fin geometry to deliver even coolant distribution and low hydraulic restriction, allowing efficient operation even with lower-speed pumps. The second-generation design extends the copper cold plate nearly the full PCB length to cool additional components. The fin array consists of 28 microfins with 0.6 mm microchannels, balancing high thermal transfer with minimal flow resistance and reduced clogging risk. Integrated D-RGB lighting with six individually addressable LEDs supports major motherboard RGB sync standards.

Suitable for

• ASUS ROG Strix RTX 3070 graphics cards (NVIDIA Ampere)
• Custom PC liquid-cooling loops requiring low hydraulic restriction
• Users who need full-cover GPU cooling for GPU, VRAM and VRM components

Key specifications

• Compatibility: ROG Strix RTX 3070 (check EK Cooling Configurator for precise PCB variants)
• Materials: Nickel-plated electrolytic copper base, black POM acetal top
• Cooling engine: Open Split-Flow design, 28 microfins with 0.6 mm microchannels
• Lighting: 6 individually addressable D-RGB LEDs, 3-pin connector (align arrow with +5V)
• Sealing and mounting: EPDM O-rings, pre-installed brass standoffs

How to use

Prepare the graphics card by removing the original cooler and cleaning thermal surfaces. Position the EK-Quantum Vector Strix RTX 3070 D-RGB water block onto the PCB, ensuring correct alignment of mounting points and thermal pads with GPU, VRAM and VRM components. Fasten using the supplied standoffs and screws, apply appropriate thermal paste on the GPU die and confirm O-rings are seated for a watertight seal. Connect the D-RGB cable to a 3-pin addressable header on the motherboard, aligning the arrow on the connector with the +5V marking.

Usage recommendations

Verify specific PCB revision compatibility in the EK Cooling Configurator before purchase. Consider adding EK’s recommended retention backplate for improved aesthetics and passive cooling of the GPU core and PCB VRM area. Use corrosion-inhibited coolant and follow loop filling and leak-testing procedures before powering the system.
