EK Water Blocks EK-HDC Fitting 16mm G1/4

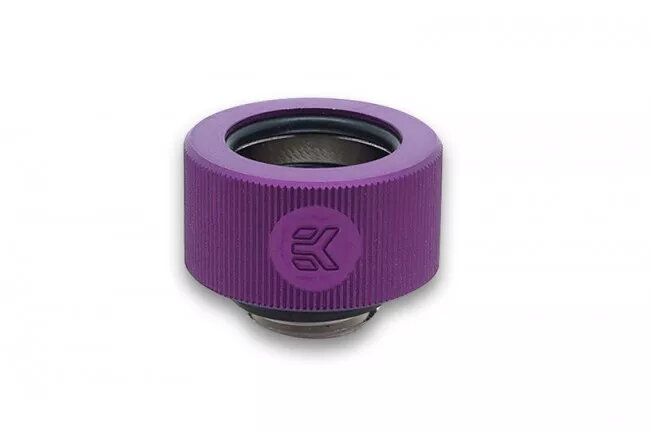

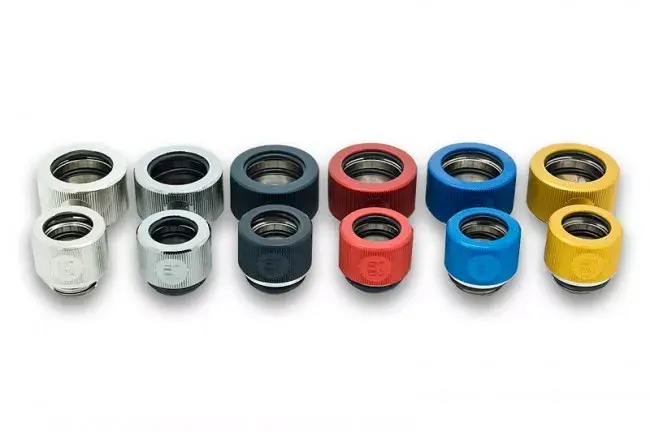

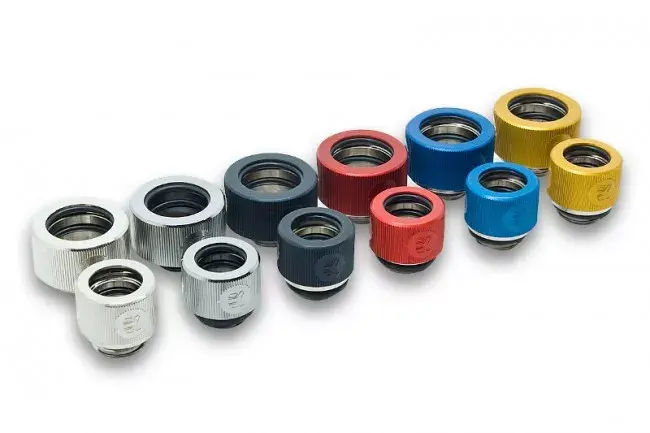

EK Water Blocks EK-HDC Fitting 16mm G1/4 is a solid-tube compression fitting engineered for use with hard tubing such as acrylic, copper, stainless steel and other compatible rigid tubes. The fitting combines a nickel-plated brass barb with an anodized aluminium compression ring and integrated O-rings to provide a reliable mechanical hold and fluid seal for 16 mm outer diameter hard tubes. Its compact dimensions (23.8 mm × 23.8 mm × 14.5 mm) and G1/4 threaded connection make it suitable for installation in tight spaces on custom liquid-cooling loops.

Advantages

This compression fitting secures solid tubing more effectively than a simple adapter by compressing a rubber gasket beneath the ring, reducing the risk of tube pullout. The brass barb offers corrosion resistance and precise CNC-machined tolerances while the anodized aluminium ring reduces weight and provides visual distinction. Integrated O-rings ensure a watertight seal without additional sealants. The design is compatible with common angled adapters for flexible routing options.

Suitable for

• Custom PC water-cooling loops using 16 mm OD hard tubing
• Installations requiring secure mechanical retention of rigid tubes
• Systems where compact G1/4 fittings are needed for tight layouts
• Pairs with EK-AF series angled adapters for directional changes

Key specifications

• Compatible tube outer diameter: 16 mm (hard tubing)
• Thread type: G1/4
• Main materials: nickel-plated brass barb, anodized aluminium compression ring, rubber O-rings
• Finish / colour: purple anodized ring with nickel-plated barb
• External dimensions: approx. 23.8 mm (width) × 23.8 mm (depth) × 14.5 mm (height)
• Designed for solid/rigid tubing such as acrylic, copper or stainless steel

How to use

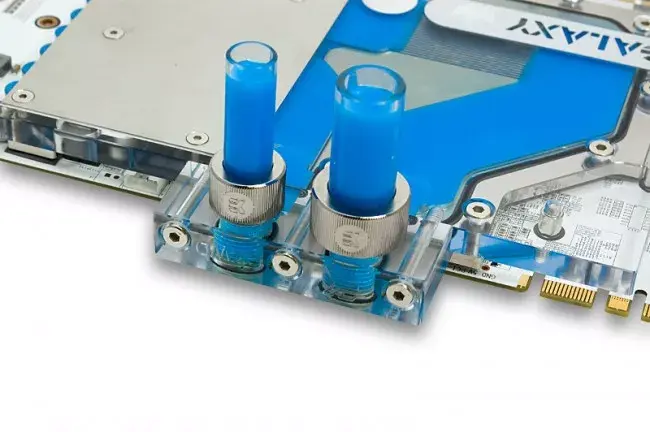

Slide the compression ring and O-ring assembly onto the end of the prepared 16 mm hard tube, then insert the tube onto the barb until it seats fully. Thread the fitting into the component or adapter with G1/4 port and tighten to a secure hand-fit; final tightening and compression of the gasket is achieved by turning the compression ring. Best practice is to use a 9 mm Allen key for controlled tightening of the ring to compress the rubber gasket evenly and avoid over-torquing. Verify sealing by performing a leak test at low pressure before restoring full system operation.

Usage recommendations

Ensure tube ends are square-cut and free of burrs before assembly. Use compatible hard tubing with a true 16 mm outer diameter and confirm O-ring positioning. When combining with angled adapters, verify thread engagement and avoid excessive bending forces on rigid tubes. Perform a controlled leak test after installation.
