Water block EK Water Blocks 3831109861813 Acetal Copper POM Black

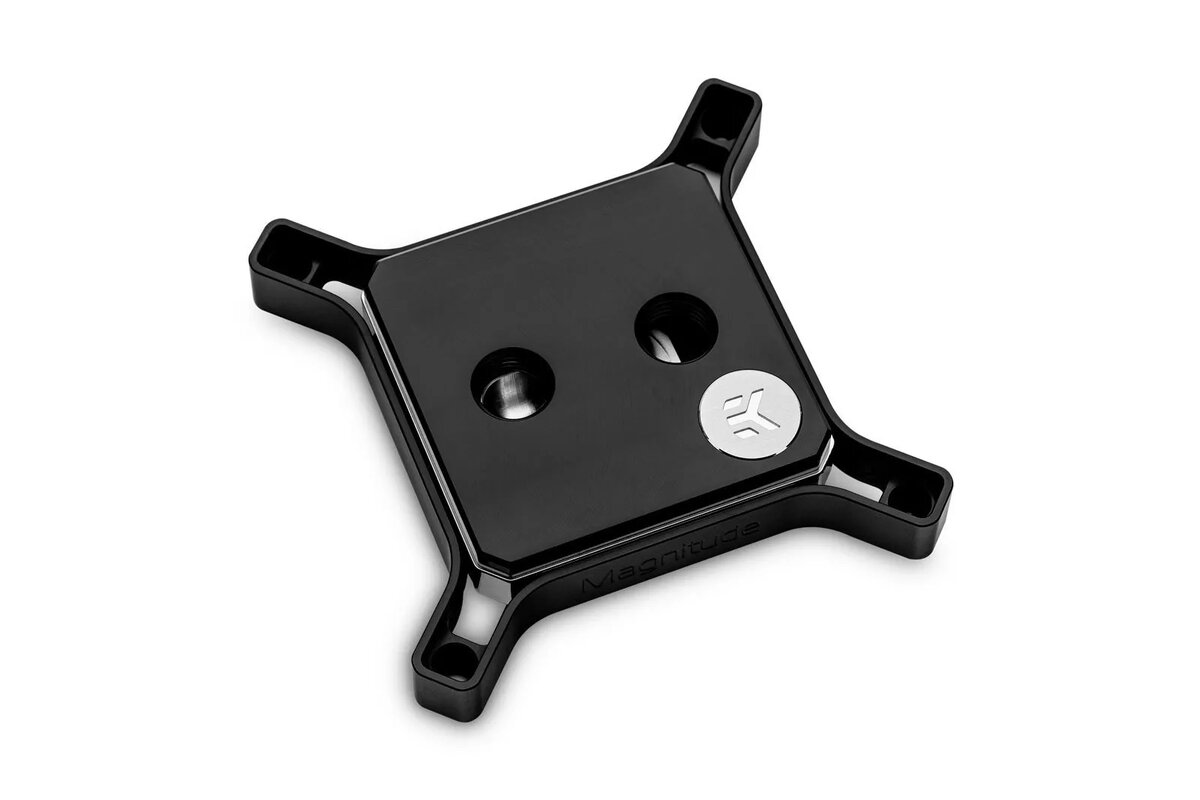

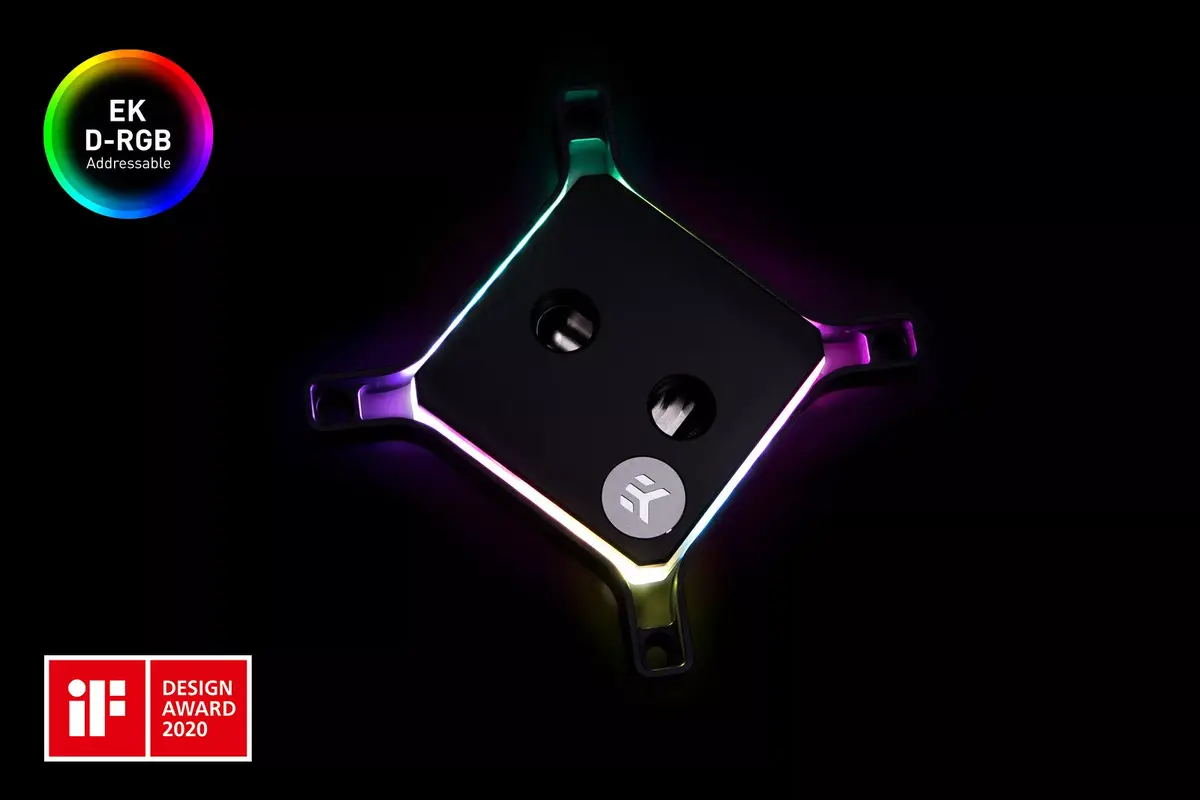

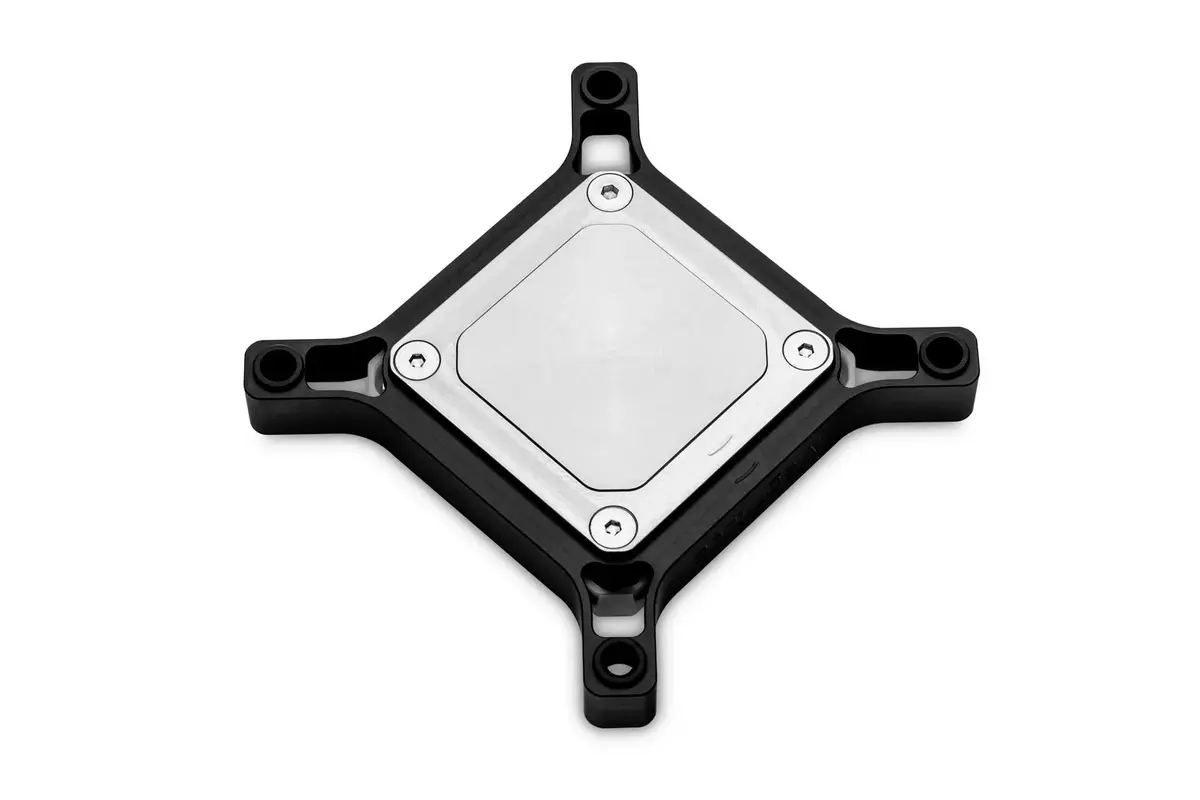

The EK-Quantum Magnitude 1700 is a bespoke CPU water block engineered for Intel® 12th Generation Core processors. It combines a nickel-plated copper cold plate and a minimalistic black POM acetal top, with a specially designed flow-distribution insert and cold plate geometry matched to the 1700 socket and die layout. The block features a CNC-machined solid brass reversible insert, an enlarged fin array with 50% more surface area in a compact footprint, and 0.40 mm microchannels with 0.26 mm microfins to maximize thermal transfer while keeping flow restriction low. The block includes an interchangeable white POM inner frame that disperses light from 30 individually addressable D-RGB LEDs (3-pin 5V digital connector), and the aesthetic frame can be swapped for color-anodized aluminum or nickel-plated brass variants sold separately.

Advantages

The Magnitude 1700 delivers high cooling performance with minimal flow restriction due to its optimized microchannel and microfin geometry and a CNC-machined brass insert that enlarges and improves the cooling engine. Its socket-specific insert directs coolant evenly over the CPU die, and the reversible insert allows swapping inlet and outlet for easier tube routing. All major components are CNC machined from solid materials for precision and durability. Integrated addressable D-RGB lighting with a white light-diffusing POM frame provides controlled illumination without compromising compatibility with compact motherboards.

Suitable for

• Custom liquid-cooled desktops with Intel LGA 1700 processors
• SFF and mITX builds requiring high cooling density in a small footprint
• Enthusiasts seeking precise coolant routing and reversible inlet/outlet options

Key specifications

• Compatibility: Intel LGA 1700 (Intel® 12th Gen)
• Cold plate material: Nickel-plated copper
• Top material: POM acetal (black)
• Insert material: CNC-machined solid brass (reversible)
• Microchannel width: 0.40 mm
• Microfin thickness: 0.26 mm
• Fin array: 50% larger surface area vs. previous generations
• LEDs: 30 individually addressable D-RGB diodes, 3-pin 5V connector (Pinout: +5V, Data, NC, Ground)

How to use

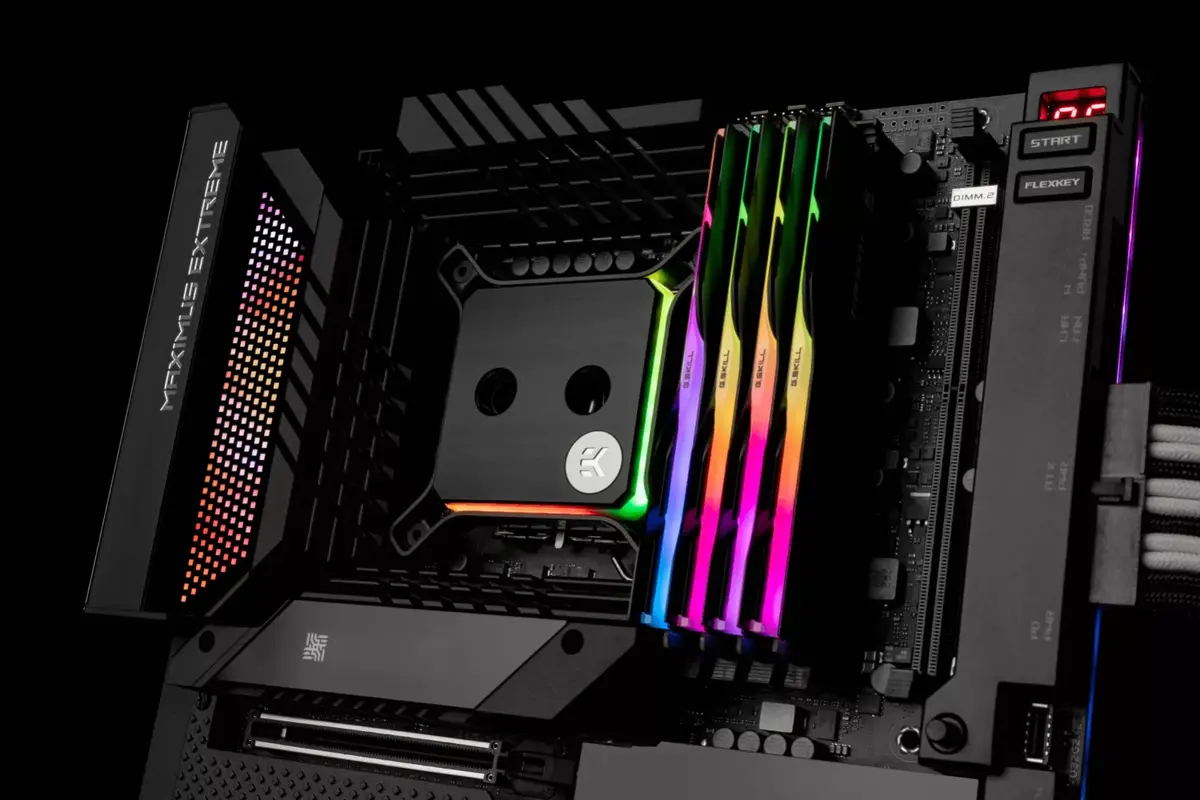

Mount the EK-Quantum Magnitude 1700 following the supplied mounting hardware and the motherboard manufacturer’s instructions for LGA 1700 sockets. Install the block onto the CPU with the correct orientation for the desired inlet/outlet routing; rotate the brass insert 180° to reverse inlet and outlet if needed. Connect tubing to the inlet and outlet ports using compatible fittings, and attach the 3-pin 5V D-RGB cable to a compatible header or controller. Fill and bleed the loop according to your coolant and pump manufacturer's guidelines, then verify leak-free operation and proper flow before powering the system long-term.

Usage recommendations

Use corrosion-inhibited coolant compatible with copper and brass components; avoid distilled water without additives. Ensure tubing and fittings match the port diameter and that the loop is bled thoroughly to prevent air pockets. Replace interchangeable aesthetic frames only when the loop is drained and the system is powered off.
