Optical Cable Sleeve electro base QH/FOH11-24F-TCOM 24 fibers SC/LC IP67

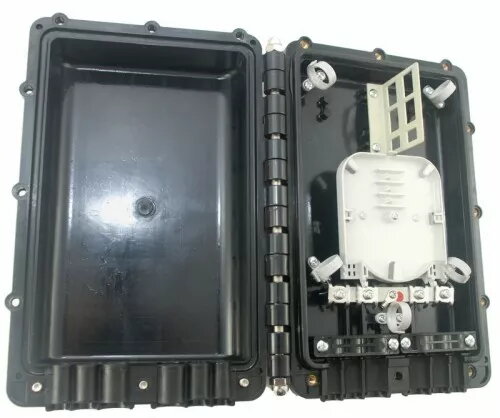

Optical cable sleeve electro base QH/FOH11-24F-TCOM 24 fibers SC/LC IP67 is a sealed enclosure engineered to house and protect up to 24 optical fibers terminated with SC or LC connectors. Intended for outdoor and harsh-environment installations, the sleeve provides dust- and water-resistant protection at an IP67 rating, enabling reliable fiber connections in street cabinets, pole-mounted boxes, or wall-mounted distribution points. The design supports organized fiber routing, mechanical protection, and environmental sealing to reduce service interruptions and maintain signal integrity.

Advantages

The enclosure delivers IP67-rated protection against dust ingress and temporary immersion in water, ensuring stable performance in wet or dusty conditions. It accommodates both SC and LC terminations, offering compatibility with common connector types used in telecom and data networks. The sleeve supports up to 24 fibers in a compact footprint and includes provisions for secure cable entry and fiber management to minimize bending stress and connector damage. Its robust construction reduces maintenance frequency and simplifies outdoor fiber deployment.

Suitable for

• Outdoor fiber distribution points on poles and walls
• Street-level splice and termination boxes for telecom networks
• Temporary or permanent outdoor links requiring IP67 protection
• Last-mile fiber connections and small aggregation nodes

Key specifications

• Capacity: up to 24 optical fibers with SC and LC terminations
• Ingress protection: IP67 (dust-tight and protected against temporary immersion)
• Connector compatibility: SC and LC connector types supported
• Environment: suitable for outdoor and harsh-environment installations
• Cable management: internal routing to reduce bend radius and protect connectors
• Mounting: wall or pole compatible mounting provisions

How to use

Prepare the incoming and outgoing fiber cables by stripping the outer jacket to the recommended length and ensuring clean, undamaged fiber connectors. Open the sleeve housing and route the fibers through the designated cable entry points, using the provided seals or grommets to maintain the IP67 rating. Secure the connectors into the SC or LC adapter slots, organize slack within the internal routing channels to prevent tight bends, and fasten the housing cover according to the manufacturer's torque or closure instructions to ensure a watertight seal. Perform optical testing after assembly to verify insertion loss and continuity.

Usage recommendations

To preserve the enclosure's IP67 performance and fiber integrity, use appropriate cable glands for the specified cable diameters, avoid exceeding minimum bend radius for fibers, and ensure connector endfaces are cleaned before mating. For installations in areas with mechanical strain or vibration, add strain relief at the cable entry and check seals periodically for damage or wear.
