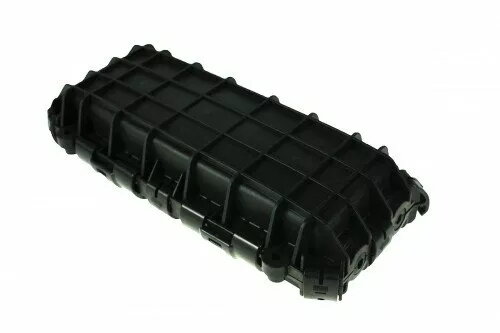

Optical Fiber Splice Closure electro base QH/FOH42-24F-M for 12–24 fibers, inline, compact

Inline optical fiber splice closure electro base QH/FOH42-24F-M for 12–24 fibers, compact, is an enclosure designed to protect and organize fiber splices in outdoor and indoor deployments. The unit supports secure routing of fiber cables and offers environmental sealing to maintain splice integrity. It accommodates organized splice trays and multiple cable entry points, enabling efficient maintenance, repairs and network expansions while minimizing signal loss and mechanical stress on fibers.

Advantages

The optical fiber splice closure provides a compact footprint and robust environmental protection suitable for exposed and controlled environments. Its design supports 12 to 24 fiber splices and allows orderly management of splice trays and pigtails. The closure ensures mechanical strain relief, dust- and moisture-resistant sealing, and straightforward access for technicians performing splicing or reconfiguration. Materials and construction are selected to offer long-term dimensional stability and resistance to common outdoor conditions.

Suitable for

• Small-to-medium outdoor and indoor fiber distribution points
• Network repair and emergency splicing tasks
• Extensions and upgrades of existing fiber links
• Temporary or permanent inline fiber routing in access networks

Key specifications

• Capacity: supports splicing of 12–24 single-mode fibers
• Configuration: inline (straight-through) closure for continuous cable paths
• Form factor: compact enclosure suitable for constrained mounting locations
• Sealing: environmental sealing to protect against moisture and dust ingress
• Cable entries: multiple cable entry points for round or ribbon cables and organized routing
• Splice management: accommodates organized splice trays and pigtail storage
• Mounting: options for pole, wall or aerial installation depending on site hardware

How to use

Prepare the incoming and outgoing fiber cables by stripping outer jackets and cleaning fibers according to standard procedures. Route fibers through the designated cable entries and secure strain relief clamps. Arrange fibers into the provided splice trays and perform fusion or mechanical splices following recommended splice equipment guidelines. After completing splices, place the splice trays into the closure, manage excess fiber length to maintain minimum bend radii, and close the enclosure ensuring all seals and clamps are correctly engaged to restore environmental protection.

Usage recommendations

Use appropriate fiber handling tools and follow fiber safety practices. Ensure bend radius limits are respected and that splice trays are not overfilled. Verify environmental seals after installation and periodically inspect closures in outdoor installations to maintain long-term performance.
