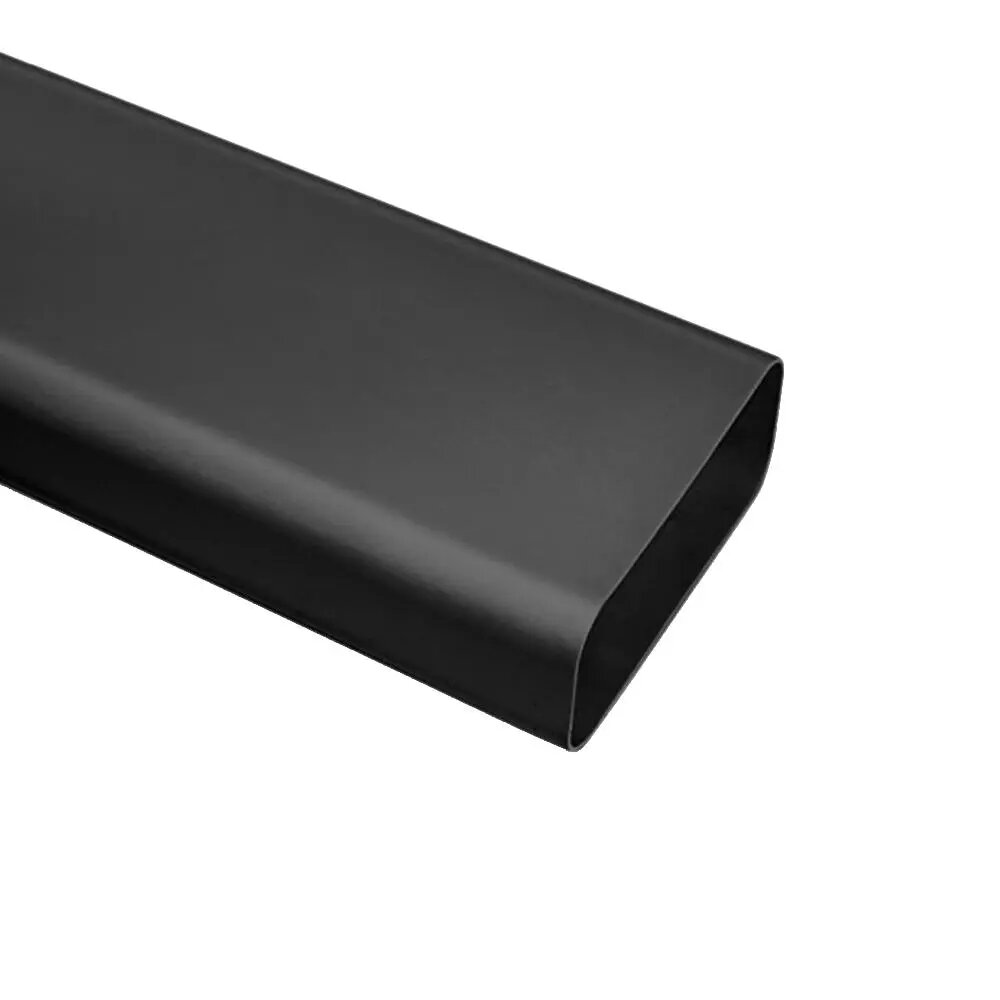

Ducting hood accessory Elica BLACK RECT. FLAT PIPE 222×89×500 mm

The Elica BLACK RECT. FLAT PIPE 222×89×500 mm is a flat rectangular ducting accessory designed for use with compatible kitchen hoods. It provides a compact transition section that helps route exhaust air where vertical or round ducts cannot be installed due to limited space. The component is intended for domestic and light commercial kitchen ventilation systems and simplifies connection between appliance outlet and existing rectangular or adapted ductwork.

Advantages

This flat pipe offers a low-profile rectangular profile that saves installation space while maintaining airflow efficiency. Its standardized dimensions allow straightforward integration with other ventilation elements and Elica hoods. The accessory reduces the need for custom fabrication and helps achieve a neat, unobtrusive installation in confined ceilings, false walls, or tight enclosure cavities.

Suitable for

• Connecting kitchen hoods to rectangular or adapted duct runs in space-restricted installations
• Retrofit projects where existing ducting requires a low-profile transition piece
• Domestic and light commercial kitchens requiring discreet duct routing

Key specifications

• Shape: flat rectangular transition
• External dimensions (approx.): 222 mm × 89 mm × 500 mm
• Material: corrosion-resistant sheet metal suitable for ventilation
• Finish: black surface compatible with Elica hood aesthetics
• Connection type: slip-fit rectangular ends for duct integration

How to use

Measure the duct run to confirm the 222×89×500 mm section fits within the available space and aligns with the hood outlet. Slide the flat pipe into the adjoining duct or adaptor and secure with appropriate clamps, screws, or foil tape to ensure airtight joints. Ensure the transition maintains the required slope and clearance for condensate and airflow, and verify compatibility with the hood’s outlet size before final fastening. Follow local ventilation codes and the hood manufacturer’s installation instructions when assembling the ductwork.

Usage recommendations

For reliable performance, inspect joints for air leaks after installation and seal as necessary. Avoid sharp bends immediately adjacent to the transition to prevent airflow restriction. Use in combination with compatible Elica accessories and maintain periodic cleaning access to prevent grease buildup in domestic and light commercial environments.
