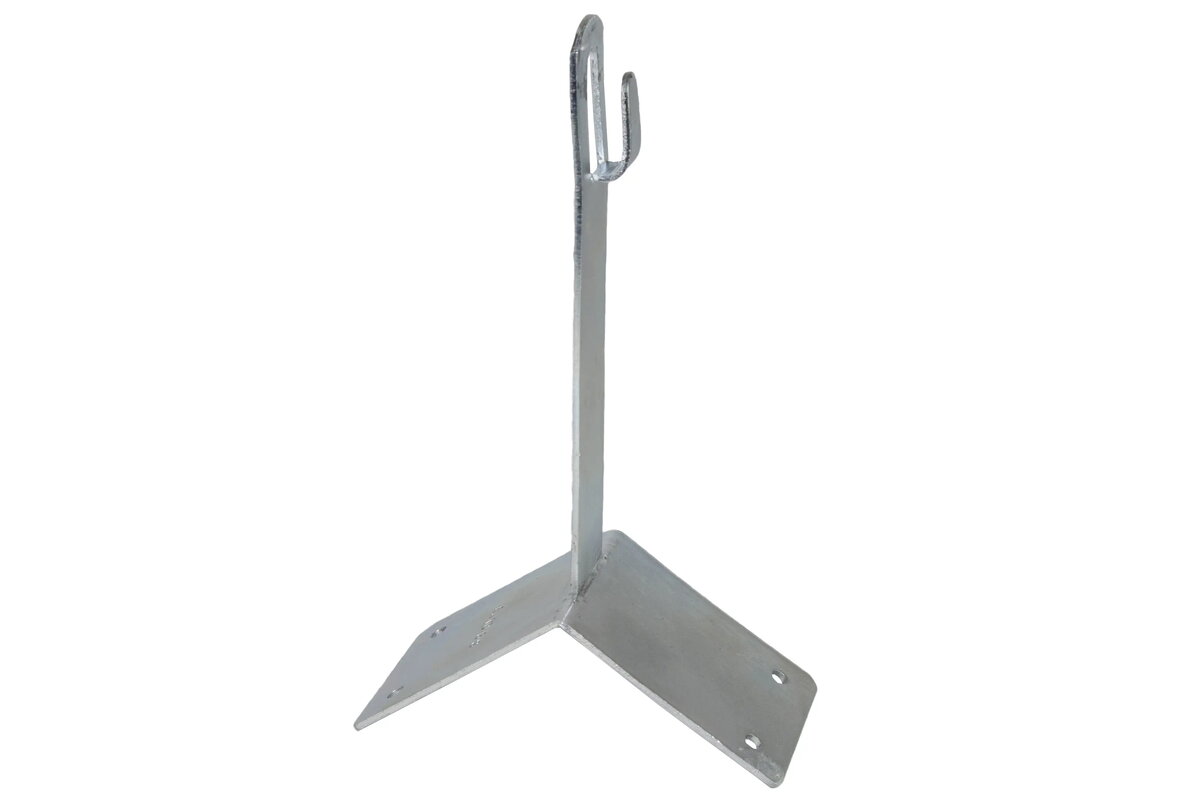

Mounting Bracket ELKO-BIS 20.1 OC clamp peak 70x57 mm galvanised

ELKO-BIS Mounting Bracket 20.1 OC is a galvanised clamp-type peak bracket measuring 70 x 57 mm, designed to provide a corrosion-resistant fixing point on ridge or peak areas. The zinc coating protects the steel substrate against rust, making the bracket suitable for exterior roof and structural attachment tasks. Manufactured for mechanical fastening, this bracket accepts rails, profiles and similar elements, offering a compact solution where a reliable clamp at the ridge is required.

Advantages

The bracket combines a clamp-style attachment with galvanised steel for durability and weather resistance. Its compact 70 x 57 mm footprint allows installation in constrained ridge areas while still providing a stable anchor for rails and profiles. Simple geometry and standard connection points make it compatible with common roofing and construction components, and the zinc finish reduces maintenance needs in outdoor environments.

Suitable for

• Securing rails and mounting profiles to roof ridges and peaks
• Attaching small equipment or fixtures to ridge beams and structural peaks
• Use in roofing repairs and retrofits where a clamp-style ridge anchor is needed

When it may not be suitable

This bracket is intended for mechanical clamping at ridge or peak areas and is not designed as a primary structural support for very heavy loads or for use as a fall-arrest anchor. For applications requiring certified lifting anchors, load-rated safety anchors, or where specific tensile/load capacities are mandated by regulation, a dedicated engineered solution should be selected.

Key specifications

• Material: galvanised steel (zinc-coated)
• Bracket type: clamp-style peak/ridge mounting bracket
• Dimensions: 70 x 57 mm (footprint)
• Typical applications: roof ridge and peak attachment for rails, profiles and small fixtures

How to use

Position the bracket over the ridge or peak element so the clamping faces contact the intended mounting surface. Tighten the clamp fasteners to achieve a secure, stable grip without over-torquing; follow standard torque guidelines for the chosen bolt size and substrate. Attach rails, profiles or fixtures to the bracket using suitable bolts or screws through the provided connection points. After installation, verify alignment and re-check fastener tightness after initial load application and periodically as part of maintenance.

What to consider before purchase

• Ensure the 70 x 57 mm footprint and clamp design suit your ridge or peak geometry
• Confirm galvanised steel is appropriate for the local environment and corrosion requirements
• Check compatibility with the rail/profile dimensions and fastener types you plan to use
• Verify that the bracket's clamp-type attachment meets any applicable load or safety regulations for your project

Usage recommendations

Use matching corrosion-resistant fasteners and perform periodic inspections, especially in coastal or chemically aggressive environments. For safety-critical or heavy-load installations, consult a structural engineer to confirm suitability and determine the correct fastening and torque specifications.
