Monitor Elo Touch Solutions 1990L

Name: Monitor Elo Touch Solutions 1990L E330817
Brand: Elo Touch Solutions
SKU: 10972811
Price: 561.49 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Monitor Elo Touch Solutions 1990L 19" Touchscreen LED 1280 x 1024

Monitor Elo Touch Solutions 1990L Photo 1

Monitor Elo Touch Solutions 1990L Photo 2

Monitor Elo Touch Solutions 1990L Photo 3

Monitor Elo Touch Solutions 1990L Photo 4

Monitor Elo Touch Solutions 1990L Photo 5

Monitor Elo Touch Solutions 1990L Photo 6

Monitor Elo Touch Solutions 1990L Photo 7

Monitor Elo Touch Solutions 1990L Photo 8

Monitor Elo Touch Solutions 1990L Photo 9

Monitor Elo Touch Solutions 1990L Photo 10

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

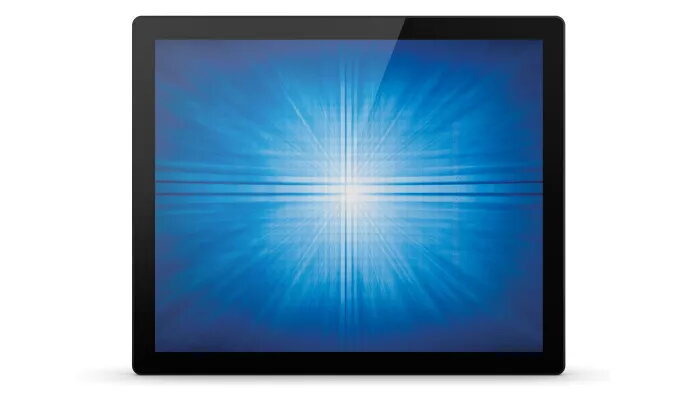

The Elo Touch Solutions 1990L is a 19-inch LED touchscreen monitor with a resolution of 1280 x 1024 pixels and a brightness of 225 cd/m². Its sleek black design makes it suitable for various environments. The touchscreen functionality enhances user interaction, making it ideal for retail and point-of-sale applications.

Available at price 561.49 €: 113 pcs.

Total available for order: 167 pcs.

Warranty: 3 Years

SKU: 10972811

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

19.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

19.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

26.06.2026 {{selectedOffer.courierDeliveryString}}

From 6.39 € (Weight: 7.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

26.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Elo 1990L is a 19-inch LED open-frame touchscreen monitor with a 1280 x 1024 resolution and 225 cd/m² brightness. Designed for integration into kiosks, retail self-service, casino and amusement installations, and industrial automation, the compact black display uses an energy-saving LED backlight for a slim profile, reduced power consumption and lower heat output. The touchscreen delivers stable, drift-free operation with high image clarity and accurate touch response.

Advantages

The open-frame design is sealed against dirt, dust and liquids, simplifying installation into final enclosures and enabling IP65-rated front-side protection for projected capacitive (PCAP) versions. Available with proven Elo touch technologies, the unit supports single- and multi-touch options including IntelliTouch® surface acoustic wave (SAW) and TouchPro™ PCAP two-glass (2GS) technology. The 2GS TouchPro™ option provides a zero-bezel, 10-touch tablet-like experience and two-touch thru-glass capability while supporting single or dual latex gloves and cloth gloves. Elo controls design and tooling to ensure long-term availability and backs the product with a three-year standard warranty.

Suitable for

Kiosk and self-service terminals
Retail and point-of-sale systems
Casino and amusement machines
Industrial automation panels and HMIs

Key specifications

Display diagonal: 19"
Resolution: 1280 x 1024 (5:4)
Display technology: LED backlight
Brightness: 225 cd/m²
Response time: 5 ms
Contrast ratio (typical): 1000:1
VESA mounting: Yes
Colour: Black
Touch technologies: IntelliTouch® (SAW), TouchPro™ PCAP 2GS (10-touch, 2-touch thru-glass)
Front-side protection (PCAP): up to IP65

How to use

Integrate the Elo 1990L into the intended enclosure or bezel cutout following the enclosure manufacturer’s guidelines and the monitor’s mounting provisions. Connect video via DisplayPort or VGA and attach the appropriate touch interface cable for the selected touch technology. Configure display settings and touch drivers on the host system; Elo provides drivers and software to ensure compatibility and correct touch operation. For PCAP installations that require front-side sealing, ensure gaskets and seals maintain the IP65 rating.

Usage recommendations

For reliable, long-term operation, use the Elo-provided drivers and perform regular cleaning of the front glass with a soft, lint-free cloth and a non-abrasive glass cleaner. Avoid sharp objects or abrasive materials on the touchscreen surface. If installing in environments with contaminants or moisture, verify enclosure sealing and maintain the IP65-rated front protection where applicable.

Specifications

Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.: 19 "
Display resolution:: 1280 x 1024
Display technology:: LED
Response time:: 5 ms
Contrast ratio (typical):: 1000:1
Screen shape:: Flat
VESA mounting:: Yes
Aspect ratio:: 5:4
Product colour:: Black

All features

Display

Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.: 19 "
Display technology:: LED
Aspect ratio:: 5:4
Display resolution:: 1280 x 1024
Response time:: 5 ms
Contrast ratio (typical):: 1000:1
Display brightness:: 225 cd/m²
Viewing angle, vertical:: 160 °
Viewing angle, horizontal:: 170 °
Horizontal scan range:: 30 - 82
Supported graphics resolutions:: 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1024 x 768 (XGA), 800 x 600 (SVGA), 720 x 400, 640 x 480 (VGA)
Vertical scan range:: 50 - 75
Display number of colours:: 16.78 million colours
Touchscreen:: Yes
Touchscreen technology:: Projected capacitive system

Design

Screen shape:: Flat
Product colour:: Black
Panel mounting interface:: 100 x 100

Ports & interfaces

DisplayPorts quantity:: 1

Ergonomics

Wall mountable:: Yes
VESA mounting:: Yes

Performance

Mean time between failures (MTBF):: 50000 h
On Screen Display (OSD) languages:: DEU, CHI (TR), CHI (SIMPL), ENG, ESP, FRE, ITA, JPN
Number of OSD languages:: 8

Multimedia

Built-in camera:: No

Other features

Power supply type:: DC
Display viewable area (HxV):: 376.3 x 301.1
Built-in microphone:: No
Weight (without stand):: 4600 g
Height (without stand):: 342.7 mm
Depth (without stand):: 50 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 22 W
Power consumption (off):: 0.5 W
Power consumption (standby):: 1.5 W
AC input frequency:: 50
AC input voltage:: 230

Operational conditions

Operating altitude:: 0 - 3.05
Operating relative humidity (H-H):: 20 - 80
Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 10 - 95

Packaging content

Cables included:: VGA, HDMI, USB

Packaging data

Package weight:: 7000 g
Package depth:: 450 mm
Package height:: 190 mm
Package width:: 526 mm

Logistics data

Harmonized System (HS) code:: 85285210
