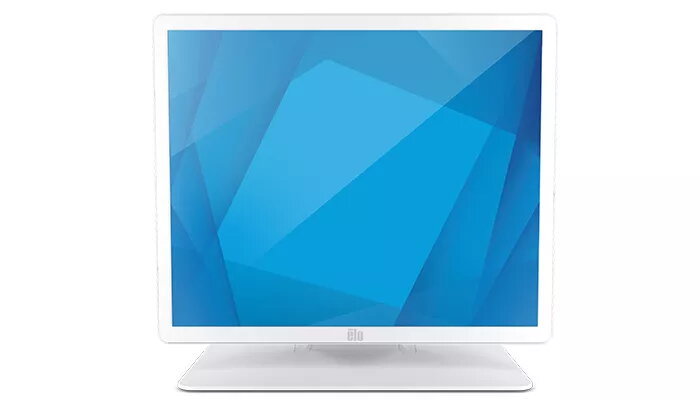

Touchscreen LCD Monitor Elo Touch Solutions 1903LM

Name: Touchscreen LCD Monitor Elo Touch E658586
Brand: Elo Touch Solutions
SKU: 4184044
Price: 1052.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Touchscreen LCD Monitor Elo Touch Solutions 1903LM Photo 3

Touchscreen LCD Monitor Elo Touch Solutions 1903LM Photo 4

Touchscreen LCD Monitor Elo Touch Solutions 1903LM Photo 5

Touchscreen LCD Monitor Elo Touch Solutions 1903LM Photo 6

Product data

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Elo Touch Solutions 1903LM is a 19-inch LCD touchscreen monitor with a resolution of 1280 x 1024 pixels and a brightness of 225 cd/m². It features SVGA HD technology, providing clear and vibrant visuals. The sleek white design makes it suitable for various environments. Ideal for interactive applications, it offers reliable performance and user-friendly touch capabilities.

Available at price 1,052.99 €: 22 pcs.

Total available for order: 78 pcs.

Warranty: 2 Years

SKU: 4184044

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

18.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

18.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

25.06.2026 {{selectedOffer.courierDeliveryString}}

From 8.69 € (Weight: 10.29 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Locker / Latvijas Pasts nodaļa

25.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 36.64 euros per month

Available for private customers at price 1,144.49 €: 32 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Elo Touch Solutions 1903LM is a 19-inch medical-grade touchscreen LCD monitor with a 1280 x 1024 (SXGA) resolution and 225 cd/m² brightness. Designed for healthcare settings, this compact touchscreen display combines reliable SVGA image quality with factory DICOM Part 14 pre-calibration to support consistent clinical image review, EMR documentation, and integration into medical devices and point-of-care systems.

Advantages

The 1903LM provides DICOM 14 GSDF factory calibration to deliver consistent grayscale rendering for image review. Its touchscreen capability streamlines clinical workflows by enabling direct interaction with images, vitals, and records. The unit’s compact form factor and medical-grade design allow installation in exam rooms, labs, pharmacies, and on-device applications, while the white finish and robust touch performance suit continuous use in healthcare environments.

Suitable for

EMR documentation and charting
Viewing X-rays, scans and diagnostic images with DICOM-consistent grayscale
Point-of-care terminals and patient engagement displays
Integration into ventilator, anesthesia and patient monitoring devices
Laboratory and pharmacy workstations

Key specifications

Screen size: 19 inches
Resolution: 1280 x 1024 (SXGA)
Brightness: 225 cd/m²
Display technology: SVGA LCD with touchscreen
Medical compliance: DICOM Part 14 (factory pre-calibrated per AAPM secondary display guidelines)
Color/finish: White
Manufacturer: Elo Touch Solutions; MPN: E658586; EAN: 0843173135434

How to use

Install the 1903LM according to the device or workstation mounting instructions and connect to a compatible system using the supported video and USB or serial touch interface. Use the touchscreen to interact directly with EMR software, image viewers or medical device interfaces. For image review, rely on the factory DICOM Part 14 calibration to ensure consistent grayscale presentation; avoid altering display settings that override calibration unless required for specific workflows and performed by qualified personnel.

Usage recommendations

Mount the monitor in stable, medically approved locations and follow your facility’s infection control cleaning procedures. For diagnostic-critical tasks, verify calibration and image-viewing settings periodically and consult device integration guides when embedding into medical equipment.

Specifications

Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.: 19 "
Display resolution:: 1280 x 1024
HD type:: SVGA
Panel type:: TFT
Display technology:: LCD
Response time:: 14 ms
Contrast ratio (typical):: 1000:1
Screen shape:: Flat
VESA mounting:: Yes
Built-in speaker(s):: Yes
Energy efficiency class (SDR): Energy efficiency class is a standard classification that is used all over Europe and which is understandable at first sight. Products can be efficiently compared according to classes, starting from A (the most energy efficient class), and ending with G (the most energy-intensive class). The classification of energy efficiency is based on annual energy consumption which is being calculated on the basis of several different parameters.: F
Energy consumption (SDR) per 1000 hours: Power consumption in switched-on state expressed in W.: 14 kWh
Product colour:: White

All features

Display

Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.: 19 "
Display technology:: LCD
HD type:: SVGA
Panel type:: TFT
Display resolution:: 1280 x 1024
Response time:: 14 ms
Contrast ratio (typical):: 1000:1
Display brightness:: 225 cd/m²
Viewing angle, vertical:: 178 °
Viewing angle, horizontal:: 178 °
Display diagonal (metric):: 48 cm
Native aspect ratio:: 5:4
Display number of colours:: 16.78 million colours
Touchscreen:: Yes
Anti-glare screen:: Yes
Touchscreen technology:: Projected capacitive system
Number of simultaneous touchpoints:: 10

Design

Screen shape:: Flat
Product colour:: White

Ports & interfaces

HDMI ports quantity:: 1

Ergonomics

Wall mountable:: Yes
VESA mounting:: Yes

Audio

Built-in speaker(s):: Yes

Performance

Mean time between failures (MTBF):: 50000 h
On Screen Display (OSD):: Yes
On Screen Display (OSD) languages:: CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN
Number of OSD languages:: 8

Multimedia

RMS rated power:: 2 W
Built-in camera:: No

Technical details

Sustainability certificates:: RoHS

Other features

Maximum refresh rate:: 70 Hz
Viewable size, vertical:: 299.83 mm
Digital horizontal frequency:: 30 - 82
Digital vertical frequency:: 50 - 75
Power supply type:: DC
Viewable size, horizontal:: 374.78 mm
Display viewable area (HxV):: 374.8 x 299.8
Built-in microphone:: No
LED indicators:: Power
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP54
Weight (without stand):: 4300 g

Power

Energy efficiency class (SDR): Energy efficiency class is a standard classification that is used all over Europe and which is understandable at first sight. Products can be efficiently compared according to classes, starting from A (the most energy efficient class), and ending with G (the most energy-intensive class). The classification of energy efficiency is based on annual energy consumption which is being calculated on the basis of several different parameters.: F
Energy consumption (SDR) per 1000 hours: Power consumption in switched-on state expressed in W.: 14 kWh
Power consumption (typical): Power consumption in switched-on state expressed in W.: 14.53 W
Power consumption (off):: 0.37 W
Power consumption (standby):: 0.79 W
Power consumption (max):: 16.36 W
Energy efficiency scale: Range of energy efficiency levels classifying devices from most to least energy-efficient.: A to G

Weight & dimensions

Weight (with stand):: 6300 g
Width (with stand):: 429.6 mm
Height (with stand):: 429.6 mm
Depth (with stand):: 193.4 mm

Operational conditions

Operating relative humidity (H-H):: 20 - 80
Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 10 - 95

Packaging content

Cables included:: VGA, USB, HDMI

Packaging data

Package weight:: 9800 g
Package depth:: 260 mm
Package height:: 482 mm
Package width:: 527 mm

Hide Show all

Instructions

mmo_87982352_1624432607_258_60921.pdf


elo-touch-solutions-E658586-4184044.pdf

mmo_87982352_1673373876_1338_28192.pdf

Description

Instructions

mmo_87982352_1624432607_258_60921.pdf


elo-touch-solutions-E658586-4184044.pdf

mmo_87982352_1673373876_1338_28192.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH94	32	18.06.2026 Best delivery	1,144.49 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
EU9	22	18.06.2026 Best delivery	1,052.99 €
WH109	24	06.07.2026	1,070.99 €

1,144.49 €

Stock: 32

Delivery Date: 18.06.2026 Best delivery

Warehouse: WH94

Available only for legal entities

1,052.99 €

Stock: 22

Delivery Date: 18.06.2026 Best delivery

Warehouse: EU9

1,070.99 €

Stock: 24

Delivery Date: 06.07.2026

Warehouse: WH109

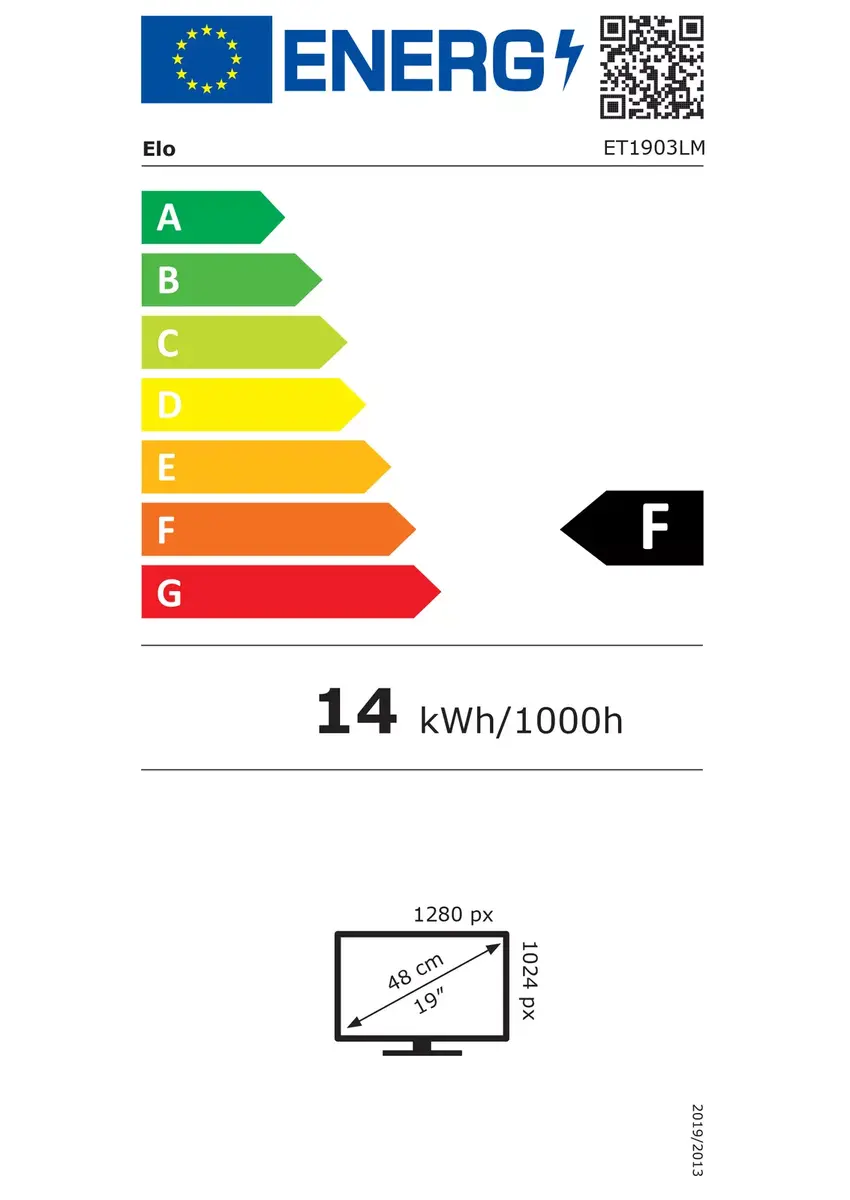

Energy label

E658586

Model

Device manufacturer code

Elo Touch Solutions

Manufacturer

Device manufacturer

19 "

Display diagonal

iagonal of the visible part of the screen expressed in centimeters and inches.

Energy efficiency class (SDR)

Energy efficiency class is a standard classification that is used all over Europe and which is understandable at first sight. Products can be efficiently compared according to classes, starting from A (the most energy efficient class), and ending with G (the most energy-intensive class). The classification of energy efficiency is based on annual energy consumption which is being calculated on the basis of several different parameters.

14 kWh

Energy consumption (SDR) per 1000 hours

Power consumption in switched-on state expressed in W.

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Touchscreen LCD Monitor Elo Touch Solutions 1903LM cost, and is it available for purchase?

The price is 1,052.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 78 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 18.06.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Elo Touch Solutions products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Elo Touch Solutions service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: display diagonal, display resolution, hd type, panel type, display technology, response time, contrast ratio (typical), screen shape, vesa mounting, built-in speaker(s), energy efficiency class (sdr), energy consumption (sdr) per 1000 hours, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Touchscreen LCD Monitor Elo Touch Solutions 1903LM?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
