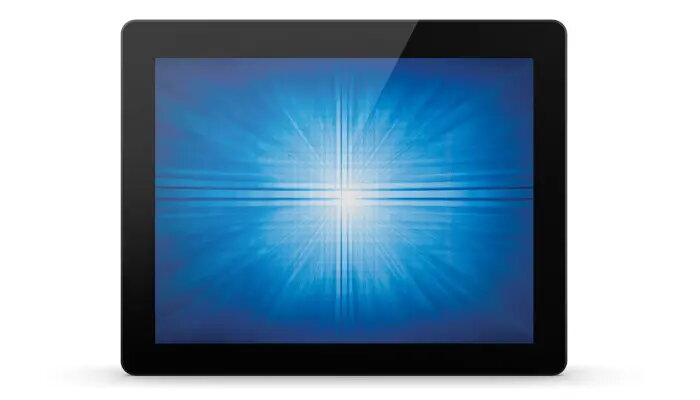

Elotouch 1590L 15" LCD touchscreen monitor

Name: 15" LCD Touchscreen Monitor Elotouch E334335
Brand: Elotouch
SKU: 12258886
Price: 597.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

15" LCD Touchscreen Monitor Elotouch 1590L — 1024×768, 225 cd/m², 4:3, VESA

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Elotouch 1590L is a 15" (38.1 cm) LCD touchscreen monitor with 1024×768 resolution and 225 cd/m² brightness. Designed for touch interaction, it offers a 4:3 aspect ratio, 700:1 contrast, 16 ms response time and VESA mounting support. Suited for POS, kiosks, industrial HMIs and compact desktop installations requiring a reliable touch display.

Available for order: 11 pcs.

Warranty: 2 Years

SKU: 12258886

Manufacturer: Elotouch

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

13.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 €

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

13.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 199.16 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 16.60 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Elo 1590L is a 15-inch open-frame LCD touchscreen designed for reliable touch interaction in kiosks, point-of-sale, industrial HMI and compact desktop installations. It uses an energy-efficient LED backlight for a slim profile and lower power consumption while providing stable, drift-free touch performance and clear images at a 1024×768 resolution and 4:3 aspect ratio.

Advantages

The display combines proven Elo touch technology with a compact, narrow housing and an LED backlight that reduces power use and heat generation. Its touchscreen is sealed against dirt, dust and liquids for simplified integration into enclosures, and projected capacitive (PCAP) options can achieve an IP65 front rating. Multiple touch technologies are available, including a multi-touch PCAP two-glass solution supporting up to 10 touches and through-glass use, as well as single-touch options such as five-wire resistive and surface acoustic wave (SAW) variants. The unit is built to commercial standards and backed by a three-year warranty, with extensive reliability testing and a design focused on long-term availability.

Suitable for

Kiosk and self-service terminals
Retail point-of-sale systems
Casino and amusement terminals
Industrial automation and HMI panels
Compact desktop touch applications

When it may not be suitable

This open-frame monitor is intended for integration into enclosures or kiosks rather than standalone consumer use. If you need a high-brightness outdoor display, a very large diagonal, or advanced color calibration for professional graphics work, this 15" 1024×768 commercial touch display may not meet those requirements.

Key specifications

Display diagonal: 15" (38.1 cm)
Resolution: 1024 × 768 pixels
Aspect ratio: 4:3
Brightness: 225 cd/m²
Contrast ratio (typical): 700:1
Response time: 16 ms
Refresh rate: 60 Hz
Screen shape: Flat
Touch technologies available: Projected capacitive (multi-touch), five-wire resistive, SAW
Front ingress protection (with PCAP sealed): IP65
Color: Black
VESA mounting: Yes

How to use

Mount the open-frame display into your enclosure or kiosk using the VESA mounting points and follow Elo integration guidelines to ensure the touchscreen seal and IP rating (when applicable). Select the touch technology that matches your application—PCAP for multi-touch and thru-glass scenarios or resistive/SAW for single-touch and anti-vandal needs—and install Elo drivers and software for optimal touch performance. Connect video, power and touch interface cables according to the installation manual and test touch responsiveness and calibration after installation.

What to consider before purchase

Required touch technology (PCAP multi-touch vs. resistive or SAW)
Whether the unit will be sealed into an enclosure and needs IP65 front protection
Compatibility with your system drivers and enclosure dimensions
Mounting requirements and available VESA support
Brightness and resolution suitability for your environment

Usage recommendations

For kiosk and POS applications, choose the projected capacitive (PCAP) multi-touch version for tablet-like interaction and thru-glass operation; use the sealed PCAP option when front-side ingress protection is required. Install Elo drivers and perform calibration after mounting to ensure accurate, drift-free touch responses.

Specifications

Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.: 15 "
Display resolution:: 1024 x 768
Display technology:: LCD
Response time:: 16 ms
Contrast ratio (typical):: 700:1
Screen shape:: Flat
VESA mounting:: Yes
Aspect ratio:: 4:3
Product colour:: Black

All features

Display

Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.: 15 "
Display technology:: LCD
Aspect ratio:: 4:3
Display resolution:: 1024 x 768
Response time:: 16 ms
Contrast ratio (typical):: 700:1
Display brightness:: 225 cd/m²
Viewing angle, vertical:: 140 °
Viewing angle, horizontal:: 160 °
Horizontal scan range:: 30 - 60
Vertical scan range:: 50 - 75
Backlight type:: LED
Touchscreen:: Yes
LED backlight:: Yes
Touchscreen technology:: Capacitive
Native refresh rate:: 60 Hz

Design

Screen shape:: Flat
Product colour:: Black
Panel mounting interface:: 75 x 75

Ports & interfaces

HDMI ports quantity:: 1
DisplayPorts quantity:: 1

Ergonomics

Wall mountable:: Yes
VESA mounting:: Yes

Performance

Mean time between failures (MTBF):: 50000 h
On Screen Display (OSD) languages:: JPN, ITA, FRE, ESP, ENG, DEU, CHI (SIMPL), CHI (TR)

Multimedia

Built-in camera:: No

Technical details

Full HD:: No
Compliance certificates:: RoHS

Other features

Digital horizontal frequency:: 30 - 60
Digital vertical frequency:: 50 - 75
Power supply type:: DC
Display viewable area (HxV):: 304.1 x 228.1
Weight (without stand):: 2900 g
Height (without stand):: 284.9 mm
Depth (without stand):: 35.6 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 12.5 W
Power consumption (off):: 0.5 W

Operational conditions

Operating relative humidity (H-H):: 20 - 80
Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 10 - 95

Packaging data

Package weight:: 4700 g
Package depth:: 175 mm
Package height:: 375 mm
Package width:: 434 mm

Logistics data

Harmonized System (HS) code:: 85285210
