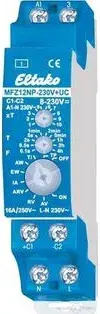

Eltako MFZ12NP-230V+UC Multifunction Time Relay with 10 Functions, 1 Closer Potential-Free 16 A 2300 VA CE Certified

The Eltako MFZ12NP-230V+UC multifunction time relay is a versatile and reliable device engineered for precise time control in various electrical installations, automation systems, and industrial applications. Designed by Eltako, this unit combines flexibility with robust performance, featuring 10 selectable functions and 1 potential-free normally open contact. It is built to handle demanding switching tasks efficiently while maintaining high operational safety and compliance with recognized industry standards.

Advantages

This multifunction time relay offers exceptional adaptability for complex electrical setups through its ten distinct operating functions. Its broad AC input voltage range from 8 to 230 V allows for versatile integration into different circuit configurations without requiring multiple specialized devices. With a high switching capacity of up to 2300 VA and a maximum current rating of 16 A, it securely manages substantial electrical loads. The inclusion of a potential-free normally open contact ensures circuit isolation flexibility, while the durable blue housing and CE certification guarantee reliable performance and safety in professional environments.

Suitable for

• Electrical installations requiring precise time delay or timing control
• Automation and industrial control panels
• Managing lighting, ventilation, and heating systems
• Integration into circuits with variable control voltages ranging from 8 to 230 V

When it may not be suitable

This device may not be suitable for applications requiring direct current switching outside the specified AC voltage parameters or systems that demand continuous currents exceeding 16 A. It is also not intended for non-standard mounting environments that do not accommodate rail-mounted modular electrical equipment.

Key specifications

• 10 selectable functions
• 1 closer potential-free normally open contact
• AC input voltage range: 8 to 230 V
• Maximum switching capacity: 2300 VA
• Maximum current: 16 A
• Operating temperature range: -20 to 50 °C
• Product color: Blue
• CE certified

How to use

The Eltako MFZ12NP-230V+UC multifunction time relay is designed for professional installation within standard electrical distribution boards or control cabinets. Qualified electricians should mount the unit securely and connect the appropriate input voltage ranging from 8 to 230 V according to the system wiring requirements. Select the desired operating mode from the 10 available functions to match the intended time-control logic. Ensure that connected loads do not exceed the 16 A current limit and the 2300 VA switching capacity before energizing the circuit.

What to consider before purchase

• Verify that the control voltage falls within the 8 to 230 V range
• Confirm that the load requirements do not exceed 16 A or 2300 VA
• Check physical space availability in the electrical panel for installation
• Ensure installation is planned for environments within the -20 to 50 °C temperature range

Usage recommendations

Always ensure that electrical installation and maintenance are performed by qualified personnel in accordance with local safety regulations. Verify all wiring and function selections prior to system activation to ensure proper time control and prevent equipment overload.
