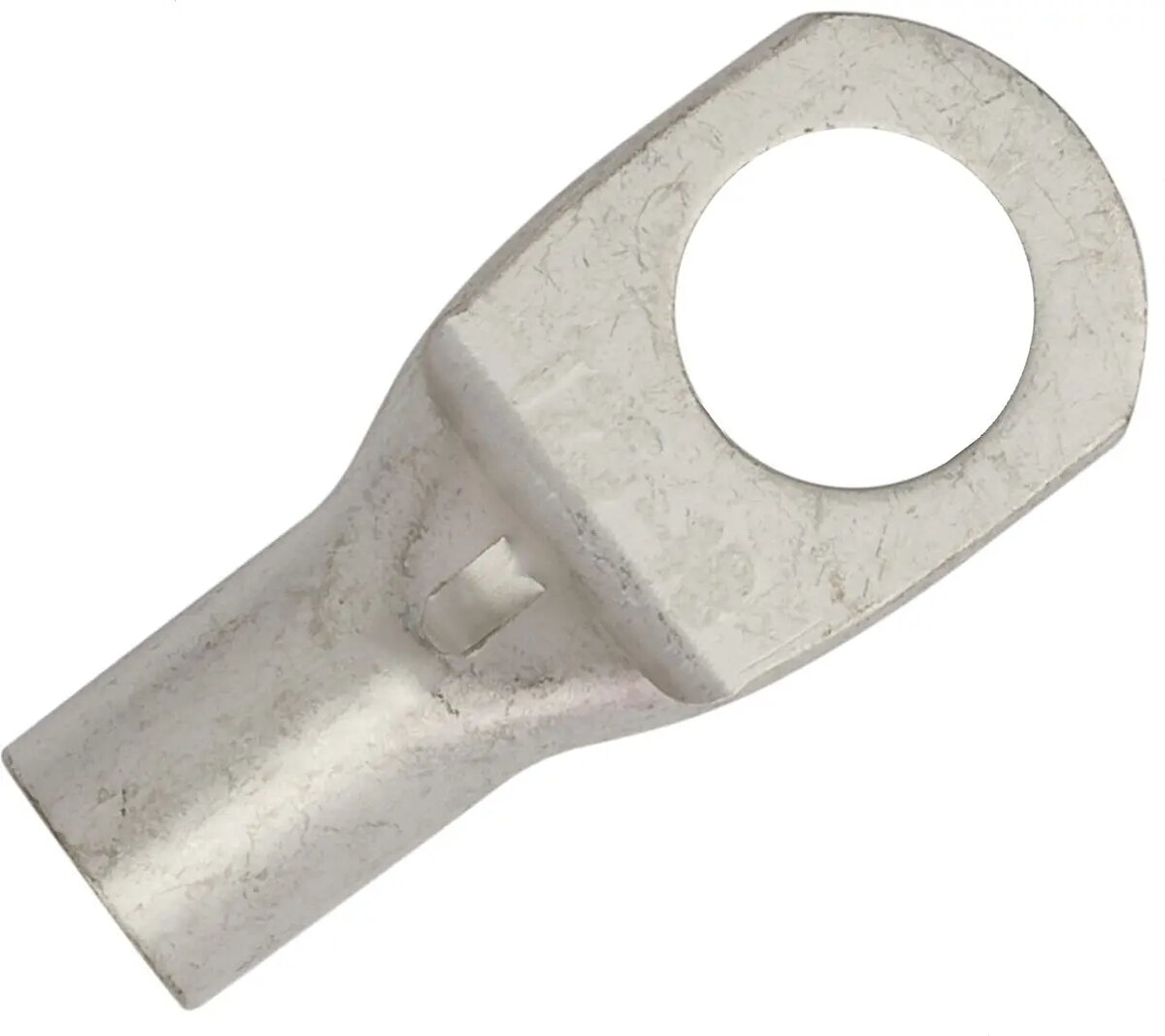

EM Group Tubular Ring Terminal 25mm² M8 Tinned Copper

The EM Group tubular ring terminal is a high-performance electrical component engineered for the secure termination of 25mm² conductors. Designed with an M8 stud hole, this terminal provides a robust connection point for power cables in demanding electrical environments. The construction utilizes premium tinned copper, which combines the high electrical conductivity of copper with a protective tin coating to prevent oxidation and ensure long-term reliability in various atmospheric conditions.

Advantages

This tubular ring terminal offers exceptional durability and performance for critical electrical systems. The use of high-grade tinned copper minimizes contact resistance, which helps in maintaining efficient power flow and reducing heat generation at the connection point. Its tubular design allows for a deep and secure crimp, ensuring that the conductor remains firmly attached even under mechanical stress or vibration. Furthermore, the tin plating provides a significant barrier against corrosion, making it suitable for use in environments where moisture or chemical exposure might otherwise compromise standard copper terminals.

Suitable for

• Power distribution panels and switchgear
• Industrial machinery and control systems
• Automotive and marine electrical wiring
• Battery cable terminations
• Renewable energy installations

When it may not be suitable

This terminal is specifically designed for 25mm² conductors and an M8 stud size. It is not suitable for cables with different cross-sections, as an improper fit will result in a poor electrical connection and potential safety hazards. Additionally, it should not be used in environments where the operating temperature exceeds the thermal limits of the copper material or the associated insulation.

Key specifications

• Conductor cross-section: 25mm²
• Stud hole diameter: 8mm (M8)
• Material: Tinned copper
• Design: Tubular ring type

How to use

To install the terminal, first strip the insulation from the end of the 25mm² conductor to the appropriate length required by the terminal barrel. Insert the conductor fully into the tubular section of the terminal. Use a professional-grade crimping tool compatible with tubular terminals to apply sufficient pressure, ensuring a gas-tight connection between the wire and the terminal. Once crimped, the terminal can be secured to the M8 stud using a matching nut and washer, ensuring the connection is tightened to the manufacturer's recommended torque specifications.

What to consider before purchase

• Verify that your cable cross-section is exactly 25mm².
• Ensure the M8 stud size matches your connection point.
• Confirm that you have the correct crimping tool for tubular terminals.
• Check the environmental conditions to ensure tinned copper is appropriate for your application.

Usage recommendations: Always inspect the crimped connection for any loose strands or signs of mechanical damage before finalizing the installation. Ensure that the contact surface of the M8 stud is clean and free of debris to maintain optimal electrical conductivity.
