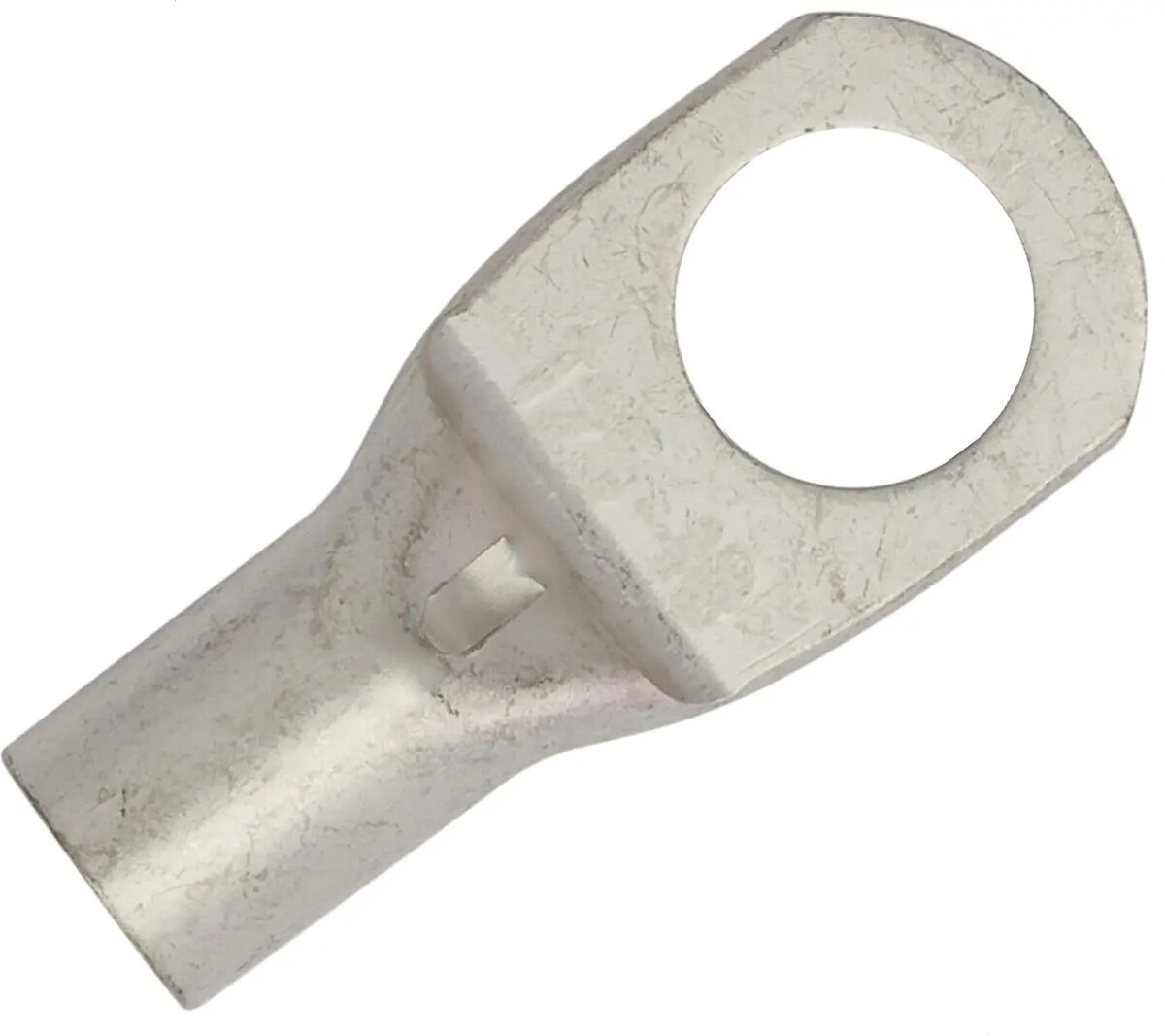

EM Group Tubular Ring Terminal 35mm² M10 Tinned Copper

The EM Group tubular ring terminal is a high-performance electrical component engineered for the secure termination of 35mm² conductors. Constructed from premium-grade tinned copper, this terminal provides superior electrical conductivity and long-term protection against oxidation and environmental corrosion. Its robust design ensures a stable and durable connection, essential for maintaining the integrity of electrical circuits in demanding environments.

Advantages

The primary benefit of this tubular ring terminal lies in its high-quality material composition, which facilitates optimal current flow and minimizes resistance. The tinned copper finish offers enhanced durability, making it highly resistant to harsh conditions and preventing the degradation of the connection over time. Its precise engineering ensures a reliable fit for 35mm² cables, providing a professional-grade solution for critical power distribution tasks.

Suitable for

• Electrical power distribution panels
• Industrial wiring and control systems
• Battery cable terminations
• Heavy-duty electrical installations
• Grounding connections

When it may not be suitable

This terminal is not designed for use with conductors outside the 35mm² size range, as an improper fit can lead to high resistance or mechanical failure. It is also not intended for applications requiring specific insulation materials, as this is a non-insulated bare metal terminal.

Key specifications

• Conductor cross-section: 35mm²
• Mounting hole diameter: M10
• Material: Tinned copper
• Terminal type: Tubular ring

How to use

To install the terminal, first strip the insulation from the end of the 35mm² conductor to the appropriate length. Insert the conductor fully into the tubular barrel of the terminal. Use a professional-grade hydraulic or manual crimping tool specifically calibrated for 35mm² tubular terminals to ensure a gas-tight connection. Once crimped, secure the terminal to the desired M10 stud using a matching nut and washer, ensuring the connection is tightened to the manufacturer's recommended torque specifications.

What to consider before purchase

• Verify that the conductor size is exactly 35mm²
• Ensure the M10 stud size matches your mounting point
• Confirm that you have access to a compatible crimping tool
• Check if the environment requires additional heat-shrink tubing for insulation

Usage recommendations

Always ensure the crimping tool is compatible with the specific dimensions of the terminal to prevent loose connections or overheating. Regularly inspect connections in high-vibration environments to ensure the mounting nut remains secure.
