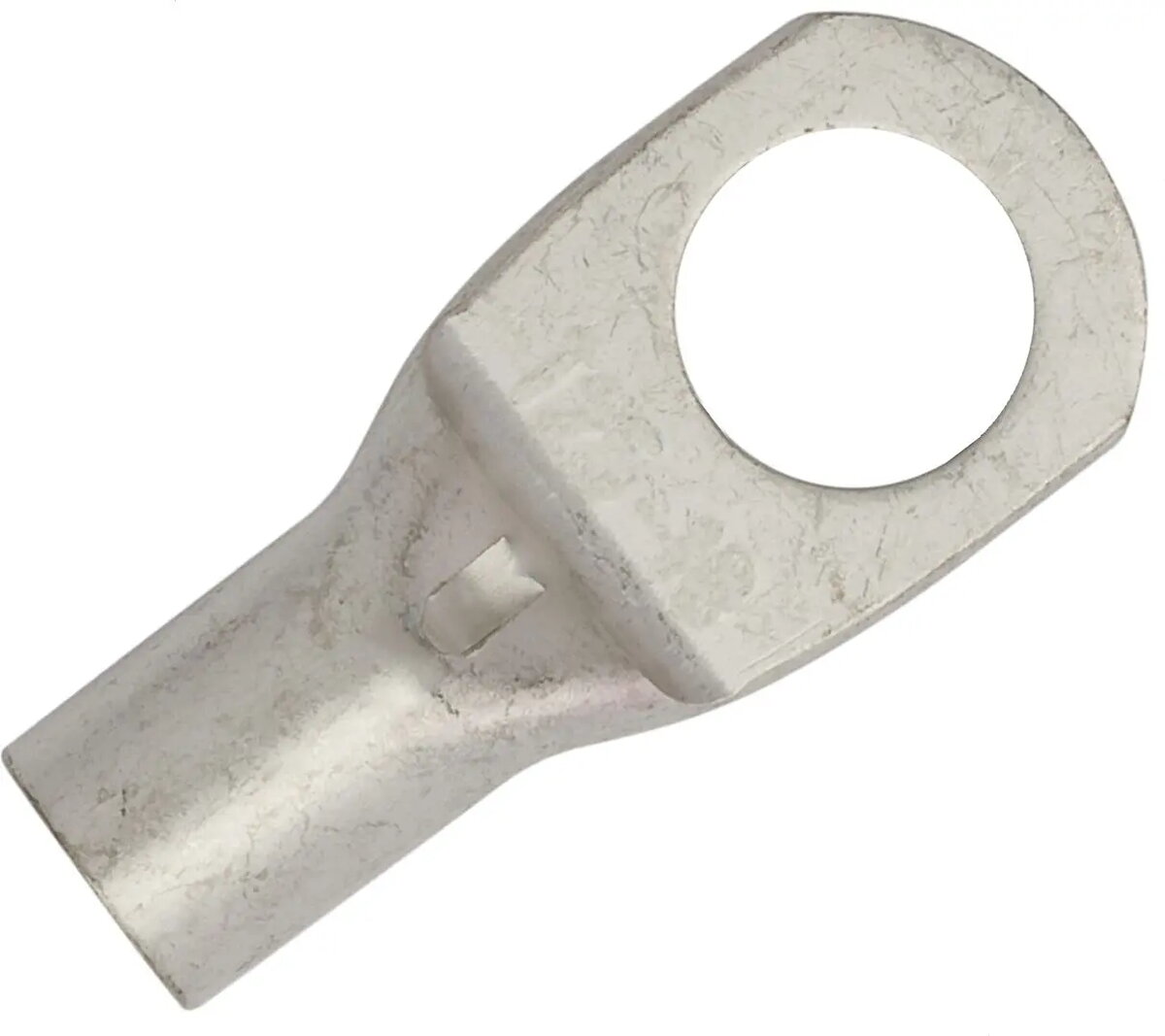

EM Group Tubular Ring Terminal 50mm² M8 Tinned Copper

The EM Group tubular ring terminal is a high-performance electrical component engineered for the secure termination of 50mm² conductors. Constructed from premium-grade tinned copper, this terminal provides superior electrical conductivity while offering robust protection against oxidation and environmental corrosion. Its design features a precise M8 mounting hole, ensuring a stable and low-resistance connection suitable for demanding industrial and power distribution environments.

Advantages

The primary benefit of this tubular ring terminal is its exceptional material quality, which guarantees long-term reliability in critical electrical systems. The tinned copper construction minimizes contact resistance, preventing overheating and energy loss during operation. Furthermore, the tubular design allows for a consistent and strong crimp, ensuring that the conductor remains firmly attached even under mechanical stress or vibration. Its corrosion-resistant finish makes it an ideal choice for installations where durability is paramount.

Suitable for

• Electrical control panels and switchgear
• Power distribution systems
• Industrial machinery wiring
• Battery cable connections
• Grounding applications

When it may not be suitable

This terminal is specifically designed for 50mm² conductors and an M8 bolt size. It is not suitable for use with cables of different cross-sections, as this would result in an insecure crimp and poor electrical contact. Additionally, it should not be used in environments where the bolt diameter exceeds 8mm.

Key specifications

• Conductor cross-section: 50mm²
• Mounting hole diameter: 8mm (M8)
• Material: Tinned copper
• Design: Tubular ring terminal

How to use

To install the terminal, first strip the insulation from the end of the 50mm² cable to the appropriate length. Insert the conductor fully into the tubular barrel of the terminal. Use a professional hydraulic or manual crimping tool specifically calibrated for 50mm² terminals to compress the barrel securely onto the wire. Once crimped, align the ring hole with the M8 stud or bolt and fasten it securely using a nut and washer to ensure a tight, low-resistance connection.

What to consider before purchase

• Ensure the cable cross-section is exactly 50mm²
• Verify that the mounting stud size is M8
• Confirm that you have the correct crimping tool for this terminal size
• Check the environmental conditions to ensure tinned copper is appropriate for your specific application

Usage recommendations

Always ensure that the crimping tool is fully closed during the compression process to achieve a gas-tight connection. Regularly inspect the connection point for signs of heat or loosening in high-vibration environments.
