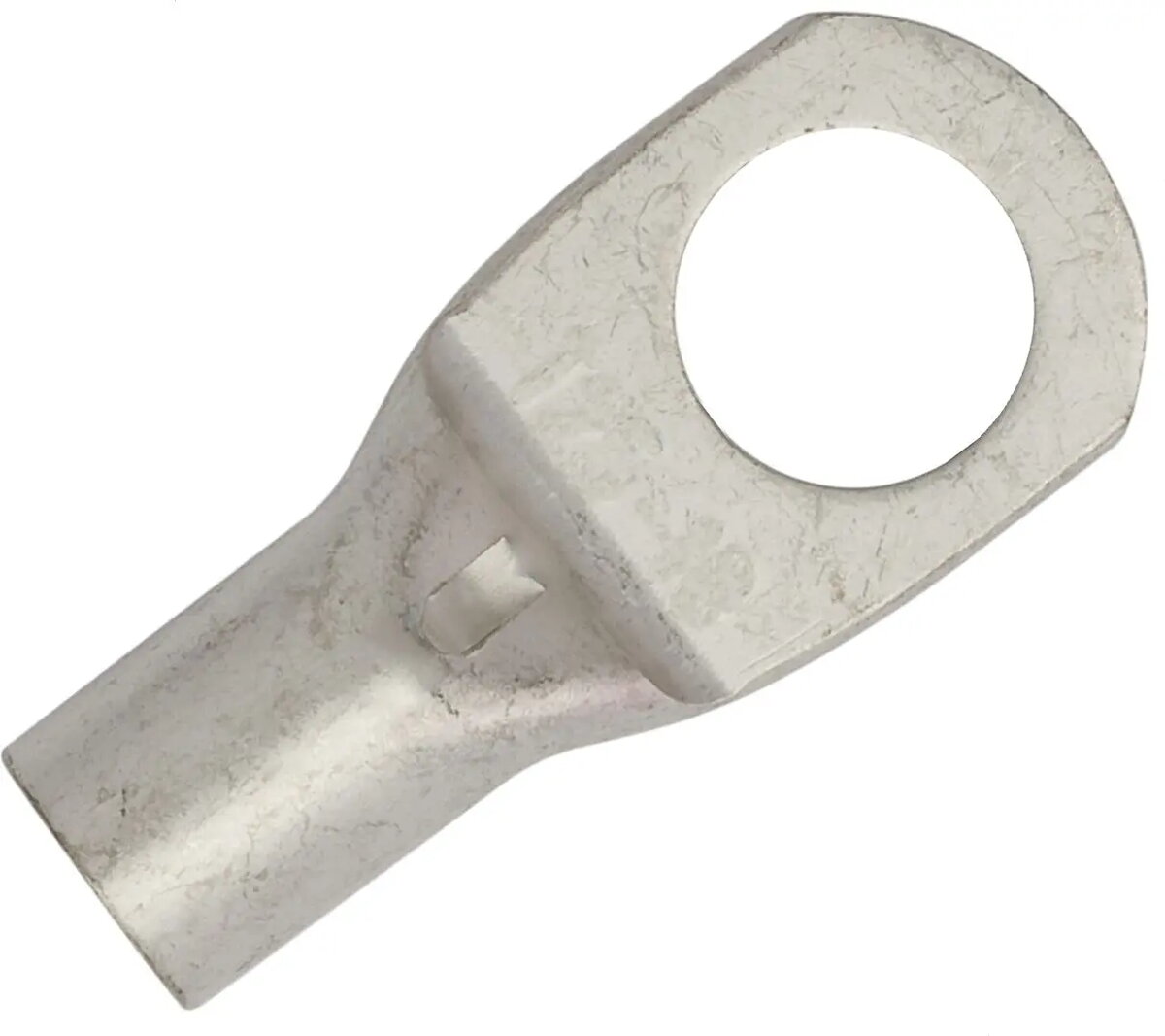

EM Group Tubular Ring Terminal 70mm² M8 Tinned Copper

The EM Group Tubular Ring Terminal 70mm² M8 is a professional-grade electrical component engineered for high-performance connectivity in demanding environments. Constructed from high-purity copper and finished with a protective tin coating, this terminal provides an optimal balance between electrical conductivity and long-term environmental durability. Its tubular design allows for precise cable insertion, ensuring a robust mechanical and electrical bond when crimped correctly onto 70mm² conductors.

Advantages

The primary benefit of this tinned copper terminal is its exceptional resistance to oxidation and corrosion, which is essential for maintaining low-resistance connections over extended periods. The high-quality copper material ensures maximum current-carrying capacity, minimizing heat generation at the connection point. Furthermore, the standardized M8 stud hole size offers broad compatibility with various busbars, battery terminals, and electrical equipment, making it a versatile choice for heavy-duty power distribution systems.

Suitable for

• Industrial power distribution panels
• Automotive battery and starter cabling
• Renewable energy system wiring
• Heavy machinery electrical installations
• Grounding and bonding applications

This terminal may not be suitable for applications involving extremely high-frequency signals where specialized shielding is required, or in environments where the cable size does not match the 70mm² specification. It is also not intended for use with aluminum cables without appropriate bimetallic transition adapters, as direct contact can lead to galvanic corrosion.

Key specifications

• Material: Tinned copper
• Cable cross-section: 70mm²
• Stud hole diameter: M8
• Design: Tubular ring terminal

To use this terminal, first strip the insulation from the end of the 70mm² cable to the appropriate length. Insert the conductor fully into the tubular barrel of the terminal. Using a professional hydraulic or manual crimping tool designed for 70mm² lugs, apply sufficient pressure to create a permanent, gas-tight connection. Ensure the crimp is centered on the barrel for optimal mechanical strength.

What to consider before purchase

• Verify that your cable cross-section is exactly 70mm²
• Ensure the M8 stud size matches your connection point
• Confirm you have access to a compatible heavy-duty crimping tool
• Check the environmental conditions to ensure tinned copper is appropriate for your specific application

For the best results, always use a calibrated crimping tool and ensure the cable strands are clean and free of oxidation before insertion. Applying a small amount of electrical joint compound can further enhance the connection quality in highly corrosive environments.
