Dot Matrix Printer Epson PLQ-50M 180 x 360 DPI 630 cps

Short description

The Epson PLQ-50M is a reliable dot matrix printer featuring a maximum print speed of 630 cps and a resolution of 180 x 360 DPI. It is designed for high-volume printing tasks, making it ideal for businesses that require durable and efficient printing solutions. With a print head life of 600 million characters and a mean time between failures of 35,000 hours, this printer ensures longevity and reliability.

Warranty: 2 Years

SKU: 10466935

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

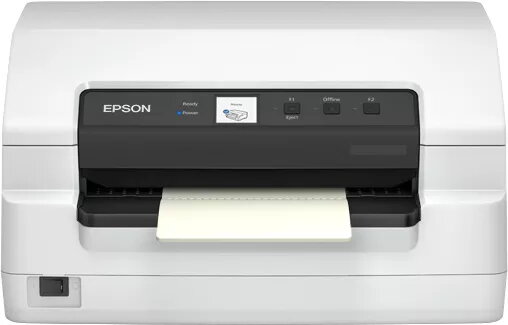

The Epson PLQ-50M is a 24-pin dot matrix printer engineered for high-volume, reliable printing in environments such as banks and post offices. It supports passbook handling, features an LCD screen for easier operation, and offers a long mean time between failures of 35,000 hours. The PLQ-50M provides robust dot matrix output with a maximum resolution of 180 x 360 DPI and is compatible with existing Epson passbook ribbons.

Advantages

The PLQ-50M combines high durability and low running costs: a print head life rated for 600 million characters, ribbon compatibility across the Epson passbook range, and a cost-effective design. It delivers fast output — up to 630 characters per second depending on mode — and can produce up to 6 copies simultaneously. An LCD screen improves usability for operators, while standard RS-232 and USB 2.0 interfaces ensure easy integration.

Suitable for

Banking passbook printing and transaction records
Post office forms and multi-part documentation
High-volume environments requiring reliable continuous operation
Environments where multi-copy carbon sets are needed (up to 6 copies)

Key specifications

Print technology: 24-pin dot matrix
Maximum resolution: 180 x 360 DPI
Maximum speed: up to 630 characters per second (model-dependent; HSD up to 560 cps at 10 cpi)
Columns (printing width): 94
Print head life: 600 million characters
MTBF (Mean Time Between Failures): 35,000 hours
Copies: up to 6-part printing
Interfaces: RS-232, USB 2.0
Colours: Black, White
MPN: C11CJ10403, EAN: 8715946674490

How to use

Install the PLQ-50M on a stable surface and connect to a host via RS-232 or USB 2.0 according to your system requirements. Load the passbook or continuous forms following the guides on the printer; use approved Epson passbook ribbons for best results. Configure the printer driver on your computer to match the required character pitch (for example 10 cpi for HSD modes) and the correct form length, then calibrate the passbook feed using the LCD menu to ensure alignment.

Usage recommendations

For reliable long-term operation, use genuine Epson passbook ribbons and perform periodic maintenance checks on the print head and tractor feed. Store consumables and paper in a dry environment and configure regular backups and monitoring where the printer is used in mission-critical banking or postal workflows.

Specifications

Maximum resolution:: 180 x 360
Print head:: 24-pin
Maximum printing width (columns):: 94
Product colour:: Black, White
Standard interfaces:: RS-232, USB 2.0

All features

Other features

Print technology:: Dot Matrix
Needles:: 24 (2 x 12)

Printing

Maximum resolution:: 180 x 360
Maximum print speed:: 630 cps
Character pitch:: 10
Maximum number of copies:: 6 copies
Built-in barcodes:: UPC-E, CODABAR (NW-7), Code 128 (A/B/C), Code 39, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, UPC-A
Maximum printing width (columns):: 94
Character sets:: PCAPTEC, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO 8859-15, Roman 8, Italic
Maximum print speed (LQ):: 140 cps
Maximum print speed (draft):: 420 cps
Number of characters:: 14
Maximum print speed (NLQ):: 210 cps

Endurance

Mean time between failures (MTBF):: 35000 h
Print head:: 24-pin
Print head life:: 600 million characters

Power

AC input frequency:: 50 - 60
AC input voltage:: 100-240

Operational conditions

Operating relative humidity (H-H):: 10 - 80
Storage temperature (T-T):: -30 - 60
Operating temperature (T-T):: 5 - 38

Logistics data

Harmonized System (HS) code:: 84433210
Products per pallet (UK):: 48 pc(s)

Weight & dimensions

Height:: 203 mm
Width:: 384 mm
Depth:: 280 mm
Package depth:: 445 mm
Package height:: 255 mm
Package width:: 365 mm

Features

Buffer size:: 128 KB
Product colour:: Black, White
Country of origin:: Indonesia
Quantity per pack:: 1 pc(s)
Page description languages:: PPDS, Epson ESC/P2

Packaging data

Package weight:: 10400 g

Ports & interfaces

Standard interfaces:: RS-232, USB 2.0
