Projector Epson EB-685Wi

Name: Projector Epson EB-685Wi Ultra short V11H741040
Brand: Epson
SKU: 251693
Price: 2137.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Projector Epson EB-685Wi Ultra short throw 3500 ANSI lumens

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Epson EB-685Wi is an ultra short throw projector with a brightness of 3500 ANSI lumens and 3LCD technology. It features a WXGA resolution (1280x800) and a lamp light source with a lifespan of up to 5000 hours (10000 hours in economic mode). With a manual focus and a fixed focal length of 3.7 mm, it supports various video color modes including Blackboard, Cinema, and Presentation, making it ideal for diverse presentation needs.

Available for order: 17 pcs.

Warranty: 2 Years

SKU: 251693

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 15.91 € (Weight: 20.60 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Locker

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 74.38 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Epson EB-685Wi is an ultra short throw interactive projector with 3,500 ANSI lumens brightness and WXGA (1280×800) resolution. Its ultra-short-throw design lets you project large images from a very short distance with reduced shadows and glare, while 3LCD technology provides balanced white and colour light output for vivid, clear images. The projector supports split-screen display, optional wireless connectivity via the iProjection app and dual-pen interactivity for simultaneous annotation.

Advantages

High brightness and 3LCD image processing deliver bright, natural colours and clear images even in well-lit rooms. The dual-pen functionality enables two users to annotate at the same time with different pen attributes. Ultra-short-throw optics minimise shadows and glare when presenting from close range. Long lamp life in eco mode increases reliability and reduces maintenance intervals.

Suitable for

Classroom lessons and interactive teaching
Corporate meeting rooms and presentations
Collaborative workshops and training sessions
Spaces where a large image is needed from a short throw distance

Key specifications

Brightness: 3,500 ANSI lumens
Native resolution: WXGA (1280×800)
Projection technology: 3LCD
Contrast ratio: 14,000:1
Lamp life: up to 10,000 hours (eco mode)
Weight: 5.9 kg
Fixed focal length: 3.7 mm (ultra short throw)
Screen size compatibility: approx. 1524–2540 mm
Colour: White / Grey

How to use

Place the EB-685Wi close to the projection surface according to the ultra-short-throw placement guidelines so it produces a large image with minimal shadows. Connect your source device via HDMI or enable optional wireless projection using the iProjection app on compatible smart devices and Chromebooks. Use the interactive pens to annotate directly on the projected image; two pens can be used simultaneously for collaborative work. Adjust focus manually as needed for a sharp image.

Usage recommendations

For best results in classrooms and meeting rooms, use the projector in eco mode to extend lamp life, position it on or near the short-throw mount to minimise presenter shadows, and enable split-screen when you need to show two content sources simultaneously.

Specifications

Projector brightness:: 3500 ANSI lumens
Weight:: 5.9 kg
Projection technology:: 3LCD
Projector native resolution:: WXGA (1280x800)
Native aspect ratio:: 16:10
Screen size compatibility:: 1524 - 2540
Product colour:: White, Grey

All features

Projector

Contrast ratio (typical):: 14000:1
Vertical scan range:: 100 - 120
Projection technology:: 3LCD
Projector brightness:: 3500 ANSI lumens
Screen size compatibility:: 1524 - 2540
Keystone correction, vertical:: -3 - 3
Keystone correction, horizontal:: -3 - 3
Contrast ratio (dynamic):: 14000:1
Projector brightness (economic mode):: 2900 ANSI lumens
Matrix size:: 0.59 "
Vertical synchronization (min):: 0.1 kHz
Vertical synchronization (max):: 0.12 kHz
Native aspect ratio:: 16:10
Supported aspect ratios:: 16:10
Projection distance (wide):: 0 - 0.4
Projection distance (tele):: 0 - 0.6
Projector native resolution:: WXGA (1280x800)
Colour light output:: 3500 ANSI lumens
White light output:: 3500 ANSI lumens
Number of colours:: 1.07 billion colours

Light source

Lamp power:: 250 W
Light source type:: Lamp
Service life of light source (economic mode):: 10000 h
Service life of light source:: 5000 h

Lens system

Focus:: Manual
Focal length range:: 3.7
Throw ratio:: 0.28 - 0.37:1
Zoom ratio:: 1.35:1
Fixed focal length:: 3.7 mm
Zoom type:: Auto

Video

Full HD:: No
3D:: No
Video processing:: 10 bit
Video colour modes:: Blackboard, Cinema, Dynamic, Presentation, sRGB, Whiteboard

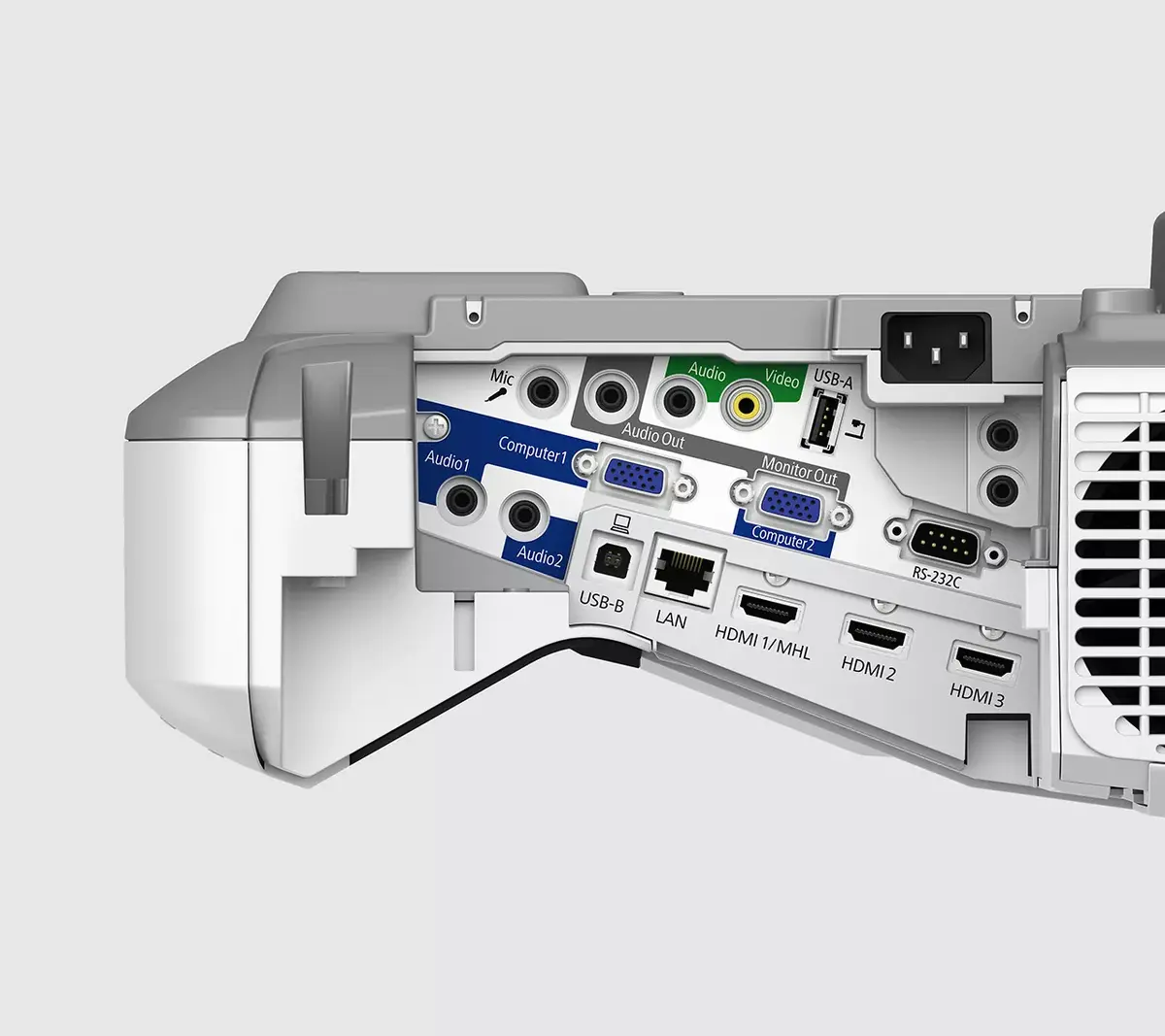

Ports & interfaces

Serial interface type:: RS-232C
USB 2.0 ports quantity:: 3
Headphone outputs:: 1
Microphone in:: Yes
DVI port:: No
VGA (D-Sub) ports quantity:: 3
S-Video inputs quantity:: 1
Composite video in:: 1
Audio (L/R) in:: 1
Component video (YPbPr/YCbCr) in:: 0
AC (power) in:: Yes
HDMI ports quantity:: 3

Network

Ethernet LAN:: Yes
Ethernet LAN (RJ-45) ports:: 1

Features

Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.: 35 dB
Compatible operating systems:: Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1
Country of origin:: Philippines
Noise level (economic mode):: 30 dB
Password protection:: Yes
Interactive:: Yes
Interactive input supported:: Interactive pen

Multimedia

RMS rated power:: 16 W
Built-in speaker(s):: Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 354 W
Power source:: AC
Power consumption (standby):: 0.39 W
Power consumption (economy mode):: 310 W
AC input frequency:: 50 - 60
AC input voltage:: 100-240

Weight & dimensions

Weight:: 5.9 kg
Package weight:: 20041 g
Height:: 149 mm
Width:: 367 mm
Depth:: 400 mm
Package depth:: 730 mm
Package height:: 335 mm
Package width:: 490 mm

Logistics data

Products per pallet:: 12 pc(s)
Pallet gross weight:: 0 g
Quantity per pack:: 1 pc(s)
Pallet gross width:: 800 mm
Pallet gross length:: 1200 mm
Pallet gross height:: 150 mm
Products per pallet layer:: 2 pc(s)
Harmonized System (HS) code:: 85286200
Products per pallet layer (UK):: 2 pc(s)
Products per pallet (UK):: 12 pc(s)
Pallet weight (UK):: 0 g
Pallet length (UK):: 1200 mm
Pallet width (UK):: 1000 mm
Pallet height (UK):: 150 mm

Other features

RS-232 ports:: 1
RS-232C:: Yes

Storage

Card reader integrated:: No

Design

Cable lock slot:: Yes
LED indicators:: Y
Product colour:: White, Grey
Placement:: Wall
Market positioning:: Ulta short throw
Product type:: Ultra short throw projector
Cable lock slot type:: Kensington

Display

Built-in display:: No

Packaging content

Bundled software:: Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projektor Management
Remote control included:: No
Cables included:: AC
Manual:: Yes
Quick start guide:: Yes
WLAN adapter included:: Yes

Software

Software support:: via: AMX, Crestron (Network), Control4
Windows operating systems supported:: Windows 10, Windows 8, Windows 8.1

Operational conditions

Operating relative humidity (H-H):: 20 - 80
Storage temperature (T-T):: -10 - 60
Operating temperature (T-T):: 5 - 35
Storage relative humidity (H-H):: 10 - 90

Technical details

USB display function:: 3 in 1: Image / Mouse / Sound

Hide Show all
