Switching actuator eQ-3 AG HmIP-FSM16

Name: Switching actuator eQ-3 AG HmIP-FSM16 150239A0
Brand: eQ-3
SKU: 1501402
Price: 78.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Switching actuator eQ-3 AG HmIP-FSM16 Photo 3

Switching actuator eQ-3 AG HmIP-FSM16 Photo 4

Switching actuator eQ-3 AG HmIP-FSM16 Photo 5

Switching actuator eQ-3 AG HmIP-FSM16 Photo 6

Sale OUT! Discount 4%

You save: 3.50 €

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Usual Price: 81.99 €

Your Price:

The discount is valid from 12.06.2026 to 12.07.2026

Short description

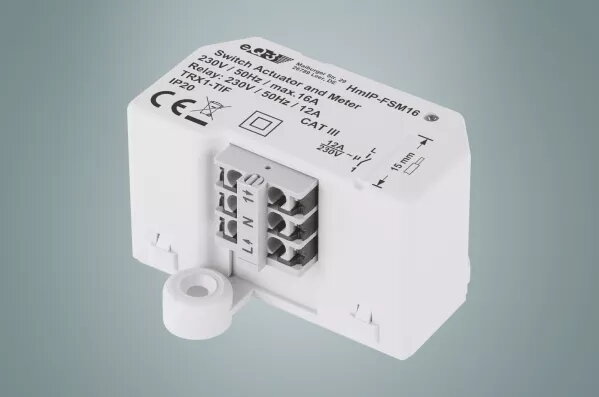

The eQ-3 AG HmIP-FSM16 is a flush-mounted switching actuator designed for reliable control of electrical devices. Operating at a frequency of 868.3 MHz, it supports a maximum switching capacity of 3680 W and is powered by AC with an input voltage of 230 V. Its compact dimensions (54 mm width, 41 mm depth, 33 mm height) make it easy to install in tight spaces. Ideal for smart home applications, it enhances convenience and energy efficiency.

Available for order: 15 pcs.

Warranty: 2 Years

SKU: 1501402

Manufacturer: eQ-3

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.12 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

09.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 26.16 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 2.18 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The eQ-3 AG HmIP-FSM16 Switching actuator and meter (16 A) is a flush-mounted device for the Homematic IP smart home system. It switches connected loads and measures energy consumption with high precision. With a peak switching capacity of 3680 W (for up to 20 minutes) and a continuous rating of 2760 W, the device is suitable for high loads up to 16 A. Its compact dimensions (54 × 41 × 33 mm) allow installation in standard flush-mounted boxes and in surface-mounted junction boxes (e.g. ELS Spelsberg Abox 25) for use in damp basements or outdoor protected locations. Measurement deviations are only ±0.03 W, enabling precise detection of low standby consumption. Control is possible via the free Homematic IP app, Homematic IP Remote Control, the Home Control Access Point or the Homematic CCU2 and compatible partner solutions.

Advantages

The switching actuator provides a large switching capacity for heavy loads up to 16 A while maintaining compact dimensions for flexible installation. High measuring accuracy allows precise energy monitoring, including low standby consumption. The device is suitable for use in damp or protected outdoor locations when installed in appropriate junction boxes. It supports multiple control options through the Homematic IP ecosystem and compatible central units without recurring fees when used with the Homematic IP app and Home Control Access Point.

Suitable for

Switching and metering of high-power household loads (electric heaters, water pumps)
Energy monitoring including standby consumption measurement
Flush-mounted installations in standard electrical boxes
Surface-mounted junction boxes in damp basements or protected outdoor locations
Integration into Homematic IP smart home setups and CCU2/partner solutions

Key specifications

Brand: eQ-3
Model / MPN: HmIP-FSM16 / 150239A0
EAN: 4047976502394
Switching current: up to 16 A
Peak switching capacity: 3680 W (up to 20 minutes)
Continuous load: 2760 W
Measurement accuracy: ±0.03 W
Supply voltage: AC 230 V
Frequency: 868.3 MHz
Dimensions (W×D×H): 54 × 41 × 33 mm

How to use

Install the HmIP-FSM16 in a compatible flush-mounted or surface-mounted junction box according to local wiring regulations and the device installation instructions. Connect the load and supply conductors to the designated terminals, ensure proper earthing and verify the enclosure protection if installed in damp or outdoor locations. Pair the actuator with the Homematic IP system using the Homematic IP app, Homematic IP Remote Control, Home Control Access Point or the CCU2. Use the app or remote control to switch loads remotely and monitor energy consumption data.

Usage recommendations

For reliable operation and safety, use the actuator only within the specified continuous and peak load limits, observe local electrical codes during installation, and place the device in suitable junction boxes (e.g. ELS Spelsberg Abox 25) when installed in damp or outdoor-protected areas. Regularly check connections and firmware updates via compatible Homematic interfaces.

All features

Weight:: 0.049 kg
Operating temperature (T-T):: 5 - 35
Height:: 33 mm
Input voltage:: 230
Width:: 54 mm
Depth:: 41 mm
Product colour:: White
Power consumption (standby):: 0.2 W
Input frequency:: 50
Package depth:: 112 mm
Package height:: 48 mm
Package width:: 122 mm
Housing material:: Plastic
Mounting type:: Flush-mounted
Current:: 16 A
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20
Power source type:: AC
Built-in display:: No
Maximum outdoor range:: 180 m
Frequency:: 868.3 MHz
Product type:: Switching actuator
Maximum switching capacity:: 3680 W
