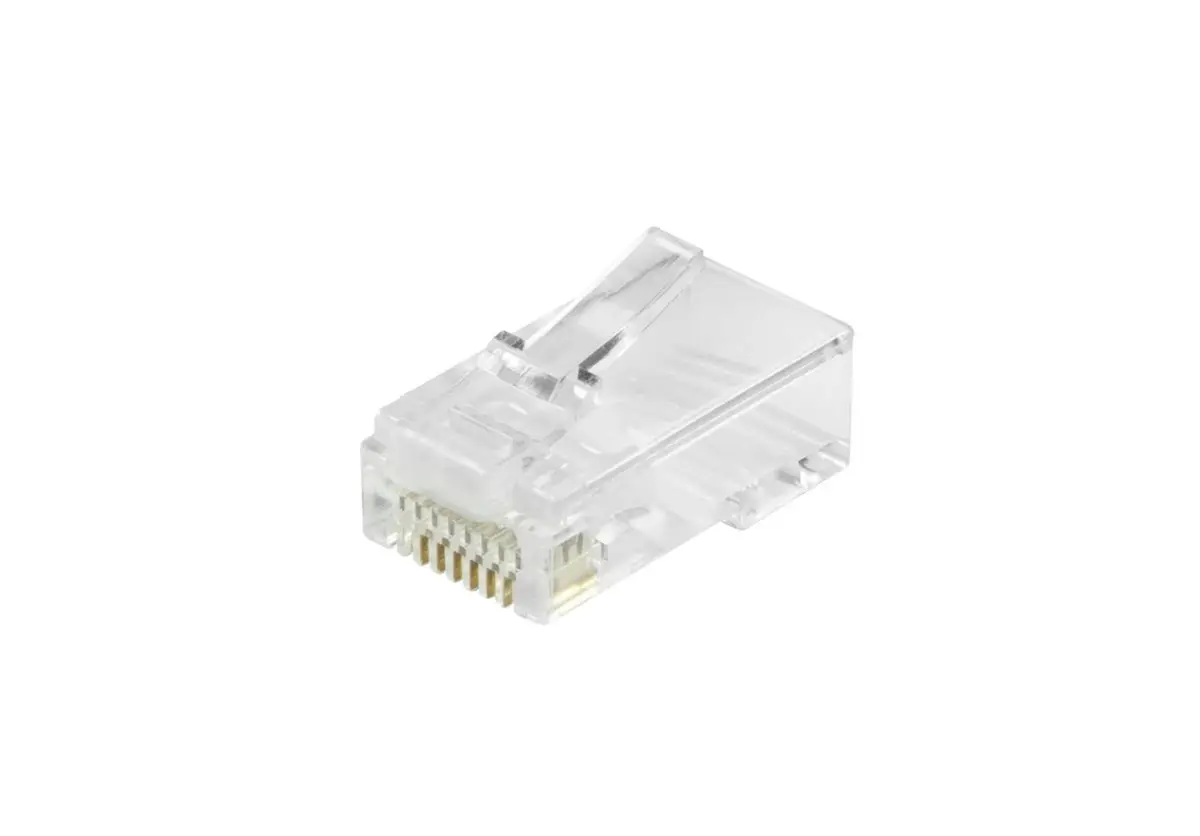

Equip Cat.6A RJ45 Pass Through Male Connector, 100 Pieces

The Equip Cat.6A RJ45 Pass Through Male Connector is a high-performance solution designed for efficient and reliable Ethernet network cabling. This set includes 100 transparent connectors, specifically engineered to simplify the termination process for Cat.6A standards. The pass-through design allows individual wire conductors to be pushed completely through the connector housing, enabling installers to verify the correct wiring sequence visually before crimping, which significantly reduces the risk of connection errors.

Advantages

The primary benefit of this pass-through design is the substantial reduction in installation time, as it eliminates the need for precise pre-cutting of wire lengths. By allowing the cable jacket to be pulled further into the connector, the design minimizes the length of untwisted wire pairs, which is critical for maintaining signal integrity and reducing crosstalk in high-speed 10 Gigabit networks. The transparent housing further assists in error prevention, while the gold-plated contacts ensure superior conductivity and long-term resistance against oxidation.

Suitable for

• Professional data center network installations
• Office structured cabling projects
• Creating custom-length Ethernet patch cables
• High-bandwidth home or enterprise networking

These connectors may not be suitable for applications requiring shielded (STP/FTP) cabling, as they are designed for U/UTP configurations. Additionally, they are intended for specific wire gauges; using cables outside the 23–26AWG range may result in poor contact or mechanical failure.

Key specifications

• Connector type: RJ-45 Male
• Standard: Cat.6A U/UTP
• Material: Transparent high-quality plastic
• Contact plating: Gold-plated for enhanced conductivity
• Compatibility: Suitable for 23–26AWG solid and stranded cables
• Quantity: 100 pieces per pack
• Compliance: CE and RoHS certified

To use these connectors, strip the outer jacket of your Cat.6A cable, arrange the wires according to the T568A or T568B standard, and insert them through the front of the connector. Once the wires are verified to be in the correct order, use a compatible pass-through crimping tool to crimp the connector and trim the excess wire in one motion. Ensure that the cable jacket is positioned inside the connector housing before crimping to provide proper strain relief.

What to consider before purchase

• Verify that your crimping tool supports pass-through RJ45 connectors.
• Ensure your cable type is U/UTP to match the connector specifications.
• Check the wire gauge of your cable to ensure it falls within the 23–26AWG range.

For optimal performance in 10 Gigabit networks, always ensure that the wire pairs remain twisted as close to the point of termination as possible and verify the wire order before final crimping.
