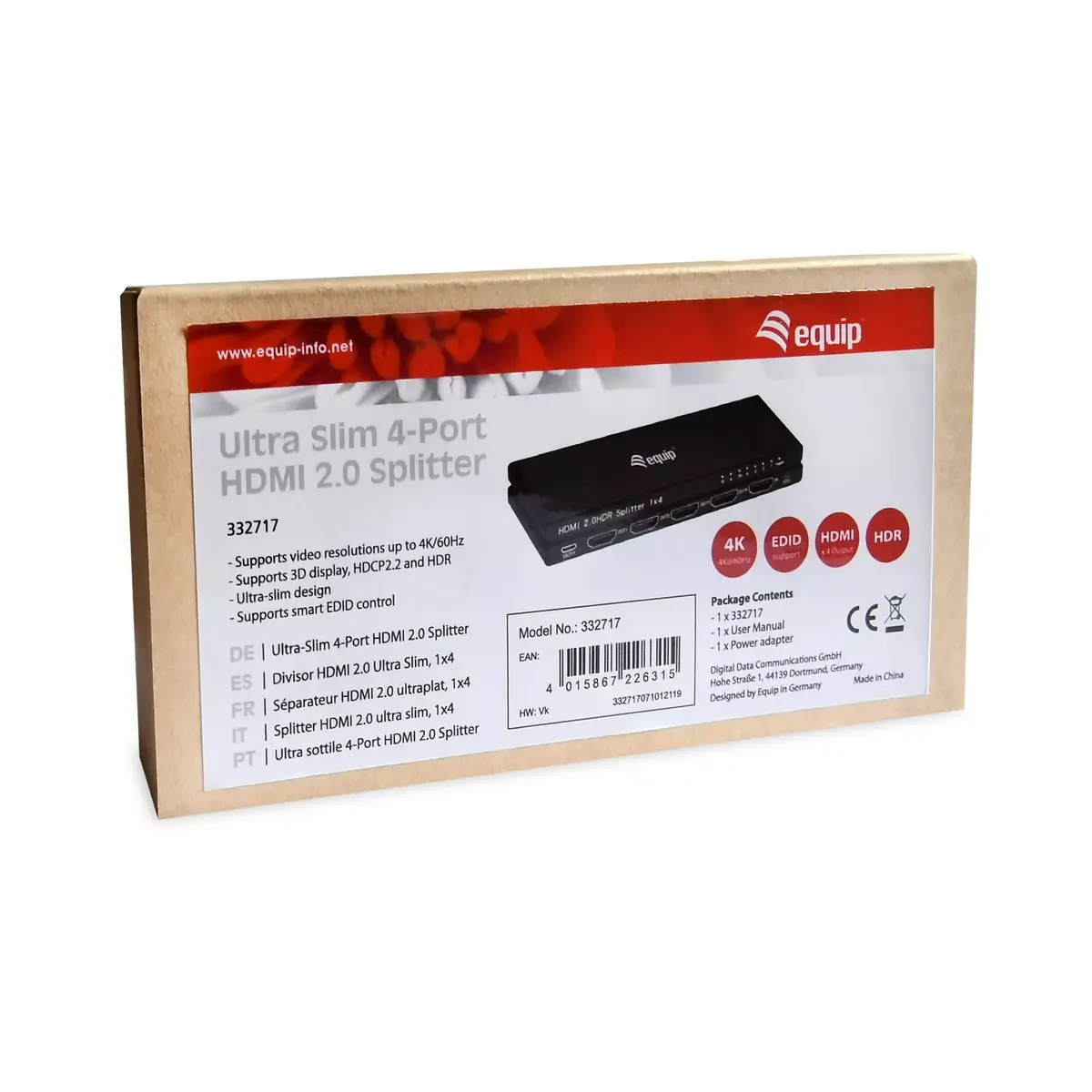

HDMI Splitter Equip Ultra Slim 4-Port Photo 3

HDMI Splitter Equip Ultra Slim 4-Port Photo 4

HDMI Splitter Equip Ultra Slim 4-Port Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

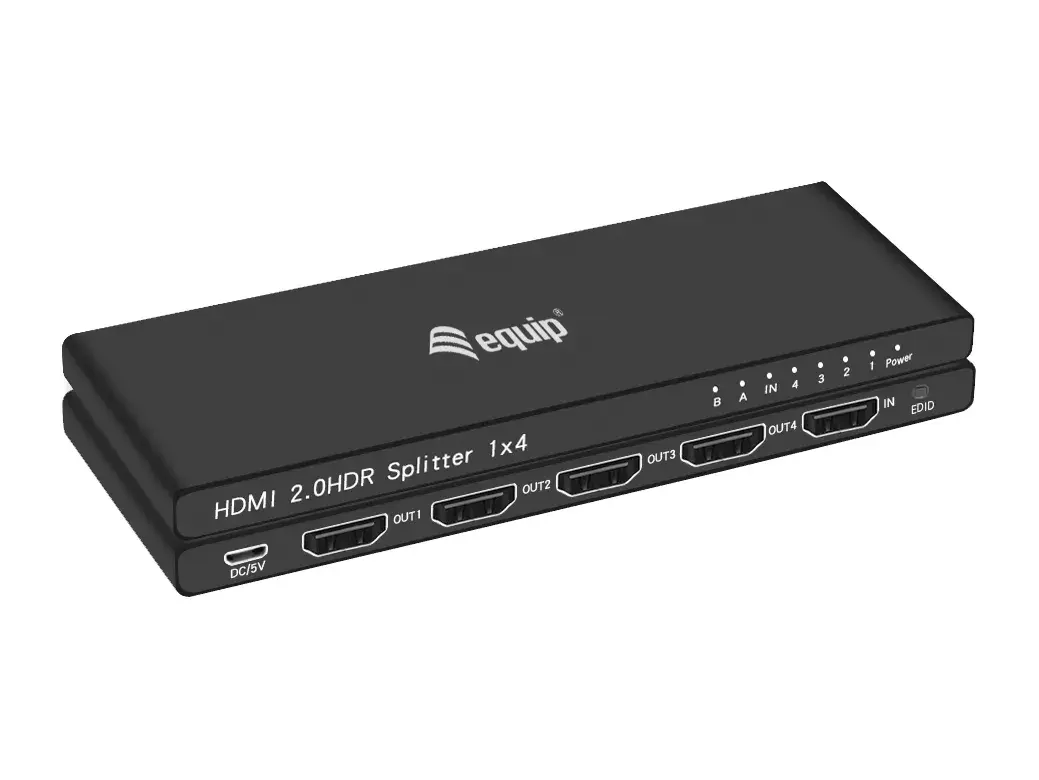

The Equip Ultra Slim 4-Port HDMI 2.0 Splitter allows you to connect up to four HDMI devices with a maximum resolution of 3840 x 2160 pixels. Its compact design (5.2 mm width) and aluminum housing ensure durability and portability. With an input current of 1 A, this splitter is efficient and easy to use, making it ideal for home theaters or professional setups.

Available at price 62.99 €: 103 pcs.

Total available for order: 412 pcs.

Warranty: 2 Years

SKU: 4336679

Charging device included

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.10.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.10.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.30 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa

09.10.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

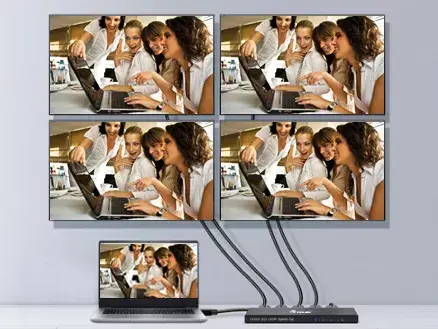

The EQUIP Ultra Slim 4-Port HDMI 2.0 Splitter distributes a single HDMI source to multiple displays, providing synchronized high-definition video on up to four screens. Designed for home theaters, conferences, retail displays and educational campuses, the compact aluminum device supports resolutions up to 3840 x 2160 (UHD 4K) at 60 Hz and delivers stable playback with a total bandwidth of 18 Gbps.

Advantages

This HDMI splitter supports UHD 4K/60 Hz, HDR, HDCP 2.2 and 3D, allowing the same audio and video signal to be shown on several TVs, monitors or projectors without repeatedly reconnecting cables. The ultra-slim aluminum housing ensures portability and durability while the Auto-EDID function automatically reads display EDID data for optimal compatibility and output negotiation.

Suitable for

Home theater systems
Conference rooms and trade show booths
Retail and digital signage displays
School and campus AV setups

Key specifications

Brand: EQUIP
Model: Ultra Slim 4-Port HDMI 2.0 Splitter (MPN: 332717, EAN: 4015867226315)
Input/Output: HDMI (splits one input to up to four outputs)
Maximum resolution: 3840 x 2160 @ 60 Hz (UHD 4K)
Bandwidth: up to 18 Gbps
Supported features: HDR, HDCP 2.2, 3D, Auto-EDID
Video ports quantity: 5 (as listed in product attributes)
Color: Black; Housing: aluminum; Weight: 0.125 kg
Input current: 1 A

How to use

Connect the HDMI source (player, PC or set-top box) to the splitter’s input, then connect up to four HDMI displays to the splitter’s outputs. Power the unit using the supplied adapter and ensure all connected displays are switched on. The device will automatically read EDID information from the displays to negotiate the optimal common output format; if needed, verify display settings on each output device to match the desired resolution and HDR settings.

Usage recommendations

For stable 4K/60 Hz performance, use high-quality HDMI 2.0 cables and keep cable lengths as short as practical. When using multiple displays with different capabilities, check each display’s EDID and set the desired common resolution manually on the source device if automatic negotiation does not yield the preferred result.

Specifications

Video ports quantity: The number of ports (sockets) for video input or output.: 5
Video port type: The type of socket in the device for connecting a video e.g. SCART.: HDMI

All features

Logistics data

Master (outer) case height:: 365 mm
Master (outer) case length:: 400 mm
Master (outer) case width:: 276 mm
Products per master (outer) case:: 50 pc(s)
Master (outer) case gross weight:: 12300 g
Country of origin: Country where the device is made. Aka Country of manufacture (COM).: China
Harmonized System (HS) code:: 85176990

Packaging data

Package height: The distance from the top to the bottom of the packaging.: 17 mm
Package width: The distance from one side of the packaging to the other.: 8 mm
Package weight: Weight of the packaged product.: 234 g
Package depth: The distance from the front to the back of the packaging.: 4 mm
Package type: The type of product package e.g. box.: Box
Quantity per pack:: 1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.125 kg
Height: The measurement of the product from head to foot or from base to top.: 14.7 mm
Depth: The distance from the front to the back of something.: 0.95 mm
Width: The measurement or extent of something from side to side.: 5.2 mm

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 40

Packaging content

AC adapter included:: Yes
Manual:: Yes

Video

Colour depth:: 32 bit

Certificates

Certification:: CE & RoHS

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.: Yes
Video out:: 4x HDMI
HDMI version:: 2.0
Video ports quantity: The number of ports (sockets) for video input or output.: 5
Video port type: The type of socket in the device for connecting a video e.g. SCART.: HDMI

Power

Input current:: 1

Features

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.: Yes
LED indicators:: Y
Maximum resolution: The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.: 3840 x 2160
Number of displays supported: The number of displays that can be used with this product.: 4
HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.: Yes
Product colour: The colour e.g. red, blue, green, black, white.: Black
HDCP version:: 2.2
3D: The device can be used with 3D technology.: Yes
HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).: 4K Ultra HD
Housing material: What the casing of the product is made of.: Aluminium
