Barcode Scanner Equip 1D Laser USB

Name: Handheld Barcode Scanner Equip 1D 351022
Brand: EQUIP
SKU: 10904890
Price: 25.49 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Handheld Barcode Scanner Equip 1D Laser USB Wired Black ABS

Barcode Scanner Equip 1D Laser USB Photo 1

Barcode Scanner Equip 1D Laser USB Photo 2

Barcode Scanner Equip 1D Laser USB Photo 3

Barcode Scanner Equip 1D Laser USB Photo 4

Barcode Scanner Equip 1D Laser USB Photo 5

Barcode Scanner Equip 1D Laser USB Photo 6

Barcode Scanner Equip 1D Laser USB Photo 7

Barcode Scanner Equip 1D Laser USB Photo 8

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Equip USB 1D Laser Barcode Scanner is a handheld device designed for efficient scanning of 1D barcodes. It features a wired USB connection, a 1.8 m cable, and is made from durable ABS material. With an IP54 rating, it offers protection against dust and splashes, making it suitable for various environments. Weighing only 106 g, it is lightweight and easy to handle, ensuring comfortable use during extended periods.

Available at price 25.49 €: 29 pcs.

Total available for order: 4275 pcs.

Warranty: 2 Years

SKU: 10904890

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

02.10.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

07.10.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.45 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa

07.10.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Equip USB 1D Laser Barcode Scanner with Stand is a handheld wired scanner designed for reliable reading of one-dimensional barcodes in retail, warehousing and inventory environments. It features a laser sensor, a 1.8 m USB cable for direct connection to computers or point-of-sale systems, a durable ABS housing and an IP54 rating for protection against dust and splashes. The scanner weighs 106 g and includes a stand for optional hands-free, presentation-style scanning.

Advantages

The scanner provides fast and accurate 1D barcode capture using a laser sensor and supports common linear formats such as Code 128, Code 39, EAN-13 and UPC-A. USB wired connectivity ensures simple plug-and-play integration with PCs and POS terminals. The included stand allows hands-free operation to speed up repetitive scanning tasks, while the compact, lightweight ABS housing and IP54 ingress protection make it suitable for everyday commercial use.

Suitable for

Retail checkout and point-of-sale scanning
Stocktaking and inventory management
Warehouse receiving and order picking
Library and document tracking (ISBN/ISSN)

Key specifications

Scanner type: 1D laser
Sensor type: Laser
Connectivity: Wired USB (1.8 m cable)
Working distance: up to 700 mm
Maximum read rate: 200 reads/s
Supported 1D codes: Code 11, Codabar, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E
2D codes: Not supported
Housing material: ABS (acrylonitrile butadiene styrene)
Product colour: Black
Weight: 0.106 kg
Ingress protection: IP54

How to use

Connect the scanner to a computer or POS terminal using the supplied USB cable. For handheld use, aim the scanner at the barcode and press the trigger to read; for hands-free operation place the scanner in the stand and present barcodes to the scanning window. Ensure the barcode is within the working distance (up to 700 mm) and aligned with the laser for reliable reads. No special drivers are typically required for basic keyboard-emulation operation; follow any vendor instructions for advanced configuration.

Usage recommendations

Use the presentation stand for high-volume checkout or packing stations to reduce operator fatigue. Keep the scanner window clean and avoid strong ambient light aimed directly at the scan window. Verify barcode quality and orientation when encountering read errors, and consult the user manual for programming or host interface settings.

Specifications

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.106 kg
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.: Laser
Scanner type: Indicates the type of scanner this product is.: 1D
Type: Characteristics of the device.: Handheld bar code reader
Power source type: What the power source is.: USB
Product colour: The colour e.g. red, blue, green, black, white.: Black
Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.: USB
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.: Code 11, UPC-E, Codabar, UPC-A, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, Interleaved 2 of 5
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.: Not supported

All features

Other features

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.: Yes
Windows operating systems supported: Windows vesions wich can be used with the device.: Windows 11 Enterprise, Windows 7 x64, Windows 7 Ultimate, Windows 7 Starter x64, Windows 7 Starter, Windows 7 Professional x64, Windows 7 Professional, Windows 7 Home Premium x64, Windows 7 Home Premium, Windows 7 Home Basic x64, Windows 7 Home Basic, Windows 7 Enterprise x64, Windows 7 Enterprise, Windows 7, Windows 7 Ultimate x64, Windows 11, Windows 10 x64, Windows 10 Pro x64, Windows 10 Pro, Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows XP Home, Windows XP, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3): Yes
Mobile operating systems supported: The operating systems e.g. Android, iOS, that can be used with the mobile device.: Android, iOS

Logistics data

Master (outer) case height:: 525 mm
Master (outer) case width:: 440 mm
Master (outer) case gross weight:: 15500 g
Master (outer) case length:: 485 mm
Products per master (outer) case:: 30 pc(s)
Harmonized System (HS) code:: 8471900090

Technical details

Sustainability compliance:: Yes
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: CE, RoHS

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -30 - 70

Packaging data

Package weight: Weight of the packaged product.: 465 g
Package height: The distance from the top to the bottom of the packaging.: 100 mm
Package depth: The distance from the front to the back of the packaging.: 207 mm
Package width: The distance from one side of the packaging to the other.: 150 mm

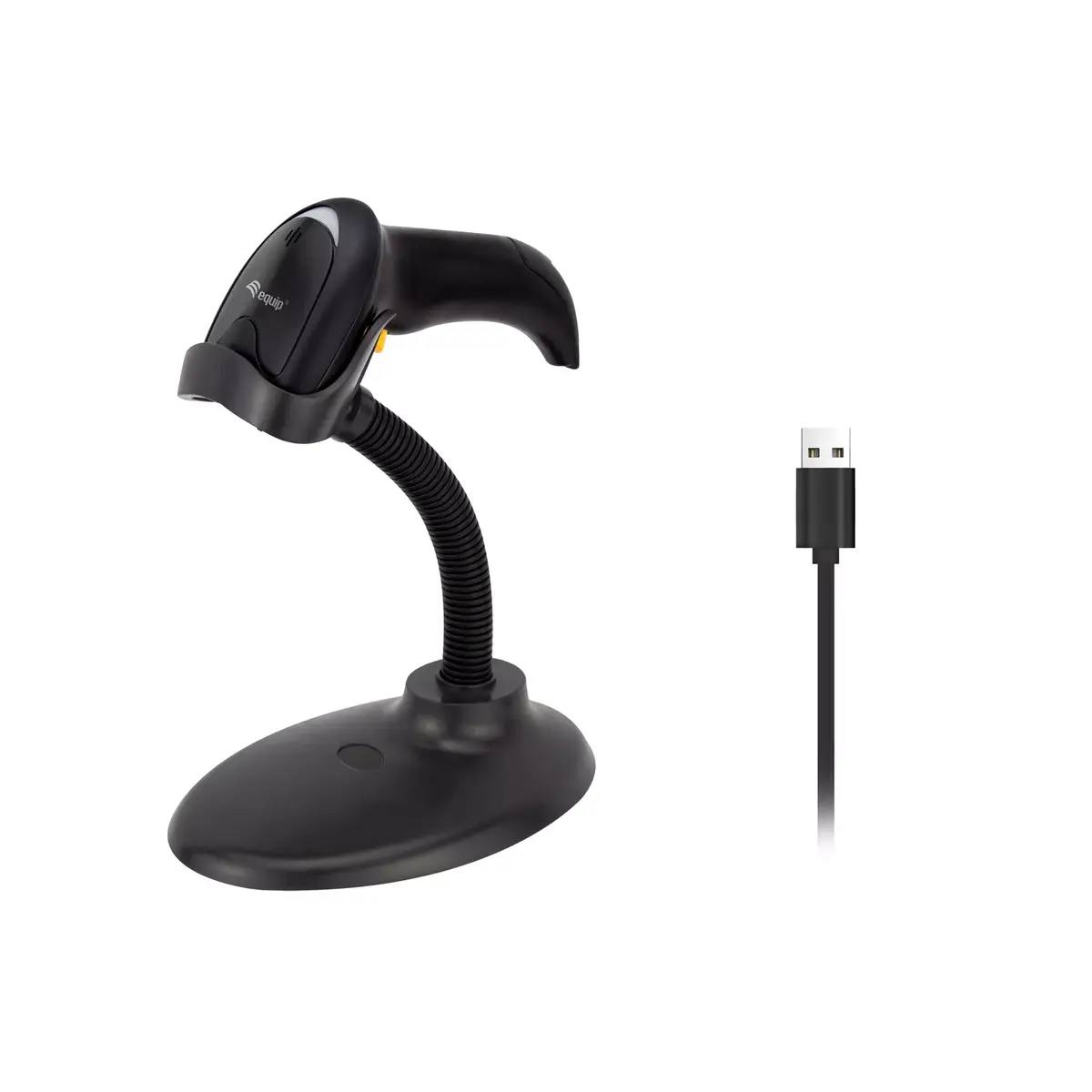

Stand included:: Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.106 kg
Height: The measurement of the product from head to foot or from base to top.: 173 mm
Depth: The distance from the front to the back of something.: 79 mm
Width: The measurement or extent of something from side to side.: 70 mm

Power

Input voltage: The voltage (V) which is required to power the product.: 5
Power source type: What the power source is.: USB

Performance

Country of origin: Country where the device is made. Aka Country of manufacture (COM).: China
Protection features: Physical effects from which the product is protected e.g. water resistant, crash proof.: Water resistant, Drop proof
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP54
Housing material: What the casing of the product is made of.: Acrylonitrile butadiene styrene (ABS)
Product colour: The colour e.g. red, blue, green, black, white.: Black

Ports & interfaces

Cable length: How long the cable is.: 1.8 m
Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.: USB
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired

Scanning

Depth of field range:: 75 mm
Maximum scan width:: 300 mm
Wavelength: The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.: 650 nm
Read rate (max):: 200 reads/s
Working distance:: 700 mm
Scanner resolution:: 4 mm
Trigger mode:: Manual, Continuous, Auto-induction
Sensor type: A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.: Laser
Linear (1D) barcodes supported: The product can read linear (1D) barcordes.: Code 11, UPC-E, Codabar, UPC-A, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, Interleaved 2 of 5
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.: Not supported
Scanner type: Indicates the type of scanner this product is.: 1D
Type: Characteristics of the device.: Handheld bar code reader
