Full Motion TV Mount Bracket Equip 43"-100"

Name: Full Motion TV Mount Bracket 650348
Brand: EQUIP
SKU: 11221870
Price: 168.99 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Full Motion TV Mount Bracket Equip 43"-100" Photo 3

Full Motion TV Mount Bracket Equip 43"-100" Photo 4

Full Motion TV Mount Bracket Equip 43"-100" Photo 5

Sale OUT! Discount 1%

You save: 2.50 €

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Usual Price: 171.49 €

Your Price:

The discount is valid from 03.06.2026 to 03.07.2026

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Equip Full Motion TV Mount Bracket supports screens from 43" to 100" with a maximum weight capacity of 60 kg. It features a minimum VESA mount of 200 x 200 mm and a maximum of 800 x 400 mm. Enjoy a tilt angle range of -10 to 5 degrees and a swivel angle range of -60 to 60 degrees. The mount extends from 6.5 cm to 48 cm from the wall, providing flexibility in positioning your TV. Finished in black, it combines functionality with a sleek design.

Available at price 168.99 €: 3 pcs.

Total available for order: 1243 pcs.

Warranty: 2 Years

SKU: 11221870

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

13.07.2026 {{selectedOffer.courierDeliveryString}}

From 53.99 € (Weight: 33.30 kg)

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 184.99 €: 3 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Equip 650348 Full Motion TV Mount Bracket supports flat-panel televisions from 43" to 100" and holds up to 60 kg. Designed for stable, adjustable mounting, the bracket accepts VESA patterns from 200 x 200 mm up to 800 x 400 mm and extends from 6.5 cm to 48 cm from the wall. It provides full motion adjustment including tilt and swivel to help position the screen for optimal viewing in home or office environments. The unit is finished in black and includes installation hardware for straightforward assembly.

Advantages

The bracket offers a wide VESA compatibility range and a high load capacity of 60 kg, enabling use with large TVs. Its full motion mechanism allows tilt between -10° and 5° and swivel up to ±60°, while extension and retraction from the wall provide flexible positioning. Constructed from sturdy materials and supplied with mounting hardware, the mount balances stability and adjustability in a compact black design.

Suitable for

Mounting large TVs in living rooms and home theaters
Office or conference room displays
Situations requiring adjustable viewing angles and flexible wall clearance

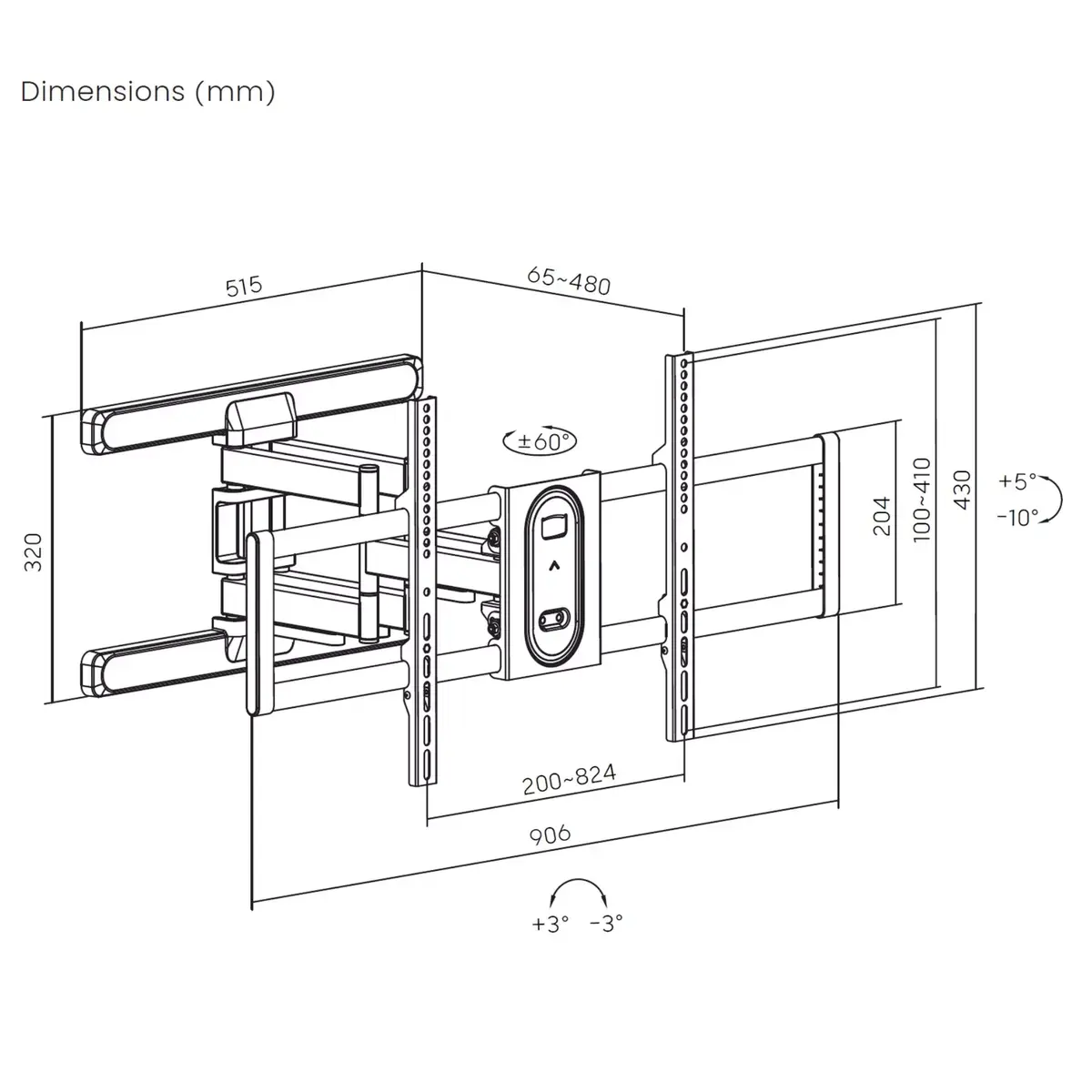

Key specifications

Supported screen size: 43"–100"
Maximum weight capacity: 60 kg
VESA compatibility: from 200 x 200 mm to 800 x 400 mm
Tilt range: -10° to 5°
Swivel range: -60° to 60°
Extension from wall: 6.5 cm to 48 cm
Number of displays supported: 1
Product weight: 8.15 kg
Colour: Black

How to use

Determine a suitable mounting location on a load-bearing wall and check the TV's VESA pattern and weight against the bracket specifications. Use the included hardware to attach the bracket to wall studs or appropriate anchors, then fix the mounting plate to the TV according to the VESA holes. With assistance, lift the TV and engage it with the wall arm, then adjust tilt, swivel and extension to the desired viewing angle. Verify all fasteners are tightened and the TV is secure before releasing support.

Usage recommendations

Verify wall construction and use proper anchors for your wall type; installation on studs is recommended for maximum safety. Do not exceed the 60 kg weight limit and follow manufacturer instructions for safe mounting and periodic checking of fasteners.

Specifications

Maximum VESA mount:: 800 x 400
Maximum screen size:: 100 "
Number of displays supported:: 1
Weight:: 8.15 kg
Maximum weight capacity:: 60 kg
Product colour:: Black

All features

Packaging content

Manual:: Yes
Screws included:: Yes

Mounting

Maximum weight capacity:: 60 kg
Panel mounting interface:: 800 x 400, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 400, 400 x 300, 600 x 400
Mounting type:: Wall
Minimum screen size:: 43 "
Maximum screen size:: 100 "
Number of displays supported:: 1
Minimum VESA mount:: 200 x 200
Maximum VESA mount:: 800 x 400

Design

Housing material:: Plastic, Stainless steel
Anti-theft function:: No

Features

Product colour:: Black
Tilt angle range:: -10 - 5

Ergonomics

Swivel angle range:: -60 - 60
Cable management:: Yes
Distance to the wall (max):: 480 mm
Distance to the wall (min):: 65 mm
Swivelling:: Yes
Tilt adjustment:: Yes

Packaging data

Package weight:: 9000 g
Package depth:: 325 mm
Package height:: 70 mm
Package width:: 933 mm

Weight & dimensions

Weight:: 8.15 kg
Height:: 430 mm
Width:: 906 mm

Logistics data

Country of origin:: China
Master (outer) case height:: 160 mm
Master (outer) case width:: 950 mm
Master (outer) case gross weight:: 18900 g
Master (outer) case length:: 340 mm
Products per master (outer) case:: 2 pc(s)
Customs product code (TARIC):: 8529909700

Technical details

Compliance certificates:: REACH, RoHS

Hide Show all

Instructions

mmo_121594127_1729850678_9772_2536815.pdf

equip-650348-11221870.pdf

Description

Instructions

mmo_121594127_1729850678_9772_2536815.pdf

equip-650348-11221870.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH354	3	01.07.2026	184.99 €
EU3	537	22.06.2026 Best delivery	Discount 1% 241.99 €
WH94	500	22.06.2026 Best delivery	251.49 €
WH320	200	22.06.2026 Best delivery	273.99 €

Show all offers Hide

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
WH109	3	08.07.2026	168.99 €

184.99 €

Stock: 3

Delivery Date: 01.07.2026

Warehouse: WH354

Discount 1%

241.99 €

Stock: 537

Delivery Date: 22.06.2026 Best delivery

Warehouse: EU3

251.49 €

Stock: 500

Delivery Date: 22.06.2026 Best delivery

Warehouse: WH94

273.99 €

Stock: 200

Delivery Date: 22.06.2026 Best delivery

Warehouse: WH320

Available only for legal entities

168.99 €

Stock: 3

Delivery Date: 08.07.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Full Motion TV Mount Bracket Equip 43"-100" cost, and is it available for purchase?

The price is 168.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 1243 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 08.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All EQUIP products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized EQUIP service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: maximum vesa mount, maximum screen size, number of displays supported, weight, maximum weight capacity, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Full Motion TV Mount Bracket Equip 43"-100"?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
