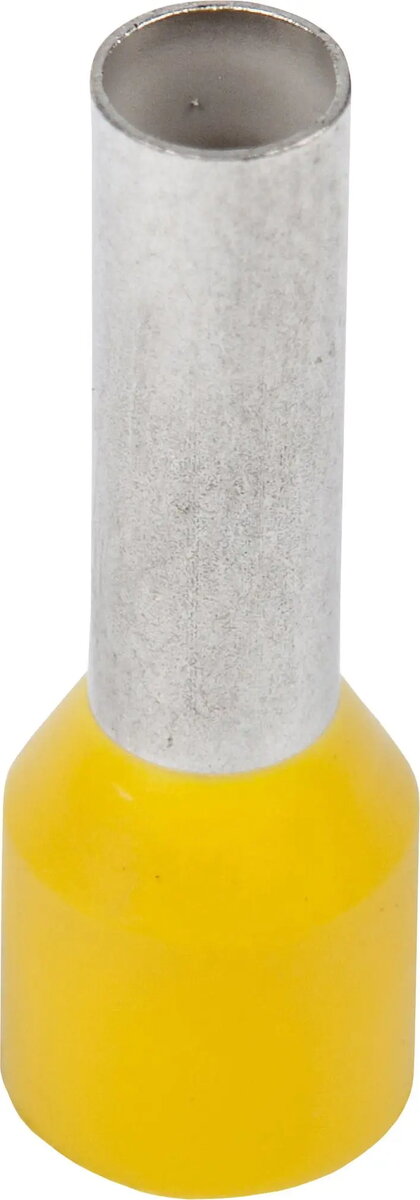

Ergom HI 6/12 DIN Insulated Wire End Sleeve, Yellow, 6 mm², 12 mm Pin Length, 100 Pieces

The Ergom HI 6/12 DIN insulated wire end sleeve is a high-quality component engineered for the professional termination of flexible copper conductors. Designed to accommodate a wire cross-section of 6 mm², this ferrule provides a secure and stable connection point, effectively preventing the fraying of individual wire strands when inserted into terminal blocks or screw-type connectors. With a pin length of 12 mm and a distinct yellow insulation color, it facilitates easy identification and ensures consistent electrical performance in various industrial and residential wiring applications.

Advantages

The primary benefit of using these insulated wire end sleeves is the significant improvement in connection reliability and safety. By bundling the fine strands of a flexible conductor, the sleeve ensures that the clamping force of the terminal is distributed evenly, reducing the risk of overheating or loose connections. The high-quality insulation material provides additional protection against short circuits and mechanical stress, while the DIN-compliant design guarantees compatibility with standard electrical equipment and tools, making it an essential choice for electricians and technicians who require precision and durability in their installations.

Suitable for

• Termination of flexible copper wires in control cabinets
• Connecting conductors to terminal blocks and circuit breakers
• Electrical installations in industrial machinery
• Professional wiring projects requiring DIN standard compliance

This product may not be suitable for solid core conductors, as it is specifically designed to manage the strands of flexible wire. Additionally, it should not be used in environments where the operating temperature exceeds the thermal rating of the insulation material or in applications requiring a different wire gauge than the specified 6 mm².

Key specifications

• Wire cross-section: 6 mm²
• Pin length: 12 mm
• Insulation color: Yellow
• Material: Electrolytic copper with plastic insulation
• Compliance: DIN standards
• Quantity: 100 pieces per pack

How to use

To use the Ergom HI 6/12 DIN insulated wire end sleeve, first strip the insulation from the end of your flexible copper wire to a length corresponding to the pin length of the ferrule. Insert the exposed wire strands into the metal tube of the sleeve until they reach the end. Using a professional crimping tool designed for wire end ferrules, apply firm pressure to the sleeve to create a secure, gas-tight connection. Once crimped, the wire is ready to be inserted into the terminal block and tightened.

What to consider before purchase

• Ensure the wire cross-section matches the 6 mm² specification exactly
• Verify that your crimping tool is compatible with 6 mm² ferrules
• Check the depth of your terminal block to ensure the 12 mm pin length is appropriate

Usage recommendations: Always use a calibrated crimping tool to ensure the integrity of the connection. Avoid reusing ferrules once they have been crimped, as the mechanical deformation prevents a secure second installation.
