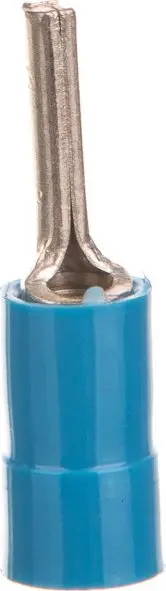

Ergom KII 2,5-10 Insulated Pin Terminal Blue

The Ergom KII 2,5-10 Insulated Pin Terminal Blue is an essential electrical component designed for secure and reliable wire termination in various electrical installations. This blue insulated pin terminal ensures proper electrical contact and effectively prevents strand fraying when working with terminal blocks and screw connections. Built to meet durable connection standards, it is engineered to support both professional electrical work and standard DIY applications requiring high safety and precision.

Advantages

Using the Ergom insulated pin terminal significantly improves the reliability and longevity of electrical connections. The integrated insulation prevents accidental short circuits and protects the connection point from environmental factors and mechanical wear. By holding stranded wires firmly in a solid pin shape, it allows for maximum contact surface area within screw terminals, reducing resistance and preventing overheating in the circuit.

Suitable for

• Electrical control panel wiring and switchgear assembly
• Connecting flexible stranded wires to screw terminals and circuit breakers
• Professional electrical installations in residential and commercial buildings
• DIY electrical projects and maintenance work

When it may not be suitable

This terminal is not designed for solid core wires, which do not require pin terminals for termination. It is also unsuitable for wire cross-sections outside the specified range of 2.5 mm² or for environments requiring heavy-duty ring or fork lug connections instead of pin insertions.

Key specifications

• Product type: Insulated pin terminal
• Color: Blue
• Wire cross-section compatibility: 2.5 mm²
• Pin length: 10 mm
• Function: Wire termination and strand protection

How to use

To use the terminal correctly, strip the insulation of the flexible wire to match the required insertion length. Carefully insert all exposed strands fully into the metal tube of the pin terminal, ensuring no stray strands are left outside. Use a compatible crimping tool designed for insulated terminals to press the metal sleeve firmly onto the wire strands. Once properly crimped, insert the pin end into the designated terminal block or screw connection and tighten securely.

What to consider before purchase

• Verify that your wire cross-section matches the 2.5 mm² specification of the terminal
• Ensure your terminal blocks or connection points are compatible with pin-type terminals
• Check that you have a suitable crimping tool for insulated wire terminals

Usage recommendations: Always perform a manual pull test after crimping to ensure the wire is securely fastened inside the terminal. Ensure power is completely disconnected from the circuit before performing any installation or maintenance work.
