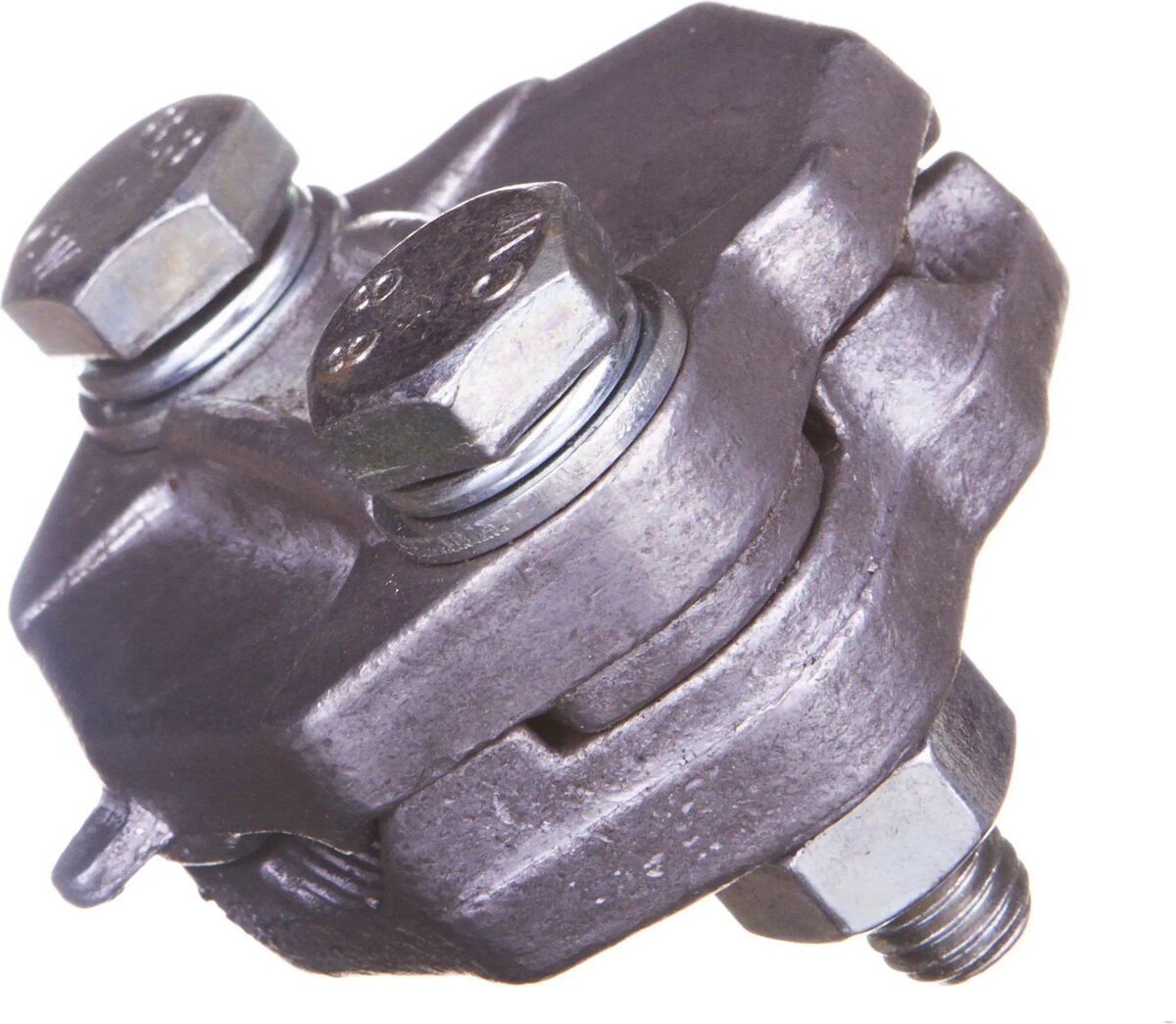

Ergom UP/A 50-70 Loop Clamp for 50-70mm2 Conductors

The Ergom UP/A 50-70 loop clamp is a professional-grade electrical component engineered for the secure termination and connection of conductors with a cross-section ranging from 50 to 70mm2. Designed to meet the rigorous demands of electrical installations, this clamp provides a robust mechanical and electrical interface, ensuring long-term stability and safety in power distribution systems.

Advantages

This loop clamp offers exceptional reliability by maintaining a consistent and secure contact pressure on the conductor, which minimizes the risk of overheating or connection failure. Its durable construction is built to withstand the stresses of industrial environments, facilitating efficient cable management and reliable electrical conductivity. The design simplifies the installation process, allowing for quick and precise mounting in various electrical panels and distribution boards.

Suitable for

• Industrial electrical installations
• Commercial wiring projects
• Power distribution systems
• Cable management and termination tasks

When it may not be suitable

This clamp is specifically designed for conductors with a cross-section of 50-70mm2. It is not suitable for cables outside of this specific range, as an improper fit may lead to loose connections or damage to the conductor. It should not be used in environments that exceed the material's thermal or chemical resistance specifications.

Key specifications

• Conductor cross-section range: 50-70mm2
• Type: Loop clamp
• Application: Electrical conductor termination
• Material: High-quality conductive metal alloy

How to use

To use the Ergom UP/A 50-70 loop clamp, ensure the power supply is disconnected before beginning any installation work. Strip the insulation from the conductor to the required length, ensuring the wire strands are clean and undamaged. Insert the conductor into the clamp and tighten the fastening mechanism according to the manufacturer's torque requirements to ensure a secure mechanical and electrical connection. Verify that the conductor is firmly held in place before restoring power to the system.

What to consider before purchase

• Verify the cross-section of your conductors matches the 50-70mm2 range.
• Ensure the installation environment is compatible with the clamp material.
• Check the available space in your distribution board for proper mounting.

Usage recommendations

Always use appropriate tools for tightening the clamp to avoid damaging the threads or the conductor. Regular inspection of electrical connections is recommended to ensure long-term performance and safety.
