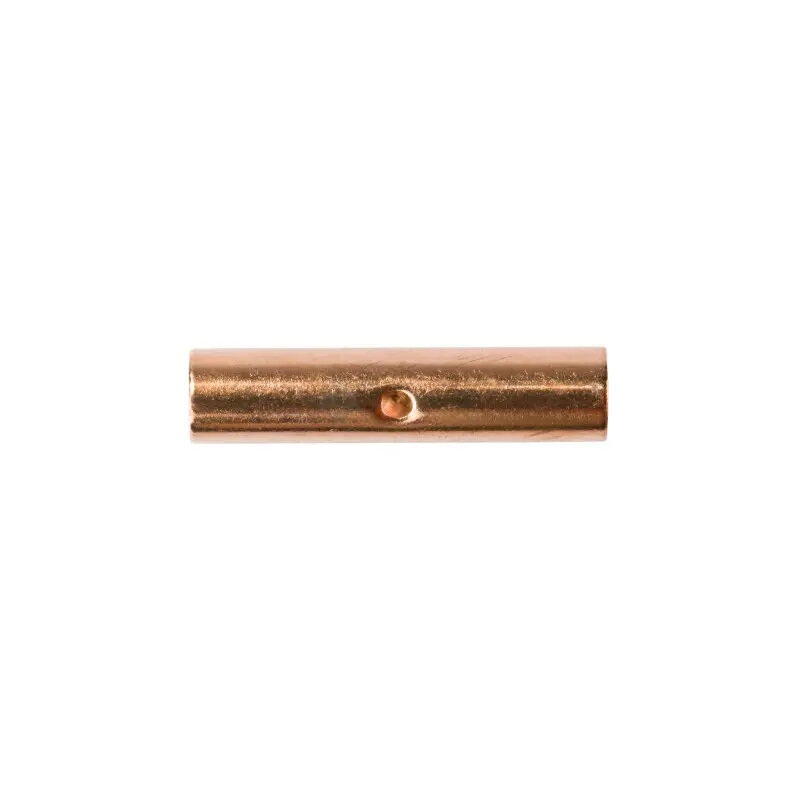

Terminal connector Ergom ZM10 for copper conductors 10 mm²

Ergom ZM10 is a terminal connector designed for copper conductors with a cross-section of 10 mm². It provides a reliable mechanical and electrical connection for single conductors or stranded copper cables used in wiring, distribution blocks and cable joints. The connector is intended for fixed installations in electrical panels, control cabinets and building wiring where a secure and low-resistance termination of a 10 mm² copper conductor is required.

Advantages

The Ergom ZM10 terminal connector offers a compact design that facilitates secure clamping of 10 mm² copper conductors while maintaining good conductivity and low contact resistance. Manufactured to ensure consistent mechanical strength, the connector is suitable for repeated assembly and provides stable electrical contact under normal operating conditions. Its dimensions and screw clamping method enable easy integration into distribution blocks and terminal strips.

Suitable for

• Termination of 10 mm² copper single-core and multi-strand conductors
• Internal wiring of control panels and distribution boards
• Cable joints and branch connections in industrial and residential installations
• Applications requiring reliable mechanical and electrical connection in fixed installations

Key specifications

• Conductor compatibility: copper conductors, 10 mm² cross-section
• Connection method: screw clamp for secure mechanical fastening
• Application type: fixed electrical installations, control cabinets, distribution blocks
• Suitable conductor types: solid and stranded copper conductors
• Typical use environment: indoor electrical panels and junctions

How to use

Prepare the 10 mm² copper conductor by stripping insulation to the required length without damaging strands. Insert the conductor fully into the terminal entry and tighten the screw clamp to the manufacturer-recommended torque to ensure firm contact. Verify that the conductor is held securely and that there is no exposed conductive material beyond the terminal housing except the intended connection point. For multi-conductor assemblies, make sure there is adequate spacing and that terminals are mounted according to the panel layout.

Usage recommendations

Use appropriate tools to strip and insert conductors and a calibrated torque driver where specified. Ensure that connections are inspected after installation and periodically during maintenance for tightness and signs of corrosion or overheating. Do not use the terminal with conductors other than copper or with conductors of different cross-section than 10 mm² unless explicitly allowed by technical documentation.
