header-product Monitor Mount Ergotron HX Series HX ARM Heavy Duty 17kg 57" Black
389.49 €

Monitor Mount Ergotron HX Series HX ARM Heavy Duty 17kg 57" Black

Stāvoklis: Demo
Monitor Mount Ergotron HX Series HX ARM Photo 1
Monitor Mount Ergotron HX Series HX ARM Photo 2
Monitor Mount Ergotron HX Series HX ARM Photo 3
Monitor Mount Ergotron HX Series HX ARM Photo 4
Monitor Mount Ergotron HX Series HX ARM Photo 5
Monitor Mount Ergotron HX Series HX ARM Photo 6
Monitor Mount Ergotron HX Series HX ARM Photo 7
Monitor Mount Ergotron HX Series HX ARM Photo 1
Monitor Mount Ergotron HX Series HX ARM Photo 2
Monitor Mount Ergotron HX Series HX ARM Photo 3
Monitor Mount Ergotron HX Series HX ARM Photo 4
Monitor Mount Ergotron HX Series HX ARM Photo 5
Monitor Mount Ergotron HX Series HX ARM Photo 6
Monitor Mount Ergotron HX Series HX ARM Photo 7
payment

Cheaper than new!

Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Monitor Mount Ergotron HX Series HX ARM Heavy Duty 17kg 57" Black

{{email}}
You keep track of price changes

Monitor Mount Ergotron HX Series HX ARM Heavy Duty 17kg 57" Black

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Ergotron HX Series HX ARM is a heavy-duty monitor mount designed for screens up to 57" and a maximum weight of 17kg. It features height adjustment and a tilt angle range of 5 - 20°. The mount uses a clamp for secure attachment and supports VESA mounts from 75x75mm to 100x100mm. Ideal for creating an ergonomic workspace.
Available at price 389.49 €: 1 pcs.
Total available for order: 18 pcs.
Warranty: 2 Years
Stāvoklis: Demo

Demo - Showcase sample. Opened packaging. There may be minor minor scratches.

SKU: 11134004
free shipment

Cheapest delivery:

Latvijas Pasts pakomāts

Pick-up points

Latvijas Pasts pakomāts

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 8.84 € (Weight: 10.50 kg)
Parcel couriers
Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Locker LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 450.49 €: 1 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Ergotron HX Series HX ARM Heavy Duty monitor mount supports large curved displays up to 57" and a maximum weight of 17 kg. Designed for gamers and office professionals, this HX Arm variant includes a reinforced heavy-duty tilt pivot to accommodate ultra-wide curved monitors with depths from 23 to 35 cm and weights between 13 and 17 kg, such as the Samsung 57" Odyssey G9. The arm attaches securely with a desk clamp and fits VESA patterns 75×75 mm and 100×100 mm, providing smooth height adjustment and a tilt range suitable for immersive viewing while freeing desk space.

Advantages

The heavy-duty tilt pivot increases stability for deep, ultra-wide curved screens and allows reliable positioning of displays weighing up to 17 kg. Clamp mounting keeps the desk surface clear without permanent modification. Compatibility with common VESA sizes and adjustable height and tilt improve ergonomics and viewing comfort for extended use.

Suitable for

  • Large curved gaming monitors (e.g., Samsung 57" Odyssey G9)
  • Professional workstations requiring large single-screen setups
  • Shared office spaces where desk space optimization is needed
  • Users who need adjustable height and tilt for ergonomic viewing

Key specifications

  • Model: Ergotron HX Series HX ARM Heavy Duty (MPN 45-693-224)
  • Maximum supported screen size: up to 57"
  • Maximum load capacity: 17 kg (37.5 lbs)
  • Supported display depth: 23–35 cm (9.1"–13.8")
  • VESA compatibility: 75×75 mm and 100×100 mm
  • Tilt range: approximately 5°–20°
  • Mounting method: desk clamp
  • Colour: Black
  • EAN: 0698833091939

How to use

Confirm your display’s weight, depth and VESA pattern before installation. Attach the arm to the desk using the supplied clamp and secure the mount according to the included instructions. Fasten the monitor to the VESA plate and adjust height and tilt to the preferred viewing position. The heavy-duty tilt pivot allows controlled movement for large, deep curved screens; make small incremental adjustments to find optimal alignment.

Usage recommendations

Check compatibility with other HX Arm variations: some Samsung G9 models may work with the standard HX Arm or the HX Arm with HD Pivot. Always verify the display’s weight and depth to select the correct arm variant and follow the manufacturer’s installation guidelines for safe mounting.
All features
Product colour:
Black
Mounting:
Clamp
Height adjustment:
Yes
Tilt angle range:
5 - 20
Angle of rotation:
20 °
Maximum weight capacity:
17 kg
Pan range:
0 - 180
Cable management:
Yes
Country of origin:
China
Rotating:
Yes
Manual:
Yes
Panel mounting interface:
75 x 75, 100 x 100
Easy to install:
Yes
Mounting type:
Desk
Maximum screen size:
57 "
Swivelling:
Yes
Mounting kit:
Yes
Tilt adjustment:
Yes
Number of displays supported:
1

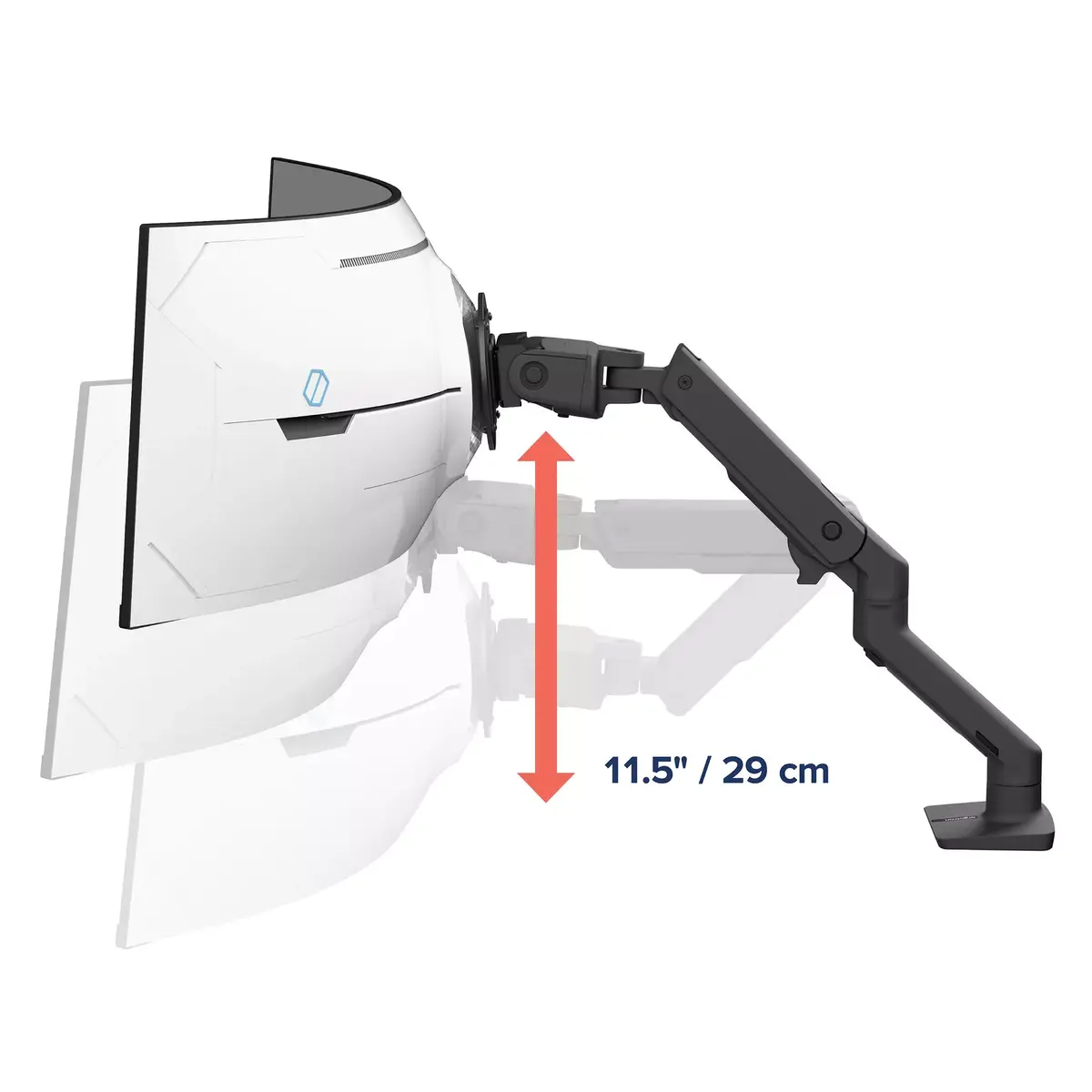

Height adjustment range:
0 - 292

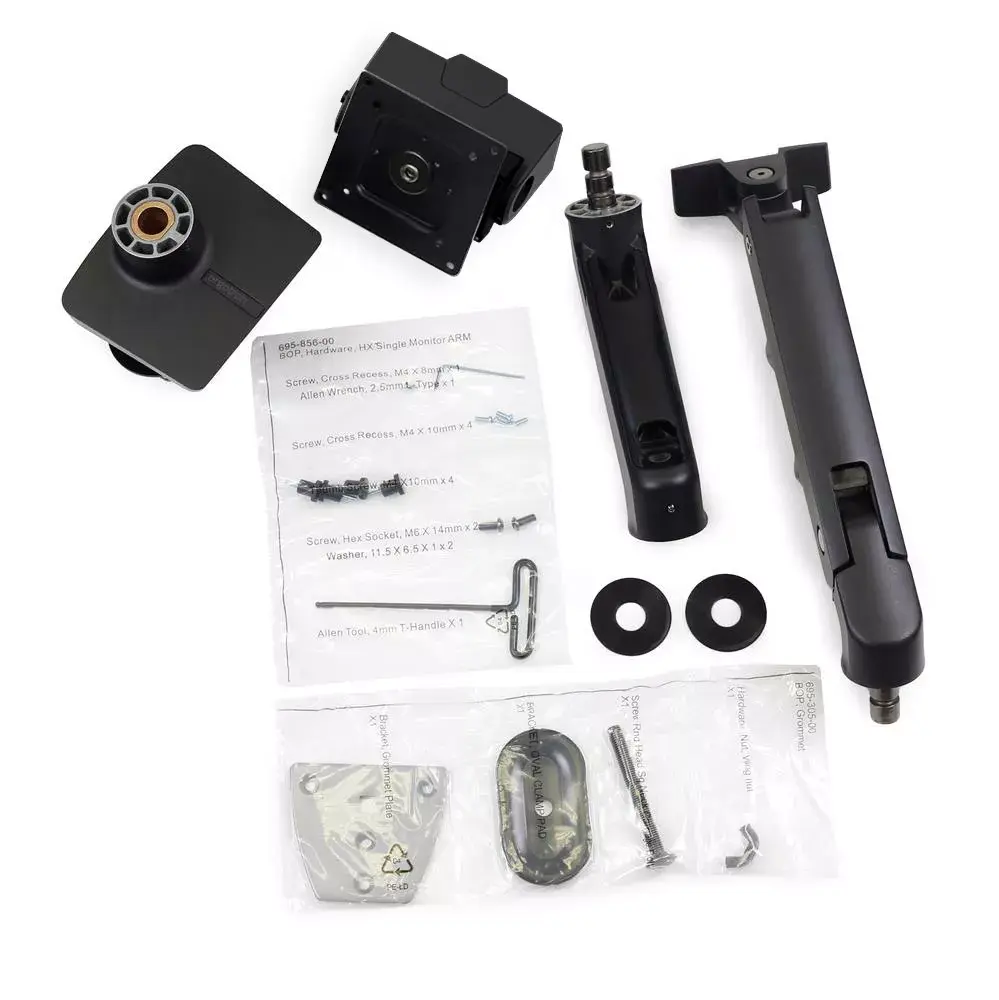

Packaging content:
HX Arm, Very Heavy-Duty Tilt Pivot, extension, desk clamp, grommet mount, mounting hardware
Minimum VESA mount:
75 x 75
Maximum VESA mount:
100 x 100
Clamp included:
Yes
Number of arms:
1
Desk thickness (min):
10 mm
Desk thickness (max):
66 mm
Orientation:
Landscape
VESA mount included:
Yes
Adjustable depth:
Yes

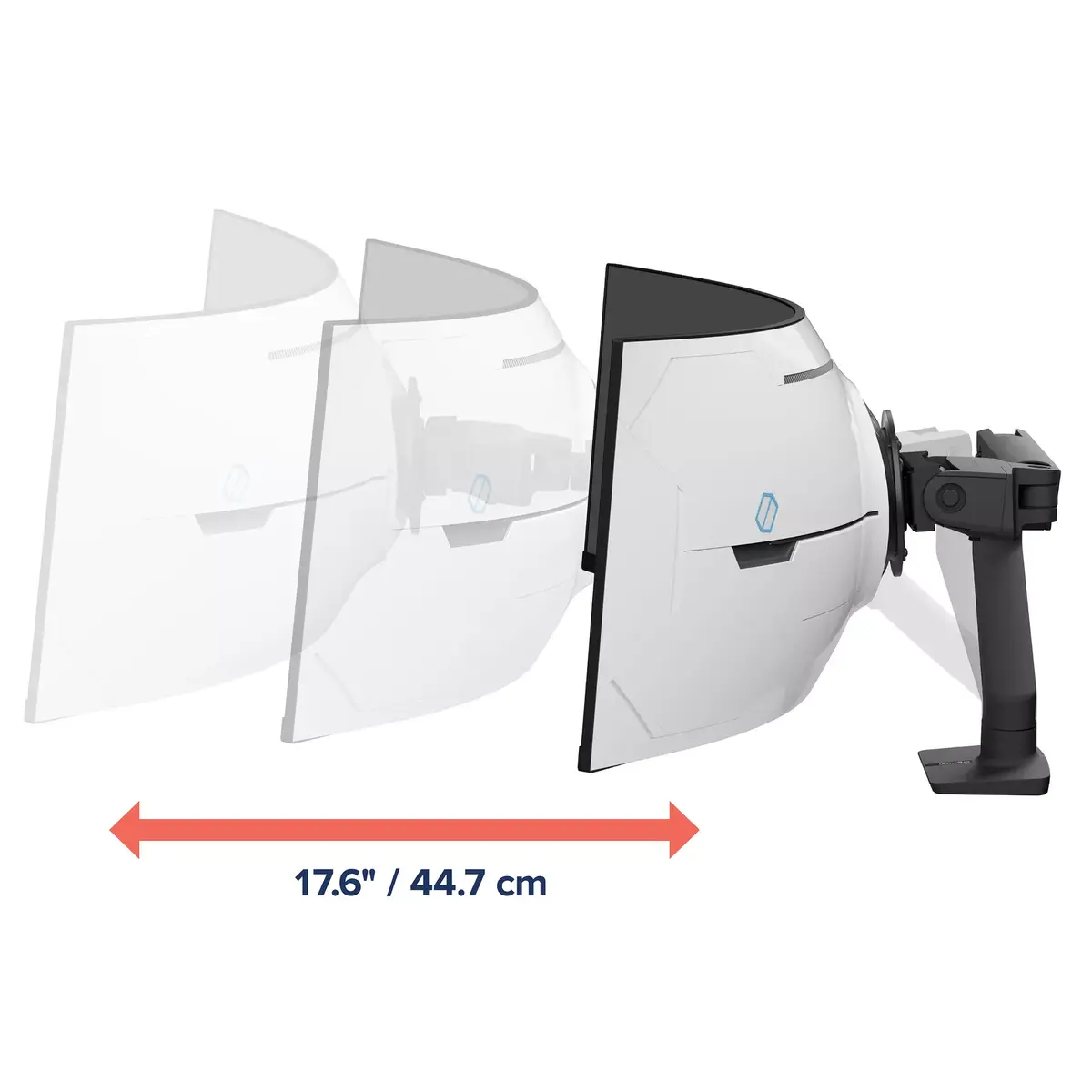

Extension arm (max):
447 mm
Suitable for TV:
Yes
Maximum weight capacity (per display):
17 kg
Warranty period:
10 year(s)
Maximum weight capacity (per curved/ultra-wide display):
17 kg
