Erico PTF6P Structural Support nVent CADDY Pyramid Tool-Free for Cable Trays 203.2 mm

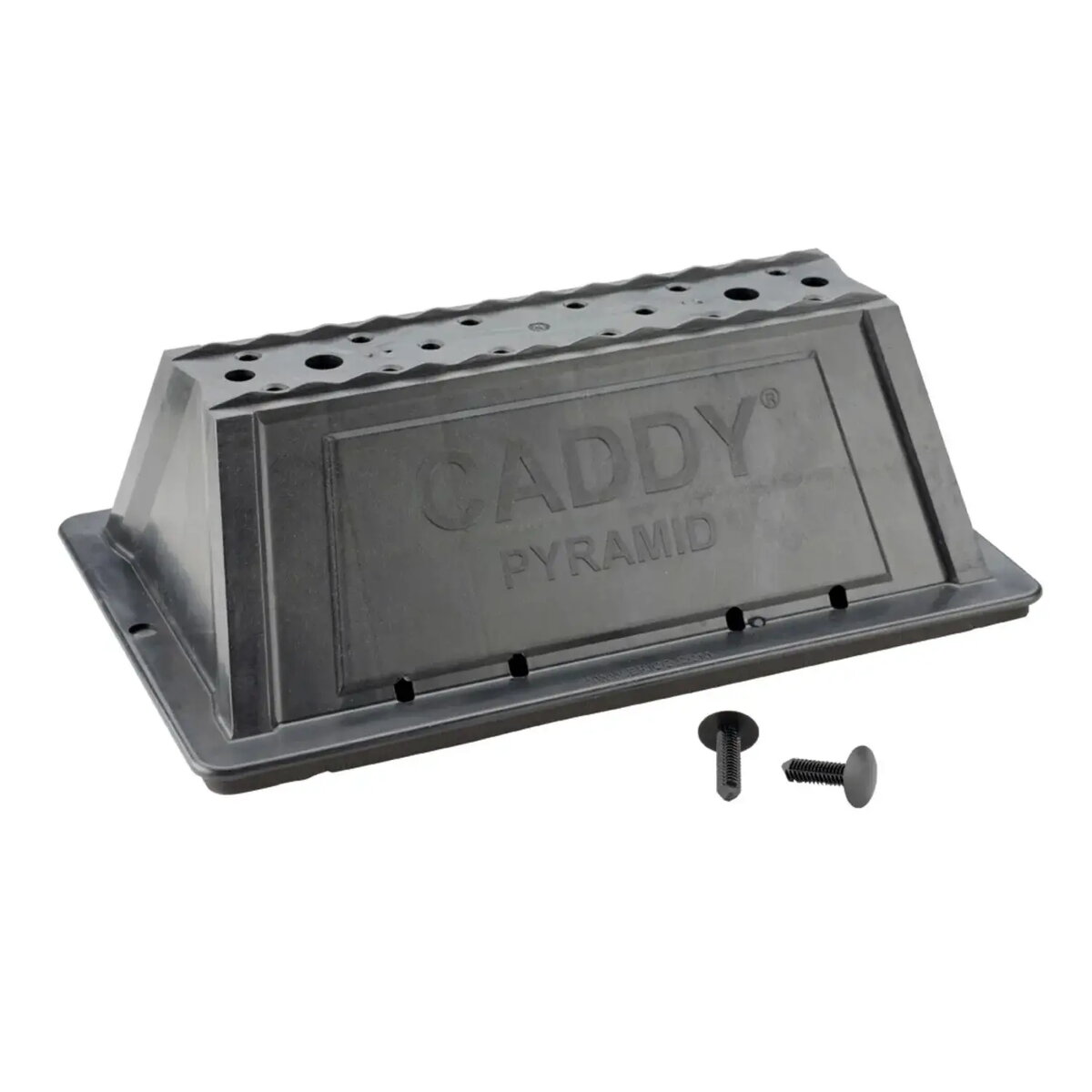

The Erico PTF6P structural support, featuring the nVent CADDY Pyramid Tool-Free design, is engineered for reliable installation of cable trays. This 203.2 mm support kit ensures secure and efficient mounting in industrial and commercial electrical systems without requiring specialized tools, simplifying on-site setup.

Advantages

This structural support system provides a highly efficient solution for rooftop installations by eliminating the need for specialized equipment during setup. The integrated push-in pins allow for fast installation directly into perforated cable trays, reducing labor time and effort on site. Built with durable plastic components for the pins and base, the product resists corrosion to ensure long-term reliability in various environmental conditions. Additionally, the integrated foam bottom creates a low-abrasion interface that protects delicate roof membranes from wear and tear.

Designed to accommodate different rooftop configurations, the support offers superior load distribution across uneven or varied surfaces. It is fully compatible with common roofing materials such as single-ply membranes, bituminous surfaces, metal roofs, and spray foam. The lightweight construction also makes it easy to transport the units to the roof level, streamlining the entire installation workflow.

Suitable for

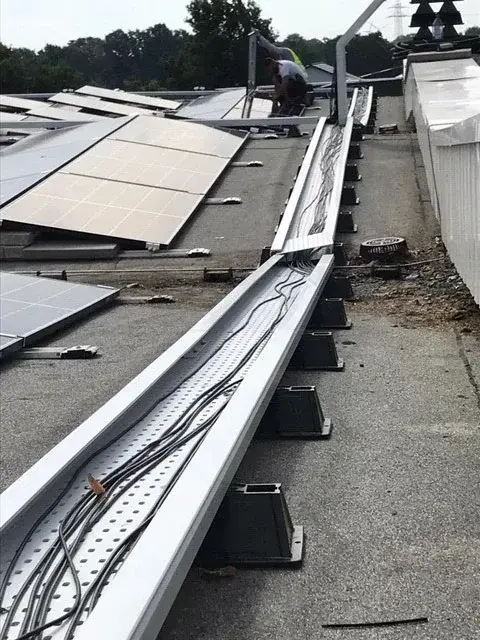

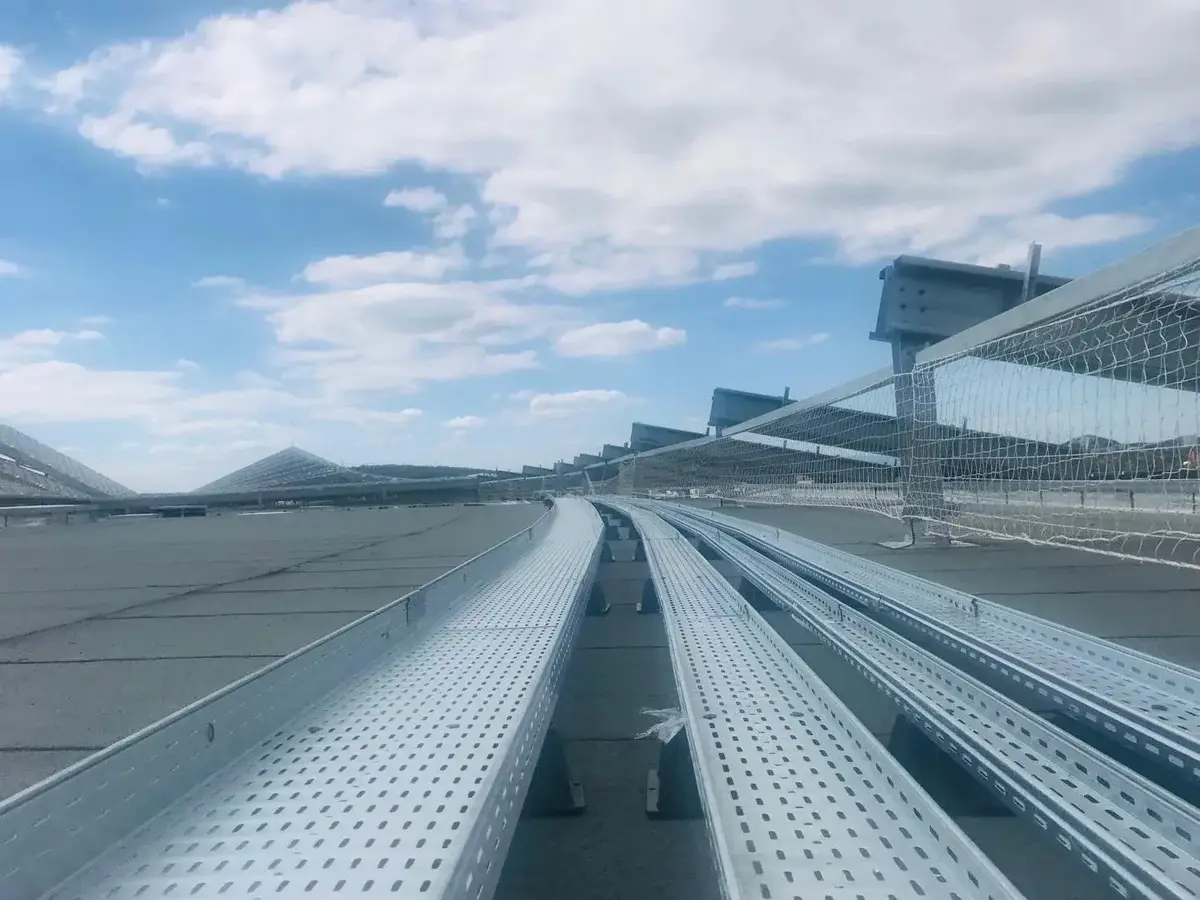

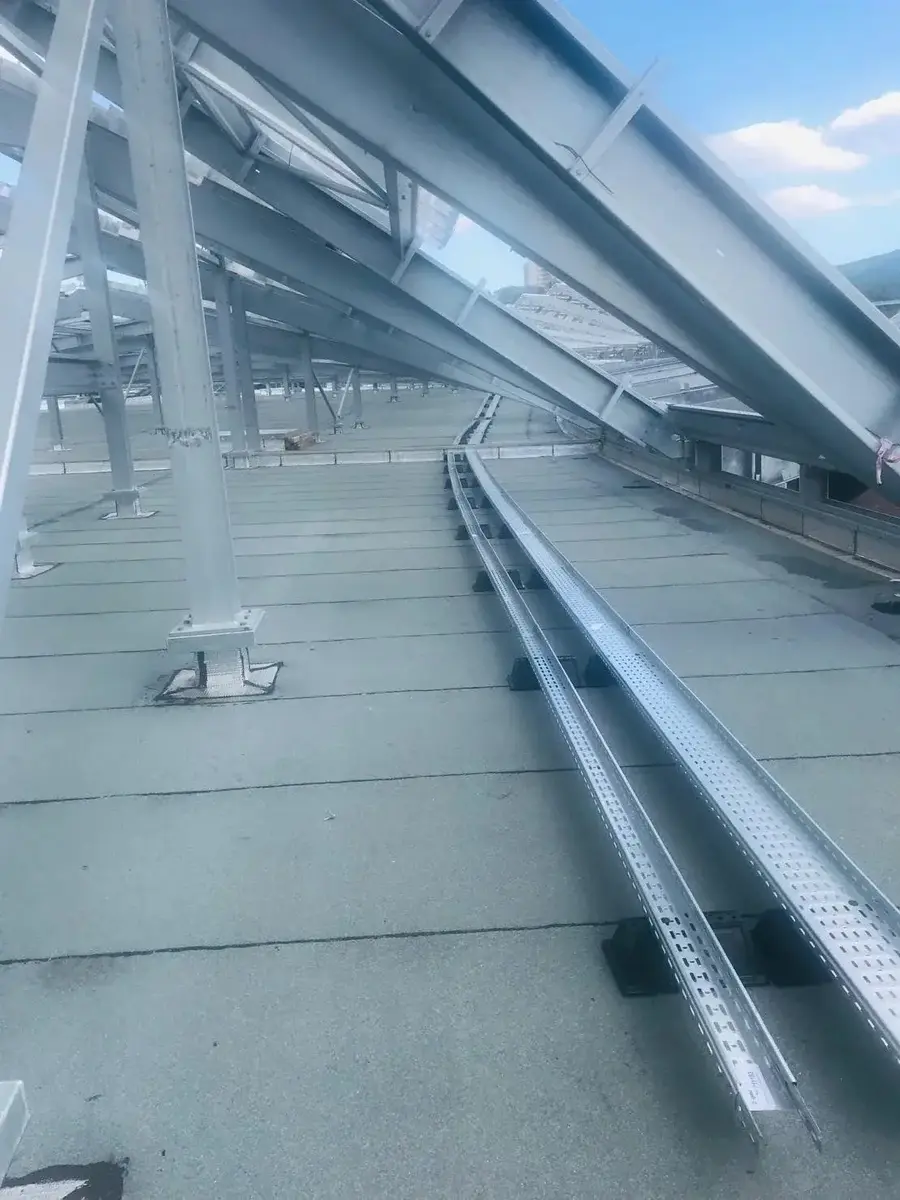

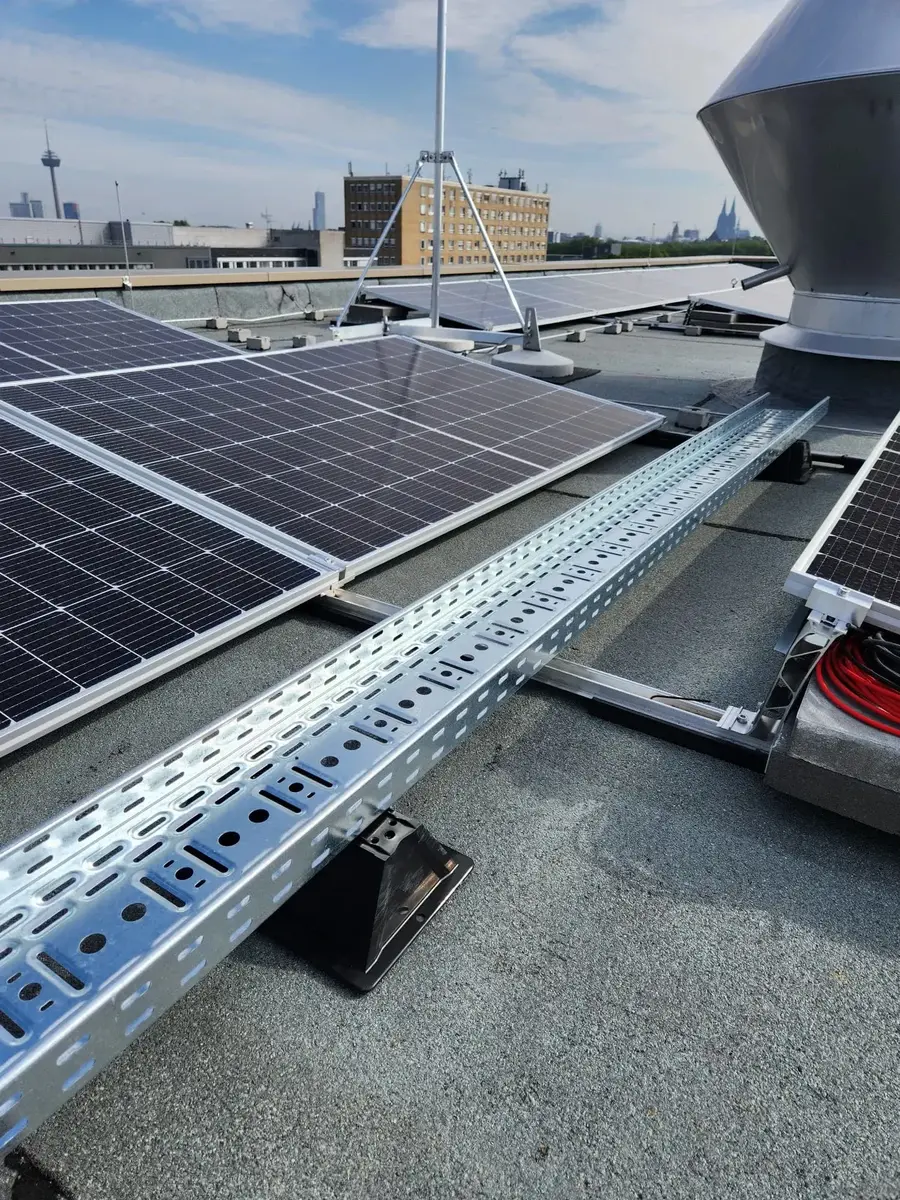

• Mounting cable trays on commercial and industrial rooftops
• Installations requiring non-penetrating rooftop support systems
• Projects utilizing perforated cable trays
• Setups on single-ply, bituminous, metal, and spray foam roofs

When it may not be suitable

This structural support may not be suitable for applications requiring load ratings that exceed the specific design capacity of the 203.2 mm unit. It is also not intended for suspended ceiling applications or wall-mounted installations where rooftop support bases cannot be properly utilized.

Key specifications

• Support size: 203.2 mm
• Installation type: Tool-free push-in pin design
• Material: Non-corrosive plastic pins and base with a protective foam bottom
• Roof surface compatibility: Single-ply, bituminous, metal, and spray foam

How to use

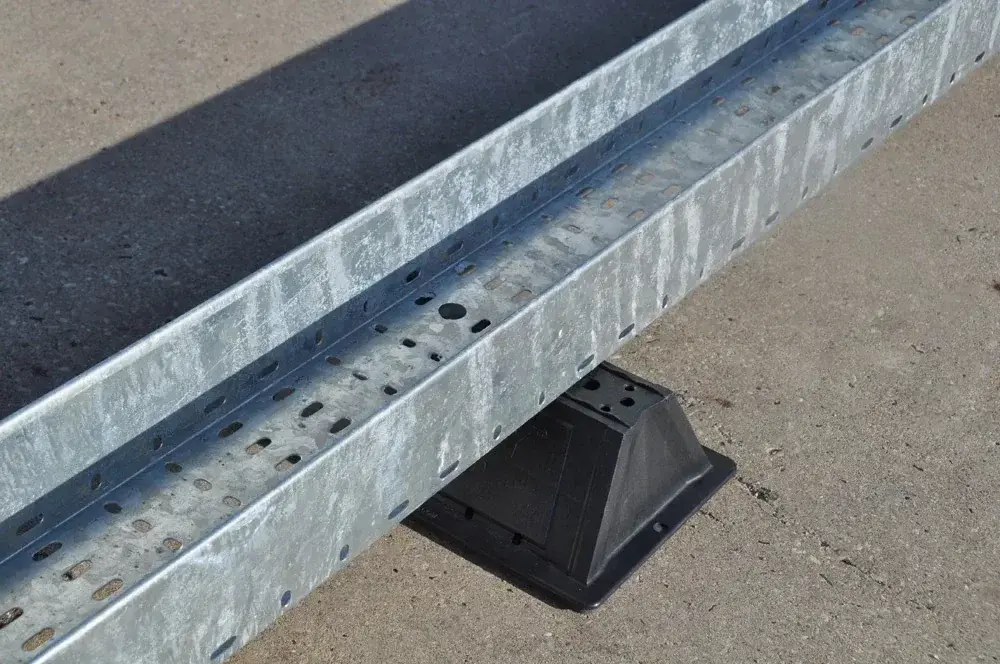

Position the support base onto the designated flat or varied rooftop surface where the cable tray run is planned. Align the perforated cable tray with the mounting holes on the support structure. Insert the push-in pins securely through the tray and base to lock the assembly in place without the need for additional tools. Ensure the weight is evenly distributed across the foam bottom before completing the full cable tray layout.

What to consider before purchase

• Verify that the 203.2 mm size matches the structural requirements of your cable tray system
• Check the compatibility of the support with your specific roofing material type
• Assess the anticipated load requirements to ensure the support capacity is sufficient
• Determine if additional push-in pins will be needed for your specific installation layout

Usage recommendations

Ensure the rooftop surface is clean and free of sharp debris before placing the support base. Position the units according to standard load distribution guidelines to maximize roof membrane protection and structural stability.
