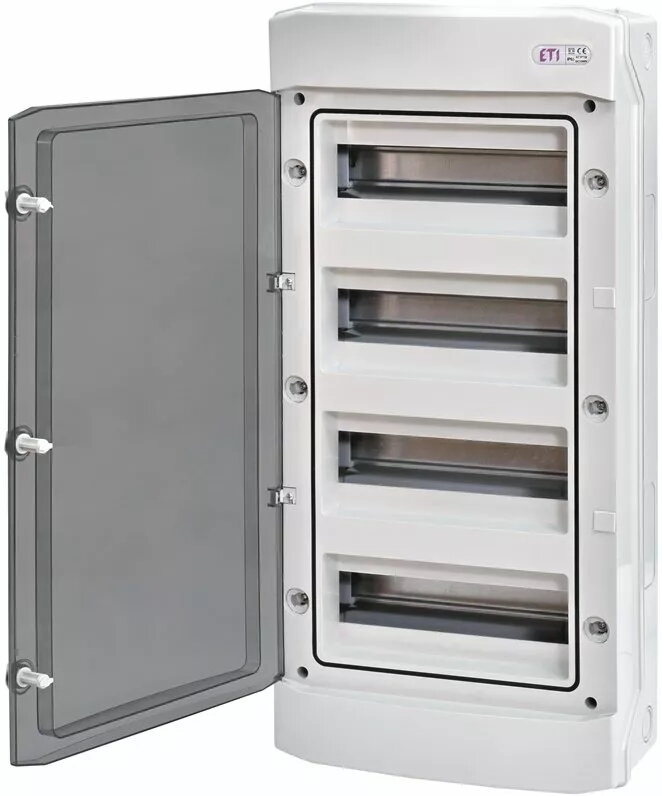

The ETI ECH-48PT-S is a professional-grade distribution box engineered for surface mounting, offering a robust solution for housing electrical components. With an IP65 ingress protection rating, this enclosure is specifically designed to withstand challenging conditions, providing complete protection against dust ingress and water jets. It supports up to 48 modules, allowing for a comprehensive and organized arrangement of circuit breakers, residual current devices, and other modular DIN-rail equipment.
Advantages
The primary benefit of this distribution box is its high level of environmental resistance, which ensures the longevity and safety of the electrical installation even in harsh or humid settings. The enclosure is constructed from high-quality, durable materials that maintain structural integrity over time. Its spacious interior design facilitates easy installation and maintenance, while the transparent door allows for quick visual inspection of the status of the installed components without needing to open the unit.
Suitable for
- Industrial electrical installations
- Outdoor electrical distribution systems
- Garages and workshops
- Areas with high humidity or dust exposure
This distribution box may not be suitable for environments requiring explosion-proof equipment or locations where the enclosure would be exposed to direct mechanical impact or extreme chemical substances that could degrade the plastic housing.
Key specifications
- Capacity: 48 modules
- Mounting type: Surface mounted
- Ingress protection: IP65
- Material: Durable, impact-resistant plastic
- Door type: Transparent
To use the ETI ECH-48PT-S, mount the enclosure securely to a flat, vertical surface using the provided mounting points. Once fixed, install the necessary DIN-rail components inside the box, ensuring all wiring is routed correctly and connections are tightened to the manufacturer's specifications. Finally, close the door and ensure the locking mechanism is engaged to maintain the IP65 seal.
What to consider before purchase
- Verify that the wall surface is capable of supporting the weight of the fully loaded enclosure.
- Ensure the dimensions of the installation area are sufficient for the box size.
- Confirm that the number of modules required for your project does not exceed 48.
- Check that the cable entry points are properly sealed to maintain the IP65 rating.
Usage recommendations
Always ensure that the installation is performed by a qualified electrician in accordance with local electrical regulations. Regularly inspect the seals and the door closure to ensure the IP65 protection rating remains intact throughout the service life of the unit.
