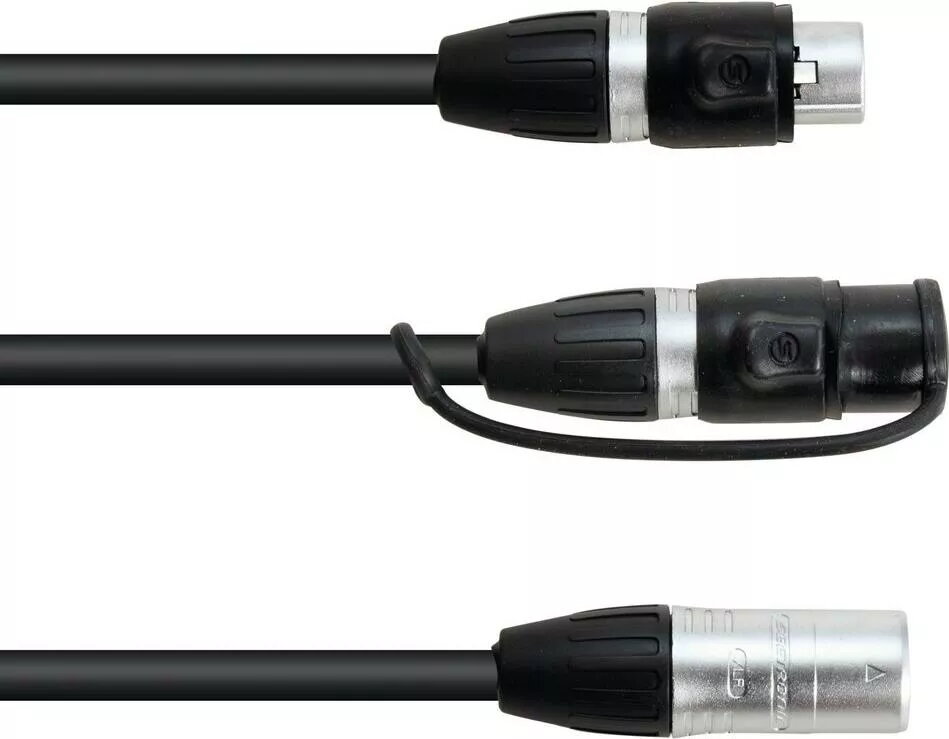

Adapter Cable EUROLITE 30227869 IP XLR 3‑pin Male to 2× IP XLR 3‑pin Female

The EUROLITE Adapter Cable 30227869 IP XLR 3‑pin Male to 2× IP XLR 3‑pin Female is a purpose‑built splitter for distributing a single IP‑rated XLR 3‑pin signal into two protected outputs. It supports DMX and balanced audio connections where weather‑resistant, mechanically robust cabling is required. The cable and IP‑rated connectors are intended for use in live events, stage setups and outdoor installations where reliable signal splitting and ingress protection are needed.

Advantages

This adapter cable provides a compact, single‑point solution to split a DMX or audio line without cutting or re‑terminating existing cables. IP‑rated connectors reduce the risk of moisture and dust ingress at the connection points, improving long‑term reliability in demanding environments. The molded construction minimizes strain on the contacts and maintains stable contact resistance under repeated connection cycles.

Suitable for

• Splitting a DMX512 signal to feed two fixtures or devices
• Distributing balanced audio to two inputs in outdoor or damp locations
• Temporary stage and event cabling where a weather‑resistant split is required
• Permanent outdoor installations requiring protected XLR connections

Key specifications

• Connector configuration: 1 × IP XLR 3‑pin male to 2 × IP XLR 3‑pin female
• Intended signals: DMX512 and balanced audio
• Ingress protection: IP‑rated connectors for moisture and dust resistance
• Cable construction: molded junction with strain relief to protect contacts
• Contact type: 3‑pin XLR connections suitable for standard balanced audio and DMX wiring

How to use

Insert the IP XLR 3‑pin male end into the source device’s corresponding IP XLR output and connect up to two destination devices using the IP XLR 3‑pin female connectors. Ensure all connectors are fully seated and any locking mechanisms are engaged to maintain the IP seal. Route the cable to avoid sharp bends and secure it to prevent strain at the junctions. This adapter does not change signal wiring; it parallels the three conductors so signal wiring conventions (pin 1 ground, pin 2 hot, pin 3 cold for audio; DMX wiring as standard) must be observed on connected devices.

Usage recommendations

For reliable operation, use this adapter only with compatible IP‑rated XLR equipment and avoid using it for long cable runs where signal degradation may occur; for extended distances consider line amplifiers or dedicated DMX splitters. Inspect connectors for debris or damage before outdoor use and secure all connections against mechanical strain.
