Mounting U-bracket for EUROLITE CLS-9 QCL RGB/WW

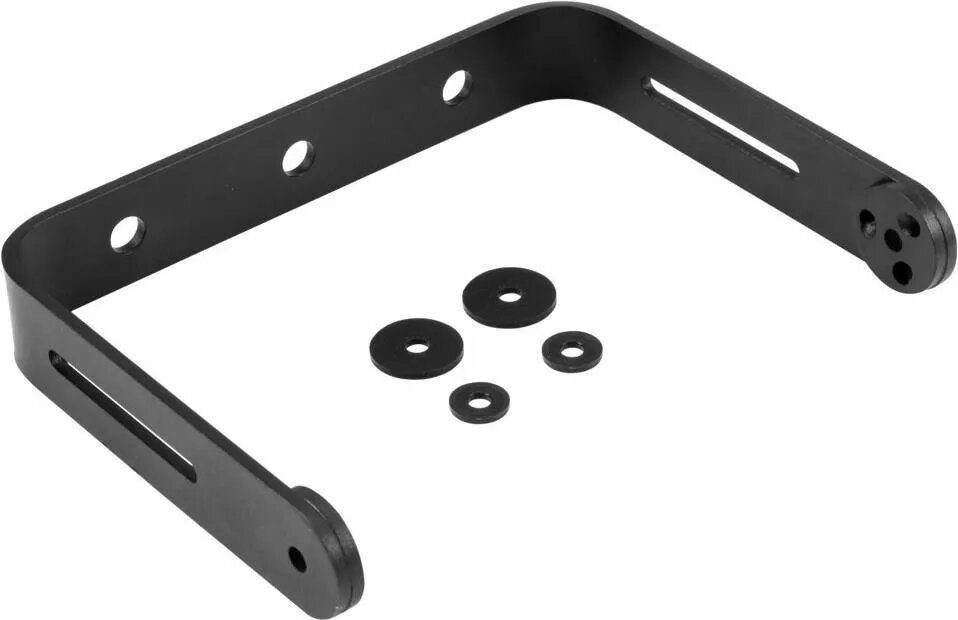

The Mounting U-bracket for EUROLITE CLS-9 QCL RGB/WW is a U-shaped metal bracket engineered to attach directly to the fixture housing of the EUROLITE CLS-9 QCL RGB/WW. It provides a secure mounting point for trusses, lighting stands or ceilings and allows controlled adjustment of the fixture angle. The bracket is designed for a bolt-on fit that aligns with the fixture’s existing mounting points, enabling stable support and repeatable aiming during live events, studio setups or permanent installations.

Advantages

This mounting bracket offers a reliable mechanical connection to the EUROLITE CLS-9 QCL RGB/WW, improving fixture stability and reducing unwanted movement. Its U-shape provides even load distribution and straightforward access to the fixture’s adjustment hardware. The simple bolt-on design simplifies installation and removal, while the material and finish protect against routine wear encountered in event and stage environments.

Suitable for

• Attaching EUROLITE CLS-9 QCL RGB/WW fixtures to truss systems
• Mounting fixtures on lighting stands for concerts and shows
• Fixed ceiling installations in venues and studios
• Temporary rigging for touring and event setups

Key specifications

• Form factor: U-shaped mounting bracket compatible with EUROLITE CLS-9 QCL RGB/WW
• Material: durable metal construction designed for load-bearing support
• Attachment method: bolt-on to fixture housing with adjustable pivot
• Compatibility: intended specifically for use with the EUROLITE CLS-9 QCL RGB/WW fixture
• Finish: protective surface treatment suitable for stage and event use

How to use

Position the U-bracket so its bolt holes align with the corresponding mounting points on the EUROLITE CLS-9 QCL RGB/WW housing. Insert the appropriate bolts and tighten them to the manufacturer’s recommended torque to secure the bracket to the fixture. Attach the bracket to your chosen support—truss, stand or ceiling—using suitable clamps, bolts or hardware rated for the load. Adjust the fixture angle by loosening the pivot fasteners, setting the desired tilt, and re-tightening to lock the position. Verify all fasteners before operation and periodically recheck during prolonged use.

Usage recommendations

For safe installation, use hardware and clamps rated for the combined weight of the bracket and EUROLITE CLS-9 QCL RGB/WW, follow local safety regulations for overhead rigging, and perform regular inspections for wear, corrosion or loosening of fasteners.
