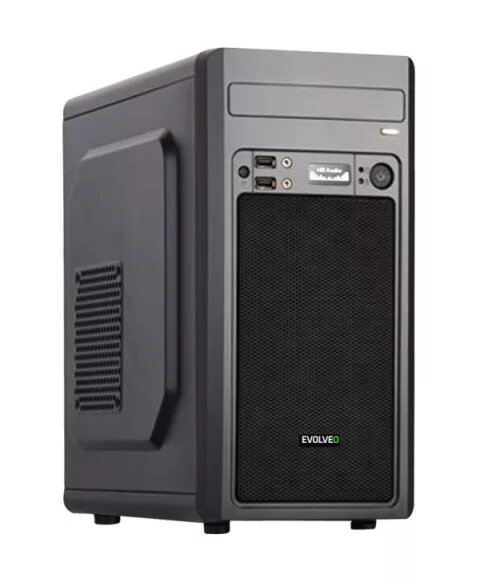

Evolveo EVOLVEO M2 mATX PC case CAEM2 — micro ATX chassis, compact tower

Evolveo EVOLVEO M2 mATX PC case CAEM2 is a compact tower chassis designed for micro ATX motherboards compatible with Intel and AMD platforms. The case supports standard desktop components in a reduced footprint, providing dedicated mounting points for optical drives, hard drives, solid-state drives, expansion cards and multiple cooling fans. Its dimensions and internal layout make it suitable for home or office systems where space efficiency and compatibility with mATX hardware are required.

Advantages

The chassis offers a compact design with support for full-length graphics cards up to 320 mm and CPU coolers up to 140 mm height while maintaining a small external footprint (380 x 186 x 365 mm). It includes an external 5.25" bay, multiple internal drive mounts for both 3.5" and 2.5" storage, and a flexible cooling layout with pre-defined positions for front, side and rear fans. Front I/O provides convenient access to two USB 2.0 ports, one USB 3.0 port and dual audio connectors for headphones and microphone. Expansion is standard with seven expansion slots, allowing typical desktop add-in cards.

Suitable for

• Home desktop builds with limited desk space
• Office PCs requiring reliable small-form-factor enclosures
• Compact gaming or multimedia systems using mATX motherboards
• Systems needing multiple internal drives (HDD + SSD)

Key specifications

• Supported motherboard: micro ATX (mATX) compatible with Intel and AMD platforms
• External bays: 1 × 5.25"
• Internal storage bays: 2 × 3.5" and 2 × 2.5"
• Maximum GPU length: 320 mm
• Maximum CPU cooler height: 140 mm
• Expansion slots: 7 standard slots
• Front I/O: 2 × USB 2.0, 1 × USB 3.0, 2 × audio (headphone & microphone)
• Fan support (pre-configured): 2 × 120 mm front, 1 × 140/120 mm side, 1 × 120 mm rear
• External dimensions (W × D × H): 186 × 380 × 365 mm

How to use

Install a micro ATX motherboard into the designated tray using the supplied standoffs and screws, then fit the power supply and connect power cables to the motherboard and drives. Mount storage devices into the 3.5" and 2.5" bays and secure an optical drive in the 5.25" external bay if required. Install expansion cards into the seven available slots and route cables to maintain airflow. Install fans into the front, side and rear positions as needed to achieve desired cooling performance, and connect front-panel USB and audio cables to the motherboard front-panel header.

Usage recommendations

For balanced airflow, install two 120 mm intake fans at the front and a 120 mm exhaust fan at the rear; consider adding a 140 mm or 120 mm side fan if you plan to use high-performance graphics cards or multiple drives. Use low-profile CPU coolers below 140 mm to ensure compatibility and route cables behind the motherboard area where possible to improve airflow. EVOLVEO LED fans in various sizes and colors are compatible if additional visual or cooling upgrades are desired.
