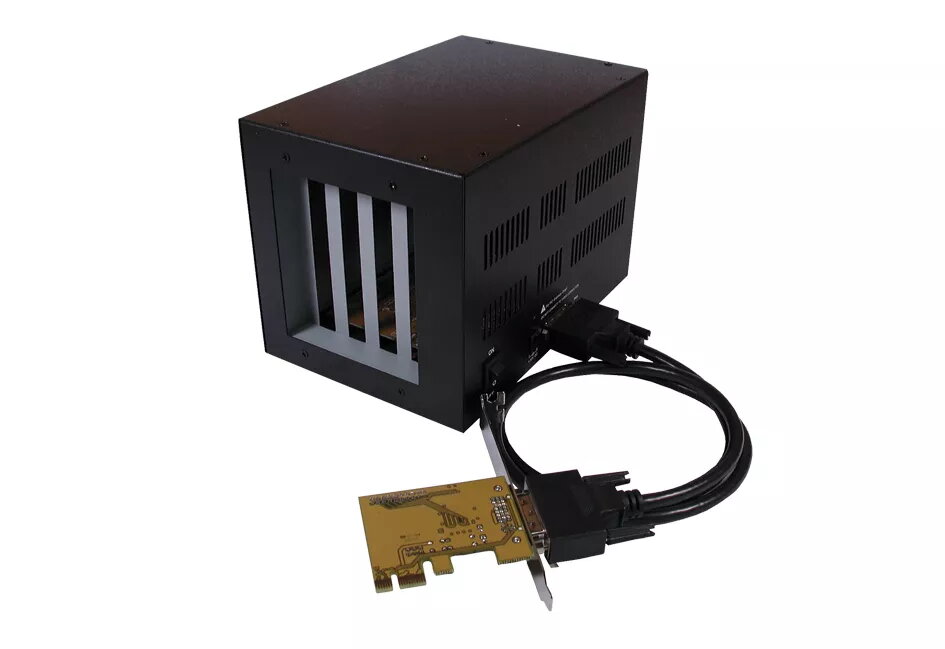

PCI-Express Bus to 4x PCI Slot Expansion Box EXSYS EX-1010

The Exsys PCI-Express Bus to 4x PCI Slot Expansion Box is designed to bridge modern systems with legacy hardware by adding four 32-bit PCI slots through a single PCIe interface. This reliable expansion unit utilizes a Texas Instruments chipset to ensure stable communication and seamless integration of older peripheral cards into contemporary computer setups. Built with a durable black metal case, the device is engineered for demanding environments and provides a robust solution for hardware expansion without requiring a complete system overhaul.

Advantages

This expansion box offers a straightforward method for connecting up to four standard 32-bit PCI add-in cards to a motherboard that only features PCIe slots. Support for both 5V and 3.3V cards ensures broad compatibility with various legacy hardware components. The inclusion of a sturdy metal housing protects internal components during operation in critical industrial or professional applications, while the compact form factor allows the unit to fit efficiently into restricted workspaces.

Suitable for

• Connecting legacy 32-bit PCI expansion cards to modern motherboards with PCIe slots
• Integrating specialized audio, measurement, or communication cards into newer systems
• Upgrading professional computer setups that require traditional PCI bus connectivity

This device may not be suitable for high-power PCI cards that exceed the specified maximum power consumption limit per slot. It is also not designed to support modern PCIe-only graphics cards or peripherals that require direct high-speed lanes beyond the capabilities of standard PCI specifications.

Key specifications

• Host interface: PCIe
• I/O ports: 4x PCI 32-bit (33MHz), 1x DVI
• Power supply: 12V DC via external power adapter
• Dimensions: 206 mm x 137 mm x 143 mm
• Product colour: Black
• Weight: 1.6 kg

To set up the expansion box, connect the included PCIe adapter card to an available PCIe slot on your motherboard and link it to the slot box using the provided cable. Plug the external 12V DC power adapter into a wall outlet to supply power to the unit. Insert your 32-bit PCI add-in cards into the available slots inside the metal housing and secure them properly. Ensure that the system is powered off during hardware installation to prevent electrical damage.

What to consider before purchase

• Verify that your computer motherboard has an available PCIe slot for the host adapter card
• Check the power requirements of your PCI cards to ensure they do not exceed the 200mA limit per slot
• Confirm physical space availability in your work area for the 206mm x 137mm x 143mm metal housing

Usage recommendations: Always use the provided 12V DC power adapter to ensure stable operation and compliance with technical specifications. Handle the metal housing and internal card slots with care during installation to avoid electrostatic discharge or mechanical damage.
