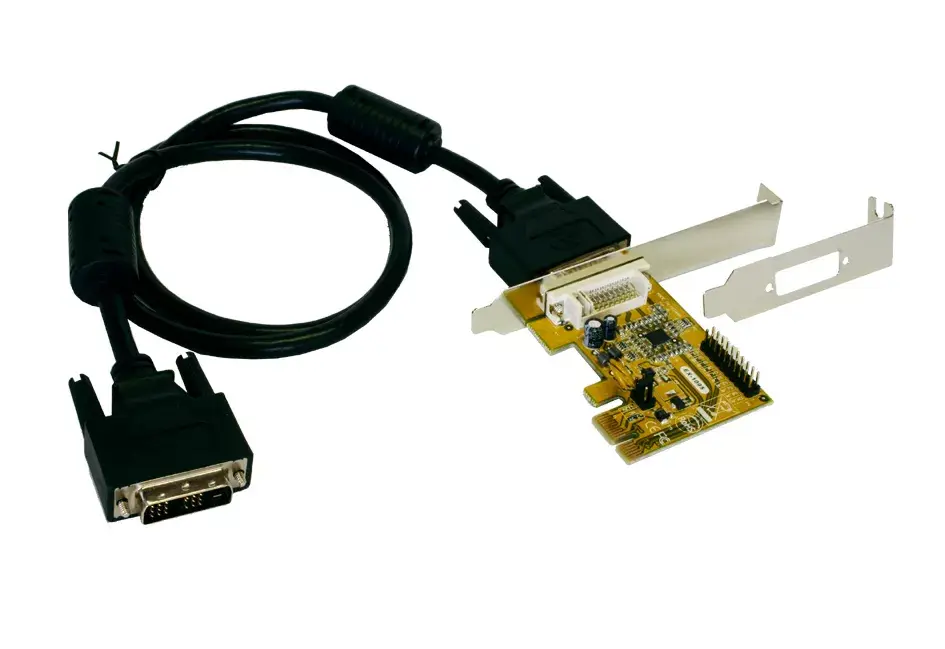

PCI-Express expansion card EXSYS EX-1095

The Exsys PCI-Express expansion card EX-1095 is a dedicated PCI-Express adapter designed to connect compatible expansion products such as the EX-1030, EX-1035, EX-1040, and EX-1045 board systems. Featuring a compact form factor with a width of 45 mm and a depth of 120 mm, this adapter integrates easily into standard system setups while supporting a data transfer rate of 250 Mbit/s. It operates reliably within a temperature range of 0 to 55 °C and handles humidity levels from 5 to 90%. Certified with CE, FC, ROHS, and WHQL, the card provides standardized safety and quality compliance for various professional and technical deployments.

The EX-1095 expansion card offers robust connectivity and reliable signal transmission through support for PCI Express Base Specification Revision 1.0a. It incorporates advanced protocol features such as ECRC support within Advanced Error Reporting and Extended Virtual Channel support to manage Quality-of-Service requirements effectively. Furthermore, Active State Link Power Management, wake events, and beacon support contribute to efficient power control and system responsiveness during operation.

Advantages

The Exsys PCI-Express expansion card ensures seamless integration with designated multi-slot expansion boards, providing a reliable bridge for complex hardware setups. Its support for Advanced Error Reporting with ECRC enhances data integrity, while the extended virtual channel functionality allows for effective prioritization of system traffic. Power efficiency is maintained through active state link management features, and the inclusion of a low-profile bracket enables installation in compact computer enclosures with a height limitation of up to 8 cm.

Suitable for

• Connecting compatible Exsys multi-slot expansion boards like EX-1030 and EX-1035
• Integrating expansion board systems into standard or low-profile desktop computer cases
• Managing prioritized data traffic using extended virtual channel support
• Deployments requiring active state power management and wake event capabilities

This expansion card may not be suitable for general-purpose consumer applications or for use with motherboards that lack available PCI-Express slots. Additionally, it cannot be used as a standalone general expansion card without the specific compatible Exsys expansion products it is designed to interface with.

Key specifications

• Host Interface: PCI-Express
• PCI Express Base Specification: Revision 1.0a
• Data Transfer Rate: 250 Mbit/s
• Supported Protocols: ECRC and Extended Virtual Channel (VC)
• Power Management: Active State Link Power Management, Wake Event, and Beacon support
• Dimensions: 45 mm width x 120 mm depth
• Weight: 500 g
• Operating Temperature Range: 0 to 55 °C
• Operating Humidity Range: 5 to 90%
• Certifications: CE, FC, ROHS, WHQL

To use the Exsys PCI-Express expansion card, first ensure that the host computer system is powered off and disconnected from the electrical outlet. Open the computer case and insert the card firmly into an available PCI-Express slot until it is securely seated, utilizing the included low-profile bracket if the enclosure height is restricted to 8 cm or less. Connect the adapter to the corresponding compatible Exsys expansion product according to its system documentation. Close the computer case, reconnect power, and verify that the operating system recognizes the connected hardware.

What to consider before purchase

• Verify compatibility with your specific Exsys expansion product model, such as EX-1030, EX-1035, EX-1040, or EX-1045
• Check that your computer motherboard has an available PCI-Express slot
• Confirm whether your computer case requires the included low-profile bracket for installation
• Review operating system compatibility with your planned hardware configuration

Usage recommendations: Ensure the installation environment remains within the specified temperature range of 0 to 55 °C and humidity limits of 5 to 90% to maintain optimal performance. Handle the expansion card with standard electrostatic discharge precautions during mounting and connection.
