EXSYS 2-Port USB 3.2 Gen 1 PCIe Card

Name: EXSYS 2-Port USB 3.2 Gen EX-11192
Brand: Exsys
SKU: 5645265
Price: 35.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

EXSYS 2-Port USB 3.2 Gen 1 PCIe Card 3A Renesas

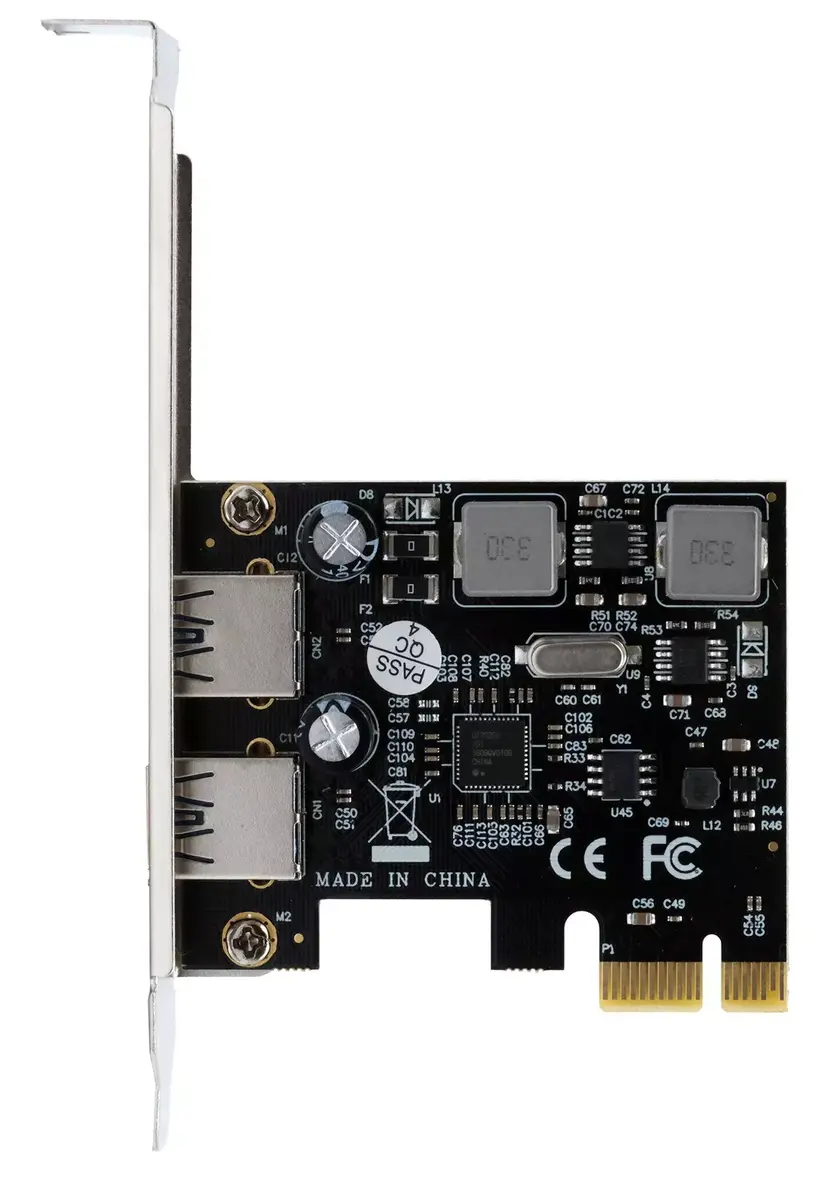

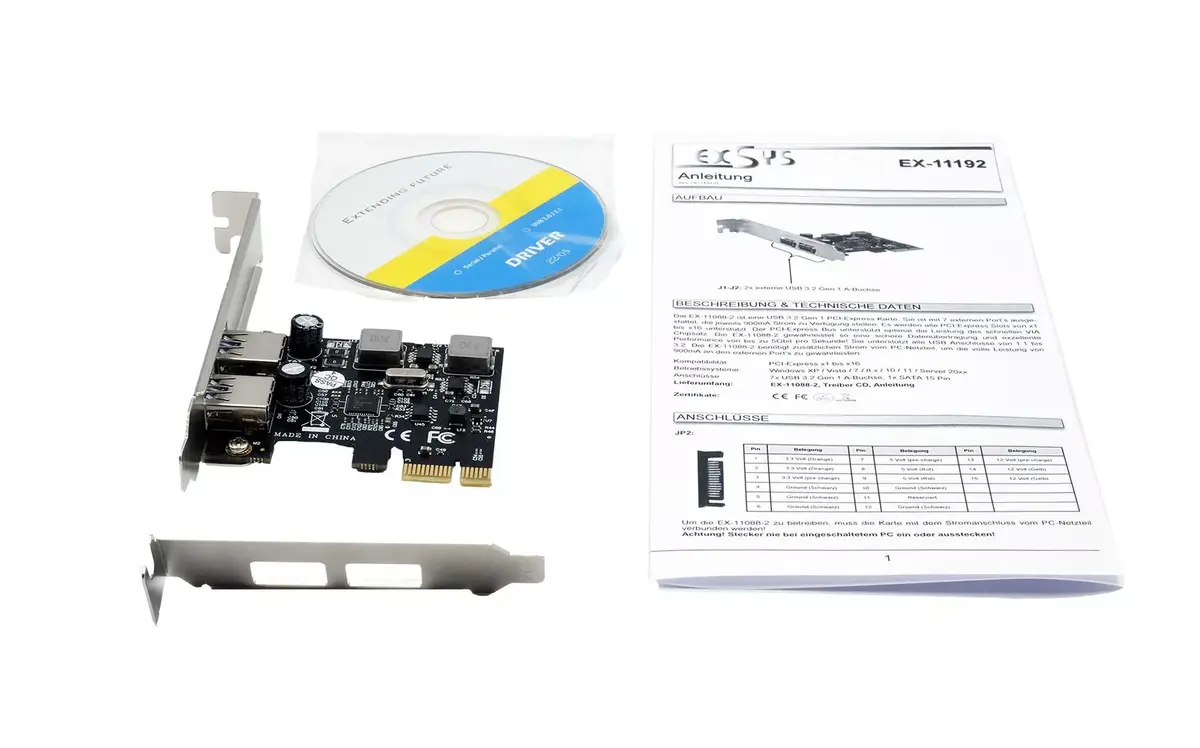

EXSYS 2-Port USB 3.2 Gen 1 PCIe Card Photo 1

EXSYS 2-Port USB 3.2 Gen 1 PCIe Card Photo 2

EXSYS 2-Port USB 3.2 Gen 1 PCIe Card Photo 3

EXSYS 2-Port USB 3.2 Gen 1 PCIe Card Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The EXSYS 2-Port USB 3.2 Gen 1 PCIe card features a PCIe host interface and supports USB 3.2 Gen 1 with a maximum data transfer rate of 5 Gbit/s. It includes a 4-pin Molex supplementary power connector and is compatible with various Windows operating systems.

Available for order: 10 pcs.

Warranty: 2 Years

SKU: 5645265

Manufacturer: Exsys

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.11 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

09.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The EXSYS 2-Port USB 3.2 Gen 1 PCIe Card 3A Renesas (EX-11192) is a PCIe host adapter that adds two external USB 3.2 Gen 1 (SuperSpeed 5 Gbit/s) ports to a desktop, workstation or server. The card supports legacy USB speeds (USB 1.1 and USB 2.0) as well as USB 3.2 Gen 1, provides self-powered operation with a 4-pin Molex supplementary power connector and supplies up to 3.0 A on each output. A low-profile bracket is included for installation in slim cases.

Advantages

The card delivers up to 5 Gbit/s per port for SuperSpeed transfers while maintaining backward compatibility with USB 2.0 and USB 1.1 devices. The additional Molex power input ensures stable current for high-draw devices such as external storage enclosures; each output can supply up to 3.0 A. The included low-profile bracket increases installation flexibility for small form factor systems. The PCIe host interface provides direct connection to the system bus for reliable data throughput.

Suitable for

Connecting external storage enclosures and SSD/HDD docking stations
Attaching webcams, digital cameras and scanners
Adding SuperSpeed USB ports to workstations and desktop PCs
Upgrading servers or small form factor PCs that require additional USB power and bandwidth

Key specifications

Host interface: PCIe (internal)
Output interface: USB 3.2 Gen 1 (SuperSpeed, 5 Gbit/s) with backward compatibility to USB 2.0/1.1
Number of external ports: 2
Maximum per-port current: 3.0 A (requires Molex supplementary power)
Power connector: 4-pin Molex supplementary input for self-powered operation

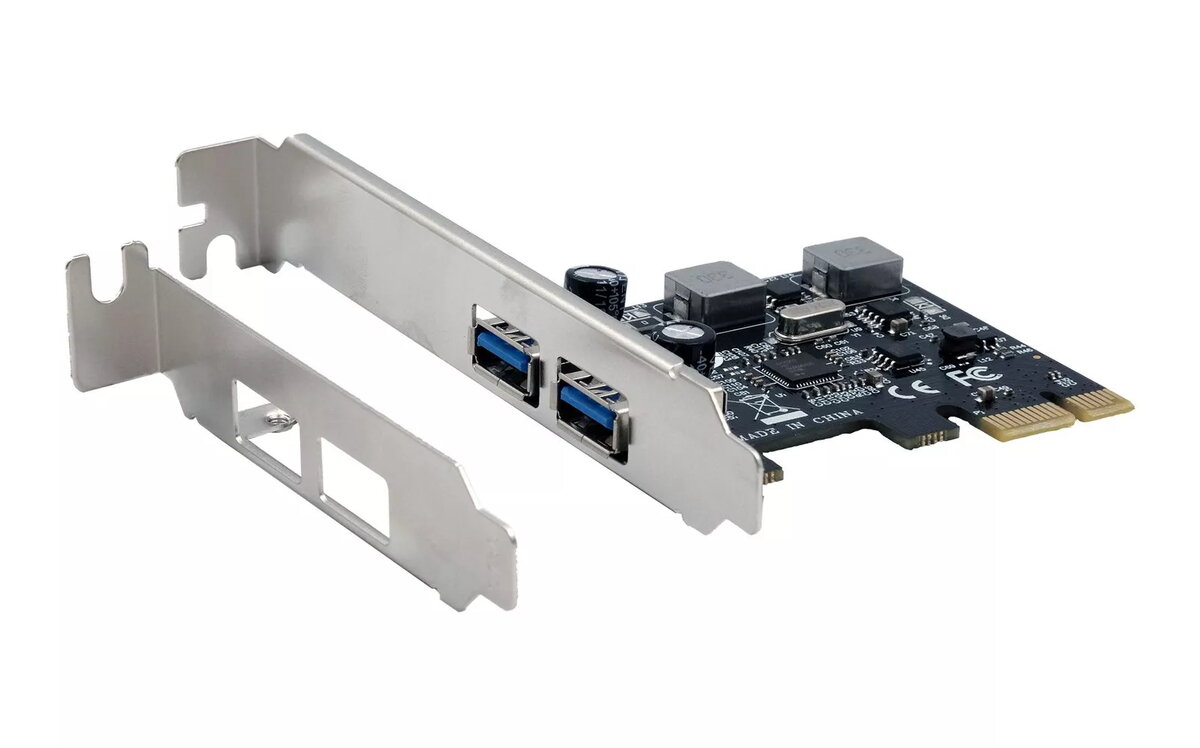

Included accessory: low-profile bracket for narrow PC cases (max height approx. 8 cm)
Weight: 0.111 kg

How to use

Power off the computer, open the chassis and insert the card into an available PCIe slot. Secure the card with the bracket screw; if the chassis is a slim model, replace the full-height bracket with the supplied low-profile bracket. Connect the 4-pin Molex power cable from the system power supply to the card if higher current is required by connected devices. Close the case, power on the system and install drivers if the operating system does not automatically detect the card. After installation, attach USB devices to the external SuperSpeed ports.

Использование и рекомендации

For optimal performance, connect high-bandwidth storage or video capture devices to the USB 3.2 Gen 1 ports and attach the Molex power connector when using power-hungry peripherals. Avoid overloading a single port with devices that require more than the rated per-port current.

Specifications

Host interface:: PCIe
Weight:: 0.111 kg
Internal:: Yes
Output interface:: USB 3.2 Gen 1 (3.1 Gen 1)

All features

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -20 - 85
Operating temperature (T-T):: 0 - 55
Storage relative humidity (H-H):: 5 - 95

Technical details

Sustainability compliance:: Yes
Compliance certificates:: CE, Federal Communications Commission (FCC), RoHS

Ports & interfaces

Host interface:: PCIe
Output interface:: USB 3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 2
Host interface gender:: Male

Other features

Manual:: Yes

Weight & dimensions

Weight:: 0.111 kg
Width:: 65.7 mm
Depth:: 57.05 mm

Power

Supplementary power connectors:: 4-pin Molex

System requirements

Windows operating systems supported:: Windows 8, Windows XP, Windows Vista, Windows 8.1, Windows 7, Windows 11, Windows 10
Mac operating systems supported:: Y
Linux operating systems supported:: Y
Server operating systems supported:: Windows Server 2022, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2008 R2, Windows Server 2003

Design

Internal:: Yes

Performance

Hot-swap:: Yes

Logistics data

Country of origin:: China
Quantity per pack:: 1 pc(s)

Features

Plug and Play:: Yes
Data transfer rate (max):: 5 Gbit/s
Connector 1 gender:: Female
Connector 2 gender:: Female

Processor

Built-in processor:: Yes

Packaging data

Mounting brackets included:: Yes
