USB 2.0 to 1S Serial RS-422/485 Adapter EXSYS

Name: USB 2.0 to 1S Serial EX-1335HMV
Brand: Exsys
SKU: 1082690
Price: 137.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

USB 2.0 to 1S Serial RS-422/485 Adapter EXSYS EX-1335HMV

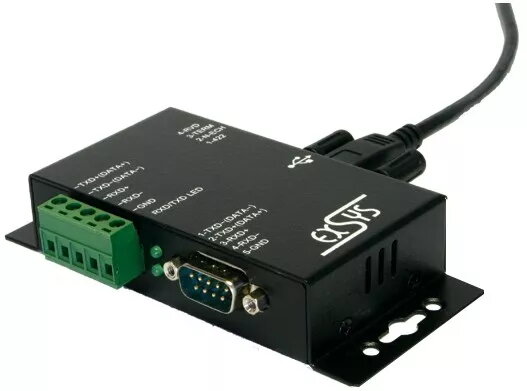

USB 2.0 to 1S Serial RS-422/485 Adapter EXSYS Photo 1

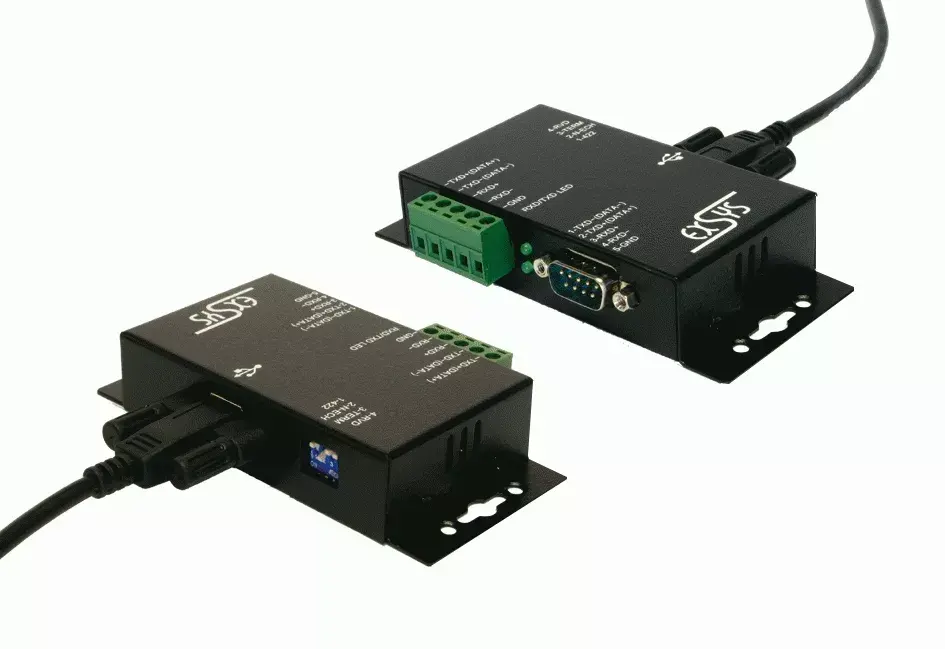

USB 2.0 to 1S Serial RS-422/485 Adapter EXSYS Photo 2

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The EXSYS USB 2.0 to 1S Serial RS-422/485 adapter provides a reliable connection for serial devices via USB. It features a compact design with dimensions of 92.8 mm x 40 mm x 23.1 mm and is powered by an FTDI chipset. The adapter is CE, FC, ROHS, and WHQL certified, ensuring compliance with international standards. Included in the package is a USB cable for easy connectivity. Ideal for industrial applications requiring robust serial communication.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 1082690

Manufacturer: Exsys

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

17.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

17.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

22.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.46 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

22.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The EXSYS EX-1335HMV USB 2.0 to 1S Serial RS-422/485 adapter provides a single high-performance 16C550-type UART compatible RS-422/485 serial port in a compact metal enclosure. It offers 15 kV surge (ESD) protection and 2.5 kV optical isolation to protect connected equipment, supports USB 1.1 and 2.0 hosts, and includes a USB A‑male to B‑male cable (EX-K1552) that can be secured with screws to prevent accidental disconnection. The adapter is powered by an FTDI chipset and is certified CE, FCC, RoHS and WHQL. Dimensions: 92.8 mm x 40 mm x 23.1 mm.

Advantages

The EX-1335HMV combines industrial-grade protection and a standard UART-compatible interface for reliable serial communication over USB without opening the host PC. It supports easy plug-and-play installation on PCs, thin clients or servers, provides hardware-level surge and optical isolation for safety, and comes with a screw-lockable USB cable for secure connections. Certification (CE/FCC/RoHS/WHQL) and compact metal housing make it suitable for industrial deployments.

Suitable for

Connecting RS-422 or RS-485 serial devices to PCs, thin clients or servers
Industrial control and automation equipment integration
Serial device management, monitoring and data logging
Environments that require ESD protection and optical isolation

Key specifications

Interface: 1 × RS-422/485 serial port (9‑pin or terminal block option)
Protection: 15 kV ESD surge protection; 2.5 kV optical isolation
UART: 16C550-type with 16‑byte FIFO buffer
USB: Compatible with USB 1.1 and USB 2.0 hosts; includes EX-K1552 USB A‑male to B‑male cable (2 m) with screw lock
Chipset: FTDI
Certifications: CE, FCC, RoHS, WHQL
Dimensions: 92.8 × 40 × 23.1 mm

How to use

Install the adapter by connecting it to an available USB port on the host using the supplied EX-K1552 cable and secure the B‑connector with its screws. The device is recognized as a COM port by the operating system; I/O addresses and interrupts are managed by the OS and system BIOS (interrupt sharing supported). Attach the RS-422/485 device to the 9‑pin connector or terminal block as required and configure serial parameters (data bits, stop bits, parity) in the host software.

Usage recommendations

For reliable operation, mount the adapter in a stable location and use shielded cabling where possible. When deploying in racks, use the optional EX-6099 DIN-rail kit or appropriate rack-mount hardware. Configure matching serial parameters (7/8 data bits, 1/1.5/2 stop bits, none/even/odd parity) between the host and connected device before starting communication.

Specifications

Host interface:: USB
I/O ports:: 1x USB B-female 1x Terminal Block 1x 9-pin serial RS-422/485
Weight:: 0.4 kg
Product colour:: Black

All features

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Operating temperature (T-T):: 0 - 55

Ports & interfaces

Serial ports quantity:: 1
USB 2.0 ports quantity:: 1
Host interface:: USB

Other features

I/O ports:: 1x USB B-female 1x Terminal Block 1x 9-pin serial RS-422/485
Mac compatibility:: Yes
Cable length:: 2 m
Ports quantity:: 1
Connectivity technology:: Wired
Data transfer rate:: 0.9 Mbit/s

Weight & dimensions

Weight:: 0.4 kg
Height:: 23.1 mm
Width:: 92.8 mm
Depth:: 40 mm

System requirements

Compatible operating systems:: Win 98SE, ME, 2000, Server 2003, XP, Vista Linux Mac OS

Design

Product colour:: Black

Performance

Certification:: CE, FC, ROHS, WHQL
Chipset:: FTDI

Features

Plug and Play:: Yes

Packaging data

Cables included:: USB
