HDMI extender extra digital CA912940 — up to 200 m, supports 1080p

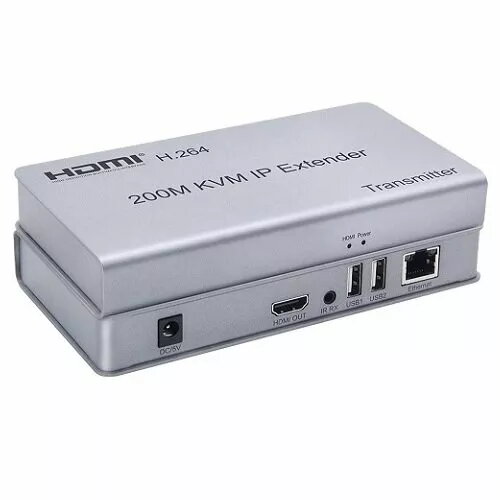

The extra digital CA912940 HDMI extender transmits HDMI video and audio signals up to 200 meters over a single Cat5e or Cat6 cable and supports 1080p resolution. It includes a transmitter (TX) and receiver (RX) pair with KVM support (USB keyboard and mouse), IR control passthrough and the ability to use an Ethernet switch for point-to-multipoint distribution or cascade connections. The device is intended for extending HDMI to TVs, computer monitors, projectors and cameras in installations such as offices, classrooms, retail displays and event venues.

Advantages

The unit supports long-distance HDMI transmission up to 200 m using standard Cat5e/Cat6 cabling, compliant with 802.3 Ethernet standards. It is plug-and-play with no additional software required and has low power consumption (TX max 2.5 W, RX max 2 W). The system supports point-to-point, point-to-multipoint and cascade modes, and provides IR remote control passthrough plus USB ports for keyboard and mouse control (KVM).

Suitable for

• Extending HDMI to distant TVs and monitors in offices and meeting rooms
• Connecting projectors in classrooms and conference halls
• Digital signage and retail displays requiring long cable runs
• Event venues where a single source must feed multiple displays

Key specifications

• Maximum transmission distance (Cat5e/Cat6): 200 m
• Supported resolutions: 480p, 720p, 1080p
• Power input: AC 100–240 V (50/60 Hz) with DC 5 V / 1 A adapters (two included)
• Power consumption: TX 2.5 W (max), RX 2 W (max)
• Operating temperature: 0 °C to 45 °C
• Operating humidity: 10–80% RH
• Size: 163 × 87 × 24 mm; Weight: TX 474 g, RX 474 g
• Interfaces (TX): HDMI-IN, HDMI-OUT, Ethernet (Cat5e/Cat6), USB (to PC), IR-TX, DC 5 V
• Interfaces (RX): HDMI-OUT, Ethernet (Cat5e/Cat6), USB (keyboard/mouse), IR-RX, DC 5 V
• Packing list: Transmitter, Receiver, 2 × 5 V/1 A power adapters, 2 × IR controllers, User manual
• Warranty: 24 months

How to use

Connect the HDMI source to the transmitter’s HDMI-IN and power both units with the supplied 5 V adapters. Run a Cat5e or Cat6 cable from the transmitter’s Ethernet port to the receiver’s Ethernet port; for multiple receivers use an Ethernet switch in between. Connect the receiver’s HDMI-OUT to the display. If KVM control is required, attach the USB port on the transmitter to the source PC and connect keyboard/mouse to the receiver USB ports. Use the IR controllers for remote control passthrough if needed.

Usage recommendations

For best performance use good quality Cat5e or Cat6 cable and keep cable runs within the specified 200 m maximum. Avoid running Ethernet cable alongside high-voltage power lines to minimize interference. Ensure proper ventilation for the transmitter and receiver and operate within the stated temperature and humidity ranges.
