HDMI extender extra digital CA913794 — up to 60 m, supports 1080p

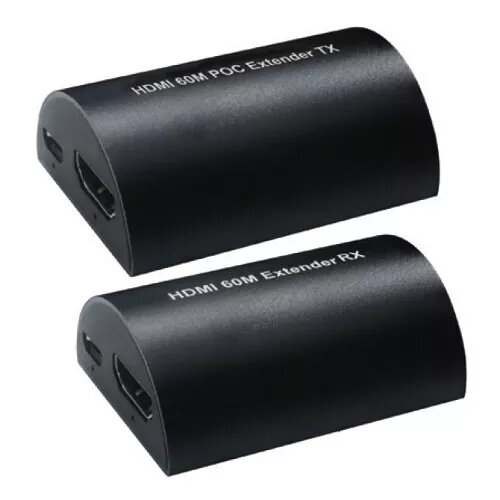

The extra digital CA913794 HDMI extender transmits Full HD (1080p) video signals up to 60 m using a single Cat5e/Cat6 cable. The kit includes a transmitter (TX) and receiver (RX) and allows HDMI cable connections near the devices (up to 10 m on the TX side and up to 15 m on the RX side) while the main link between TX and RX runs over the Cat5e/Cat6 cable. The unit supports PoC (power over cable) so a single 5 V DC power adapter connected to the transmitter can power both ends.

Advantages

The extender preserves 1080p / 60Hz resolution with a maximum bandwidth of 150 MHz and a data rate up to 4.5 Gbps. It enables stable long-distance HDMI transmission up to 60 m with low power consumption and safe operating temperatures. Standard AWG26 HDMI cables are supported for local HDMI connections, and the compact TX/RX units are lightweight and easy to install. The kit includes a micro USB cable for power and comes with a 24-month warranty.

Suitable for

• Connecting TVs and monitors to a distant HDMI source (up to 60 m)
• Projector installations in classrooms or meeting rooms
• Small office or home AV setups requiring simplified cable routing
• Situations where a single power supply for both ends is preferred (PoC)

Key specifications

• Model: extra digital CA913794
• Max CAT5e/CAT6 link length: 60 m
• Supported HDMI resolutions: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
• Bandwidth: 150 MHz; Max data rate: 4.5 Gbps
• HDMI cable support: standard AWG26 (input up to 10 m, output up to 15 m)
• Power: DC 5 V / 1 A (power adapter 100–240 V AC input); PoC supported (power from TX)
• Max TX current: 300 mA; Max RX current: 300 mA
• Operating temperature: -15°C to +45°C; Humidity: 5–90% RH
• Dimensions: 52 x 38 x 17 mm; Weight: TX 24.5 g, RX 24.9 g
• Included: Transmitter (TX) x1, Receiver (RX) x1, Micro USB cable x1

How to use

Connect the HDMI output of your source device to the INPUT port on the transmitter using an HDMI cable (up to 10 m recommended). Connect the CAT5e or CAT6 cable between the CAT5E/6 ports on the transmitter and receiver. Connect an HDMI cable from the OUTPUT port on the receiver to the display (up to 15 m recommended). Plug the 5 V DC power adapter into the transmitter POWER port; if using PoC, this single adapter will supply power to both TX and RX. Ensure the power adapter does not exceed 5 V.

Usage recommendations

Use Cat6 cable where possible for more reliable long-distance transmission and keep HDMI patch cables short (AWG26 recommended) near the devices. Verify that the power adapter provides stable 5 V DC and do not exceed the specified voltage to avoid damage.
