HDMI extender extra digital CA914722 — up to 150 m, 1080p resolution

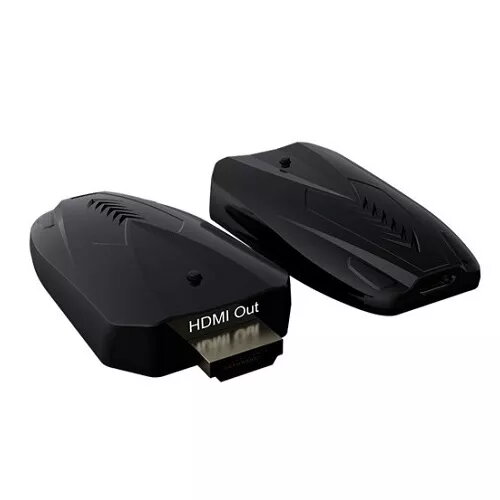

Extra Digital HDMI extender CA914722 transmits Full HD 1080P (1920x1080) / 60Hz video and stereo audio wirelessly between a transmitter and receiver over distances up to 150 m in open space. The kit uses the 5G frequency band and supports HDCP 1.3 and DisplayPort protocol via the Type-C port, allowing video extension where direct cabling is impractical for home AV, meeting rooms, digital signage or surveillance monitors.

Advantages

The device provides wireless HDMI transmission with a maximum open-space range of 150 m and wall-penetration capability up to 40 m. It delivers Full HD 1080P at 60Hz, supports HDCP 1.3 and stereo audio, and operates on the 5G band to reduce interference. Plug-and-play operation requires no additional software. Standard AWG26 HDMI cables support up to 8 m between source/display while preserving 1080P signal quality.

Suitable for

• Home AV systems (TVs, media players)
• Meeting rooms and conference displays
• Digital signage and retail displays
• Surveillance monitors and security setups

Key specifications

• Resolution: Full HD 1080P (1920x1080) / 60Hz
• HDCP: 1.3
• Wireless band: 5G
• Max transmitter–receiver distance: 150 m (open space), up to 40 m through walls
• Max bandwidth: 148.5 MHz
• Max baud rate: 1.485 Gbps
• Input/output HDMI cable distance (1080P, AWG26): up to 8 m
• Supported audio: stereo
• Network protocols: IEEE 802.11 a/n
• Transmitter current: max 450 mA; Receiver current: max 320 mA
• Operating temperature: -15 °C to +55 °C
• Dimensions: 75 x 39 x 12 mm; Weight: TX 19 g, RX 19 g
• MPN: CA914722; EAN: 9990000914722
• Warranty: 24 months

How to use

Connect the transmitter (TX) to the HDMI source and power it via the supplied USB Type-A to USB-C cable. Connect the receiver (RX) to the display and power it in the same way. Use the included HDMI adapters where required. Place transmitter and receiver within the recommended distance and power on both units; they pair and start transmitting automatically without additional software. For wired source or display connections use AWG26 HDMI cables up to 8 m to maintain 1080P output.

Usage recommendations

For best performance keep a clear line of sight between transmitter and receiver when possible and avoid placing devices near strong 5G interferers. If walls or obstacles are present, position units to minimize intervening dense materials. Use quality AWG26 HDMI cables for source and display connections to preserve signal integrity up to 8 m.
