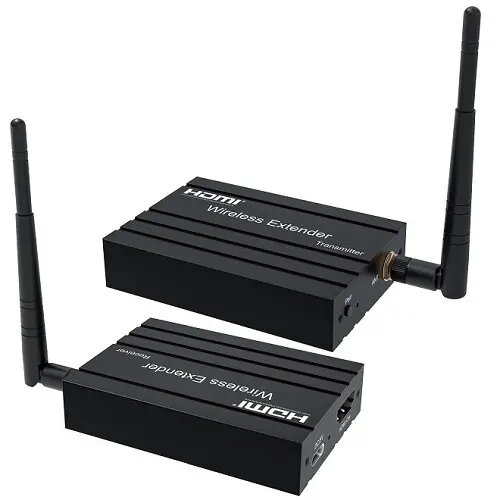

HDMI extender extra digital CA915071 — range 200 m, supports 1080p

HDMI wireless extender for Full HD 1080P (1920x1080) at 60Hz, using 5G modules to provide high-speed wireless communication between consumer electronics, computers and mobile devices. The device combines high bandwidth and error correction to transmit HD video, offering up to 200 m line-of-sight range (up to 150 m in typical open-area use) and the ability to pass signals through walls up to 45 m. The extender supports HDCP 1.3 and TMDS clocks up to 148.5 MHz, and with a standard AWG26 HDMI cable ensures reliable 1080P signal over up to 8 m.

Advantages

The unit operates in the 5 GHz band to reduce interference from common wireless networks and provides external high-gain antennas for improved reception and stability. Full metal casing improves heat dissipation and shielding against interference. Plug-and-play operation requires no additional software, making setup straightforward. The kit includes both transmitter and receiver with USB Type-A to USB-C power cables and HDMI adapters for quick installation.

Key specifications

• Resolution: Full HD 1080P (1920x1080) / 60Hz
• Supported HDCP version: 1.3
• Maximum TMDS clock / bandwidth: 148.5 MHz / 1.485 Gbps
• Max distance TX↔RX: 200 m (open space), up to 45 m through walls
• Effective open-area distance often cited: up to 150 m
• Input/output HDMI cable distance (1080P, AWG26): up to 8 m
• Supported audio: stereo
• Network protocols: IEEE 802.11 a / n (5 GHz)
• Operating current: TX 400 mA; RX 400 mA
• Operating temperature: -15°C to +55°C
• Dimensions: 76 x 49 x 15 mm; antenna length 108 mm
• Weight: TX 75 g; RX 75 g
• Package contents: Transmitter (TX), Receiver (RX), 2 × USB-A to USB-C power cables (1 m), 2 × HDMI (M)–HDMI (F) adapters (0.2 m), User Guide
• Warranty: 24 months

How to use

Connect the transmitter to the HDMI source using a standard AWG26 HDMI cable (recommended maximum length up to 8 m for 1080P). Plug the receiver into the display with an AWG26 HDMI cable. Power both units via the supplied USB Type-A to USB-C cables. Position the external antennas for best line-of-sight and ensure devices operate in the 5 GHz band to minimize interference. After powering, the devices work in plug-and-play mode without additional drivers or software.

Recommendations

For optimal performance, place transmitter and receiver with clear line of sight when possible and avoid dense obstacles; use high-quality AWG26 HDMI cables for input/output connections and keep cable lengths within the specified 8 m for reliable 1080P transmission.
