HDMI Extender extra digital CA916030 — up to 200 m, supports 1080p

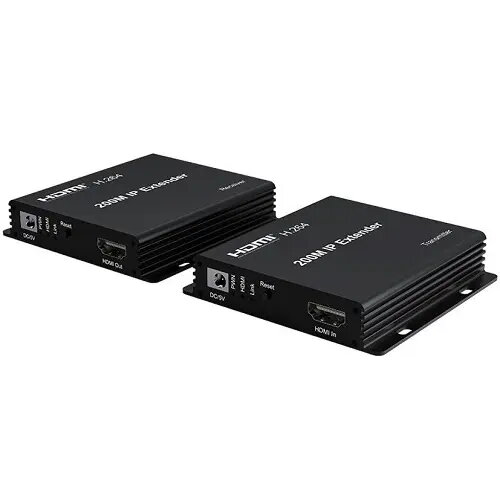

The extra digital CA916030 HDMI Extender transmits HDMI video and audio signals over a single Ethernet cable (Cat5e or Cat6) up to 200 meters and supports 1080p resolution with H.264 decoding. The kit includes a transmitter (TX) and receiver (RX) with plug-and-play hardware design and works with standard Ethernet switches to enable point-to-point, point-to-multipoint and cascade connection topologies for distributed displays, presentations and AV installations.

Advantages

The device uses TCP/IP over IEEE802.3 Ethernet and allows long-distance HDMI transmission without additional software. Pure-hardware design ensures simple plug-and-play setup. It supports multiple connection modes (point-to-point, point-to-multipoint and cascade) and is compatible with TVs, computer monitors, projectors and cameras. Power is supplied by included 5V/1A adapters for both transmitter and receiver.

Suitable for

• Conference rooms and presentation systems
• Digital signage and retail displays
• Classroom and lecture hall AV setups
• Control rooms and monitoring stations
• Multi-screen installations using Ethernet switches

Key specifications

• Maximum transmission distance (Cat5e/Cat6): 200 m
• Supported HDMI resolutions: 480p, 720p, 1080p
• Decoding: H.264
• Power input: AC 100–240V (50/60Hz) → DC 5V / 1A (per unit)
• Max working current: TX 350 mA, RX 450 mA
• Operating temperature: 0°C to 45°C
• Operating humidity: 10–80% RH (non-condensing)
• Dimensions (each): 90 × 91 × 19 mm; Weight: TX 120 g; RX 120 g
• Interfaces (TX): HDMI-IN, ETHERNET (Cat5e/Cat6), DC 5V, RESET, indicator LEDs
• Interfaces (RX): HDMI-OUT, ETHERNET (Cat5e/Cat6), DC 5V, RESET, indicator LEDs
• Warranty: 24 months

How to use

Connect the HDMI source to the transmitter’s HDMI-IN port and the display to the receiver’s HDMI-OUT port. Link the transmitter and receiver with a Cat5e or Cat6 Ethernet cable directly for point-to-point use or via an Ethernet switch for point-to-multipoint or cascade configurations. Power both units with the supplied 5V/1A adapters. Use the RESET button to restart a unit if necessary; monitor the PWR, HDMI and LINK LEDs to verify power, signal and network connection.

Usage recommendations

For reliable operation at longer distances use good-quality Cat6 cable, keep cable runs away from strong electromagnetic interference sources, and ensure network switches support full-duplex Gigabit Ethernet where multiple receivers are used. Verify compatibility of connected displays with the supported resolutions (480p/720p/1080p).
