HDMI extender extra digital CA916047 — up to 150 m, supports 1080p resolution

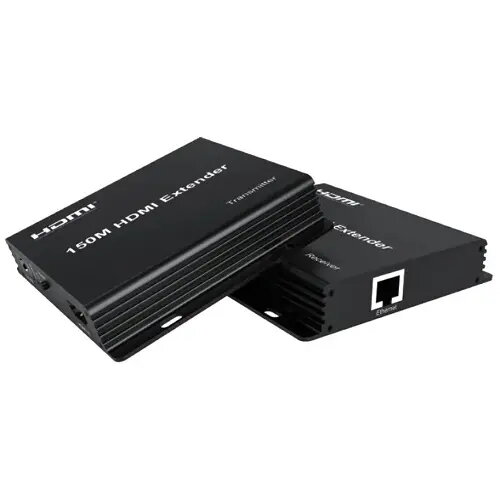

The extra digital HDMI extender CA916047 transmits uncompressed 1080p HDMI video and audio up to 150 meters over a single Cat5e/Cat6 Ethernet cable. It consists of a transmitter (TX) and receiver (RX) pair with plug-and-play hardware design, suitable for connecting a source device to a distant display where direct HDMI cabling is impractical.

Advantages

This HDMI extender provides lossless transmission without compression, supports both point-to-point and cascade connection modes, and maintains full 1080p output across long distances. It uses low power, operates within a safe temperature range, and requires no additional software for installation. The device is compatible with TVs, computer monitors, projectors and cameras.

Suitable for

• Conference rooms and meeting spaces
• Classrooms and lecture halls
• Digital signage and retail displays
• Home theatre setups where long cable runs are needed
• AV installations with projectors and cameras

Key specifications

• Model: extra digital CA916047 (TX + RX)
• Maximum extender range (Cat5e/Cat6): 150 m
• Supported HDMI resolutions: 480p, 720p, 1080p
• Audio format: LPCM
• Power: AC 100–240V (50/60Hz) input; DC 5V/1A adapters (×2 included)
• Max bandwidth: 148.5 MHz; max baud rate: 1 Gbps
• Input HDMI cable recommended max length: up to 10 m (AWG26)
• Output HDMI cable recommended max length: up to 15 m (AWG26)
• Max working current: 380 mA
• Operating temperature: 0°C to 45°C
• Operating humidity: 10–80% RH (non-condensing)
• Dimensions (each unit): 90 × 91 × 19 mm; Weight: TX 120 g, RX 120 g
• Transmitter ports: DC 5V, PWR indicator, HDMI indicator, LINK indicator, RESET, HDMI-IN, ETHERNET (Cat5e/Cat6)
• Receiver ports: DC 5V, PWR indicator, HDMI indicator, LINK indicator, RESET, HDMI-OUT, ETHERNET (Cat5e/Cat6)
• Warranty: 24 months

How to use

Connect the HDMI source (PC, media player, camera) to the transmitter HDMI-IN port and the display device (TV, monitor, projector) to the receiver HDMI-OUT port. Link the transmitter and receiver using a single Cat5e or Cat6 cable up to 150 m. Plug in the included DC 5V/1A power adapters for both TX and RX, then power on the source and display. Use the RESET button if the connection needs to be reinitialized. No software installation is required.

Usage recommendations

For reliable performance use good-quality Cat5e or Cat6 cable with proper terminations, avoid running the Ethernet cable alongside high-voltage power lines, and keep HDMI patch cables within the recommended lengths (input up to 10 m, output up to 15 m). Ensure operating environment stays within specified temperature and humidity ranges.
